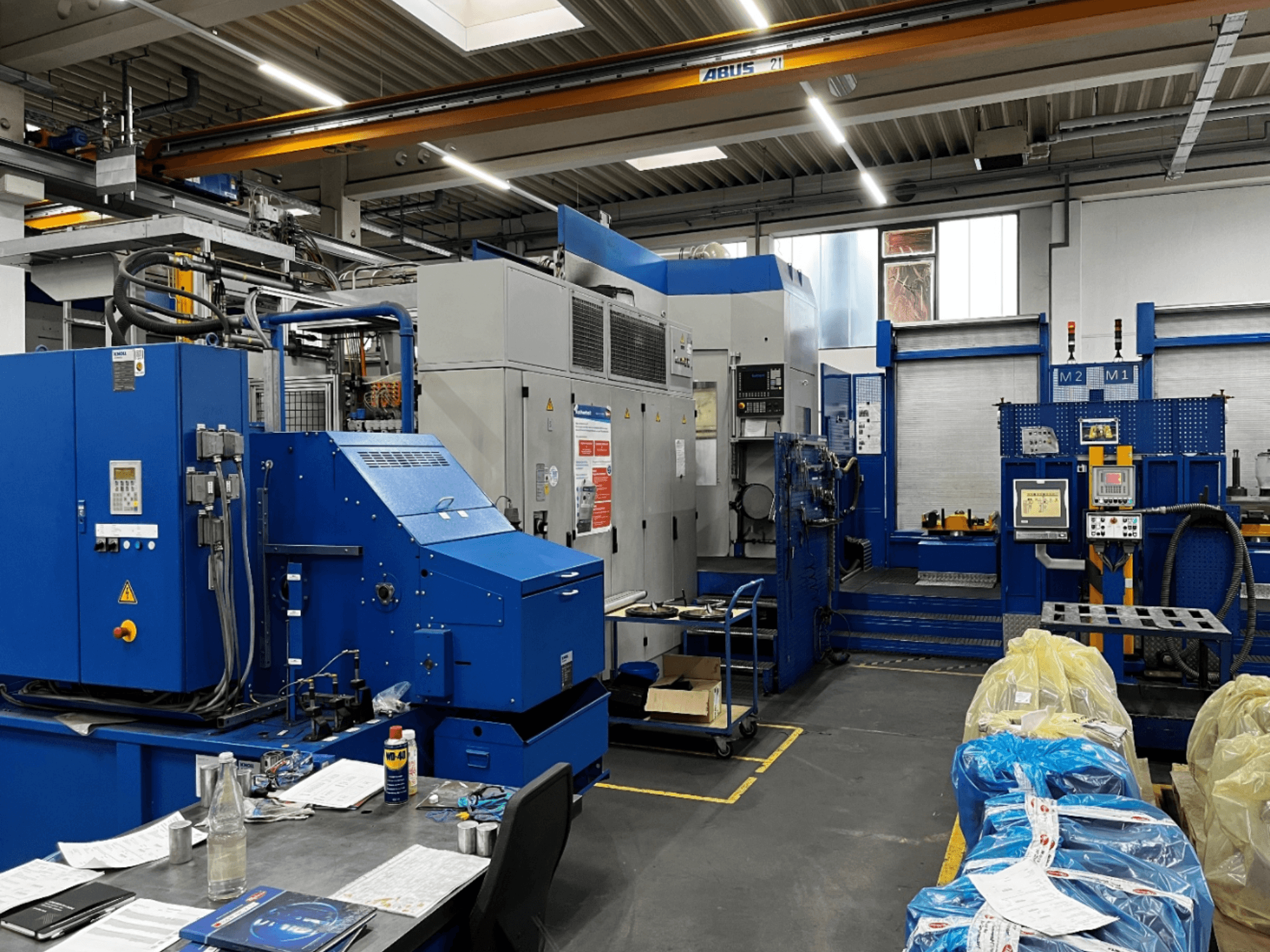

This 4-axis BW MCX750 M1 was manufactured in 2006. It features an impressive X-axis travel of 1100 mm, Y-axis travel of 900 mm, and Z-axis travel of 1250 mm. The machine has a maximum pallet load of 1500 kg and a magazine capacity of 144 positions. The machine is linked to a BW MCX750 M2 (2011) and a pallet magazine and set-up station (12 positions + 2 positions per machine + 2 set-up stations) https://www.gindumac.de/produkt/bw-mcx750-m2_DE-MIL-BWX-2011-00001 Contact us for further details.
Overview
- brand: BW
- year: 2006
- MODEL: MCX750 M1
- production hours: 27713
- application type: Milling
- Location: Germany
- machine type: Horizontal Machining Centre
- Available from: 01/09/2026
- control unit brand: SIEMENS
Technical Information - BW MCX750 M1
Control Unit
- Control Brand: SIEMENS
- Control Model: 840D
Dimensions
- Machine Height: 4000 mm
- Machine Length: 6000 mm
- Machine Weight: 12000 kg
- Machine Width: 6000 mm
- Table Load: 1500 kg
Movement
- Number of Axes: 4
- X-axis Travel: 1100 mm
- Y-axis Travel: 900 mm
- Z-axis Travel: 1250 mm
Technical Specification
- Max. Tool Weight: 60 kg
- Number of Tools: 144
- Spindle Power: 50 kW
- Spindle Speed: 7500 RPM
- Taper Size: SK 50
Additional Information
Maintenance contract: Yes
Utilization: 70%
Shifts: 2
Pallet size: 800 x 800 mm
Drive power: 50 kW
Maximum torque: 1650 Nm
Number of revolvers/magazines: 1
Magazine capacity: 144 positions
Maximum tool length: 750 mm
Maximum tool diameter: 350 mm
Operating hours: 27713 h
Additional equipment
OPTIONAL: Tooling package
Group 1: approx. 700–750 tools (Ø up to 124.9 mm)
Group 2: approx. 100–150 tools (Ø 125–224.9 mm)
Group 3: approx. 50 tools (Ø 225–350 mm)
Recent replacement of the X-spindle and the rotary seal on the IKZ (internal cooling through spindle)
Geometry readjusted
(done by official BW )
The machine is linked to a BW MCX750 M2 (2011) and a pallet magazine and set-up station (12 positions + 2 positions per machine + 2 set-up stations)
https://www.gindumac.de/produkt/bw-mcx750-m2_DE-MIL-BWX-2011-00001
