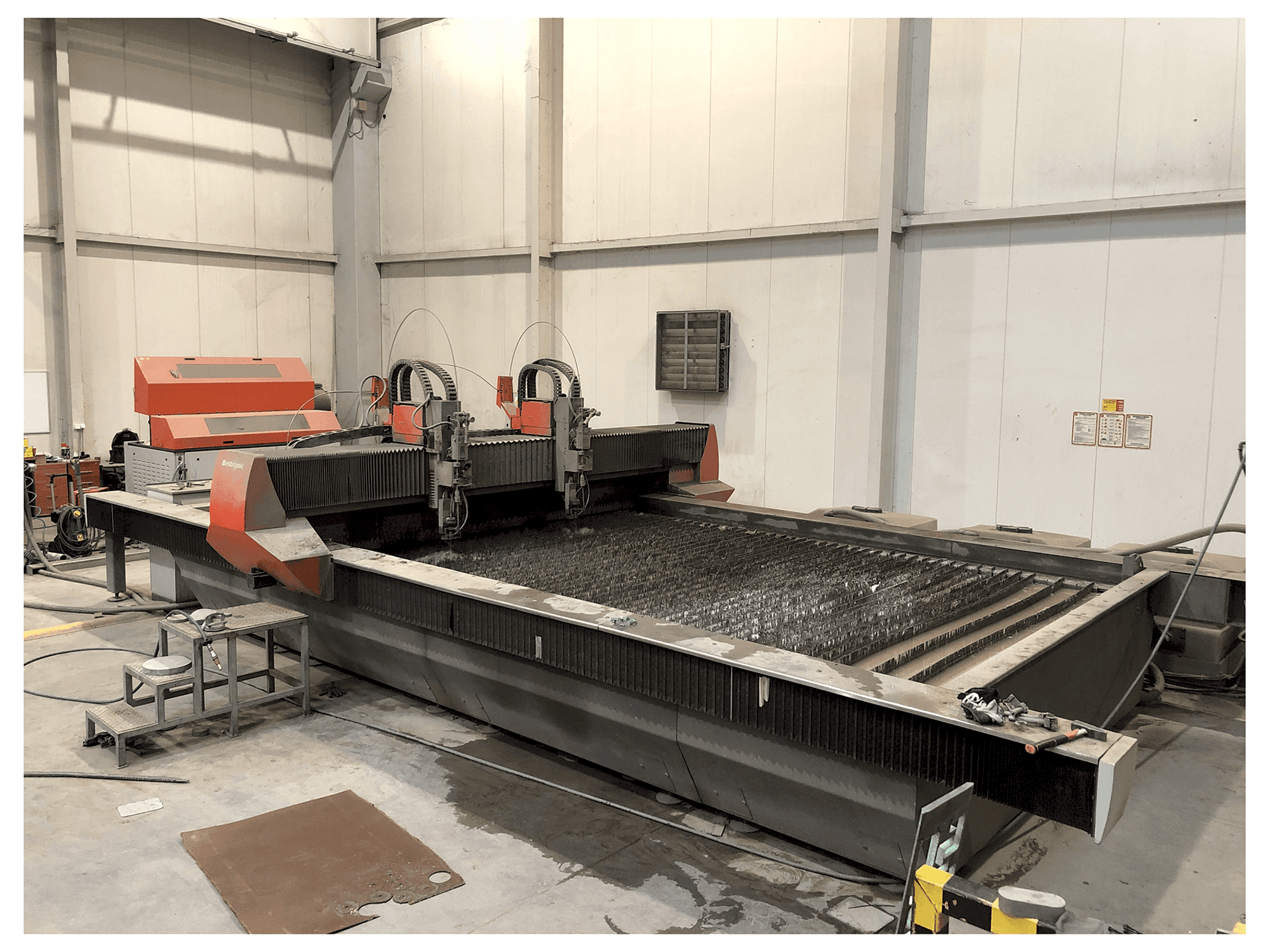

Front view of Bystronic ByJet Flex 6030  machine

Bystronic ByJet Flex 6030

Bystronic - ByJet Flex 6030

2015

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This Bystronic ByJet Flex 6030 Waterjet cutting machine was made in the year 2015 and has 18986 working hours. It is equipped with a Bystronic ByMotion CNC ByJet control unit. The machine has a Max. cutting speed of 50 m/min and a Max. pressure of 5300 bar. The machine is in very good condition. Full documentation is available.

Overview

  • brand: Bystronic
  • year: 2015
  • MODEL: ByJet Flex 6030
  • production hours: 18986
  • application type: Water Cutting
  • Location: Poland
  • machine type: Waterjet cutting machines
  • availability: Sold
  • control unit brand: Bystronic
  • GINDUMAC ID: PL-WAT-BYS-2015-00002

Technical Information

General Data

  • Measurements width: 11100 mm
  • Measurements depth: 7100 mm
  • Measurements height: 2750 mm

Control Unit

  • Brand: Bystronic
  • Model: ByMotion CNC ByJet

Table

  • Table load: 27000 kg

Media

  • Main electronic connection: 3 x 400V / 50Hz

    Additional Equipment

    • - ByVision operating terminal
    • - Light barrier
    • - Cutting carriage for second cutting head
    • - 2 x 2D cutting head including height sensor
    • - ByPump Ultra+ with oil/air heat exchanger
    • - Collection of parts
    • - Automatic sludge removal
    • - Water leveling control
    • - Abrasive container 300 kg
    • - PositionPointer

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Cutting area: x axis – 6084 mm, y axis - 3084 mm, z axis - 320 mm
        • - 2 pcs 2d cutting heads
        • - Max. Cutting speed 50 m/min
        • - Positioning accuracy (pa) +/- 0. 05 mm
        • - Repeatability of positioning (ps) +/- 0. 025
        • - Tank capacity 15000 l
        • - Pump: bystronic bypump ultra+
        • - Max. Pressure: 5300 bar
        • - Drill spindle for cutting carriage
        • - Drill spindle
      • Qualitative Machine Benefits:
        • - Machine in very good condition
        • - All documentation available
        • - Full-service history available

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
