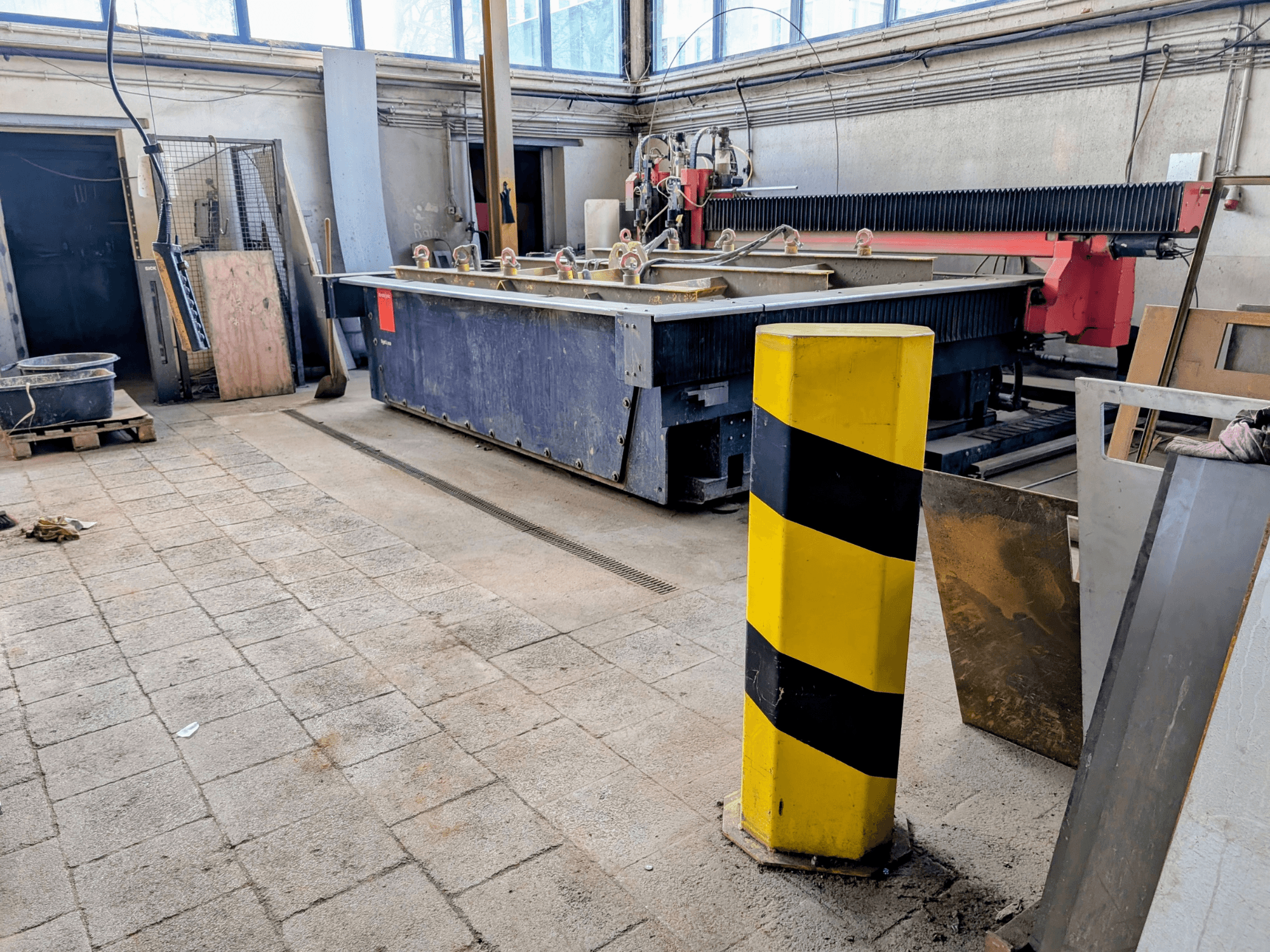

This 5-axis Bystronic Byjet L 2030 was manufactured in 2004. It features a maximum cutting speed of 30 m/min and a maximum material thickness of 200 mm. The machine has a substantial workpiece weight capacity of 4,740 kg and a load capacity on the cutting grate of 790 kg/m². If you are looking to get high-quality waterjet cutting capabilities, consider the Bystronic Byjet L 2030 machine we have for sale. Contact us for further details.
Overview
- brand: Bystronic
- year: 2004
- MODEL: Byjet L 2030
- production hours: 18118
- application type: Cutting
- Location: Germany
- machine type: Waterjet Cutting Machine
Technical Information - Bystronic Byjet L 2030
Dimensions
- Machine Weight: 40000 kg
- Table Load: 790 kg
Movement
- Number of Axes: 5
- X-axis Travel: 3000 mm
- Y-axis Travel: 2000 mm
- Z-axis Travel: 300 mm
Additional Information
Machine Tolerance (VDI 3441): ±0.05 mm/m
Repetition Tolerance: ±0.025 mm/m
Max. Simultaneous X/Y Positioning Speed: 56 m/min
Max. Cutting Speed: 30 m/min
Max. Material Thickness (loadable): 200 mm
Max. Workpiece Weight (flat part): 4,740 kg
Cassette Size (with integrated grate): 2000 x 3000 mm
Grate Slat Load Capacity (standard): 250 kg
Machine Weight (with options/aggregates): 11,300 kg
Machine Weight (fully loaded with steel): 40,100 kg
CNC Rotary Axis: Max pipe length 1700 mm, max diameter 200 mm (with centers) / 500 mm (with custom jaws), max weight 500 kg
Drilling Axis: Max diameter 3 mm, max depth 70 mm, speed 2600 U/min
Pump Type: Bypump 50 APC
Max. Dynamic Pressure: 3800 bar
Connected Load (Total): 61 KVA
Input Voltage: 3 x 400 V, 50/60 Hz
Operating Hours: 18,118.3 hours
Additional equipment
Lifting Yoke Max. Load (single cassette): 4,500 kg
Cooling Unit: WKL 140 S3
