- BYSTRONIC BySmart Fiber 3015 6KW Laser Cutting Machine

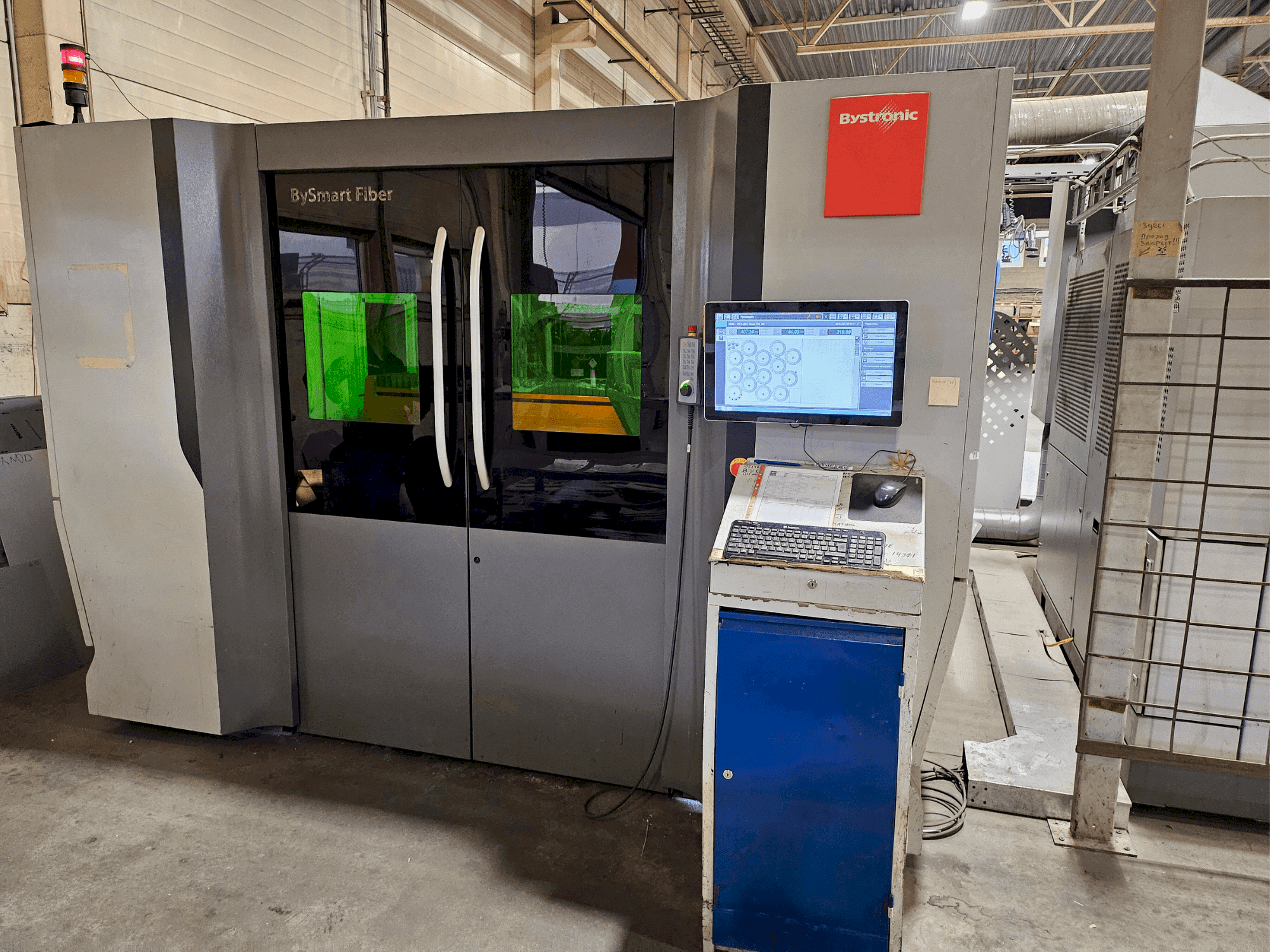

This BYSTRONIC BySmart Fiber 3015 6KW Laser Cutting Machine was manufactured in 2019. It is like new with only 6387h of operation. The cutting head was replaced with a new SSC V2.2 HLC8 (last model) end of 2023. In addition 2 modules were replaced. In total € 80.000 invested. The fiber laser has a laser power of 6kW. In production the machine can run with a sheet size of x = 3000mm and y = 1500 mm. See photo and video gallery for more impressions. Original tech specs sheet as PDF attached below.
Overview
- brand: Bystronic
- year: 2019
- MODEL: BySmart Fiber 3015 6KW
- production hours: 6387
- application type: Cutting
- Location: Estonia
- machine type: Fiber Laser Cutting Machine
- availability: Immediately
Technical Information - Bystronic BySmart Fiber 3015 6KW
General Data
- Measurements width: 10495 mm
- Measurements depth: 6903 mm
- Measurements height: 2880 mm
- Machine weight: 11800 kg (with chiller)
Movement
- X-AXIS Movement: 3106 mm
- Y-AXIS Movement: 1582 mm
- Z-AXIS Movement: 100 mm
Workpiece
- Workpiece weight: 1100 kg
Max Material thickness
- Steel: 25 mm
- Stainless steel: 30 mm
- Aluminum: 30 mm
Additional Information
- Technical Machine Benefits:
- - Sheet size x: 3000mm
- - Sheet size y: 1500mm
- - Total electric consumption with exhoust chiller 30kw
- - Laser source fiber 6000w
- Qualitative Machine Benefits:
- - Max. Cutting thickness: steel 25mm // stained steel 30mm // aluminium 30mm // copper 12mm // brass 15mm
- - Laser like new now very good shape
- - New cutting head ssc v2. 2 hlc8 last model from 10. 2023, replaced 09. 2023 // 2 modules replaced 08. 2023 // total investment: € 80,000
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
