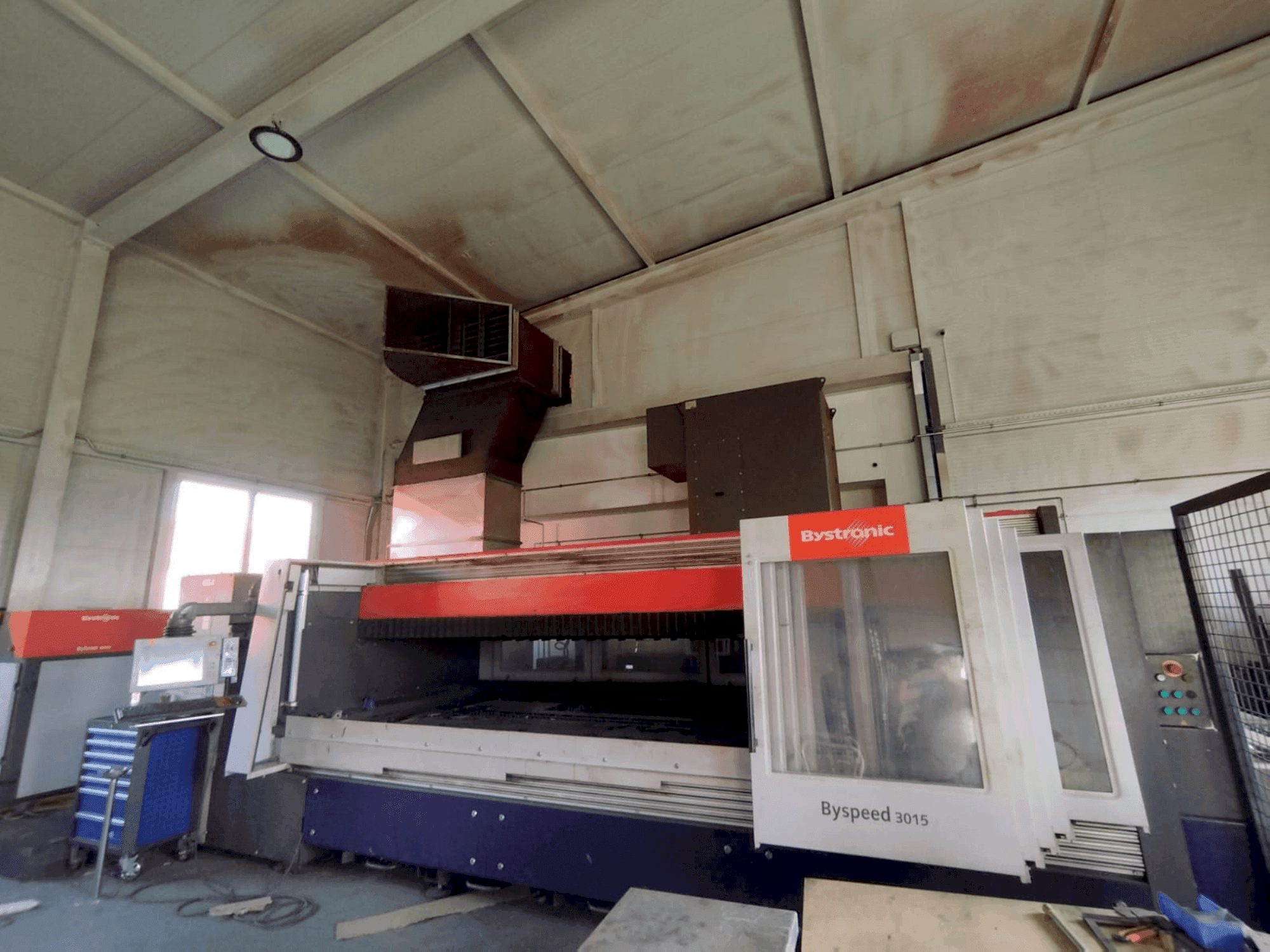

Front view of Bystronic BySpeed 3015  machine

Bystronic - BySpeed 3015SI-CUT-BYS-2009-00001

37,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This CO2 laser cutting machine was manufactured in 2009. It features a powerful 4.4 kW CO2 laser, capable of cutting through structural steel up to 25 mm thick and a work table of 3000 x 1500 mm. Ideal for handling diverse materials, it offers high-speed cutting with a maximum speed of 50 m/min. Consider the Bystronic BySpeed 3015 machine we have for sale. For more information about this CO2 laser cutting machine, please reach out to us.

Overview

  • brand: Bystronic
  • year: 2009
  • MODEL: BySpeed 3015
  • application type: Cutting
  • Location: Slovenia
  • machine type: CO2 Laser Cutting Machine
  • availability: Immediately

Technical Information - Bystronic BySpeed 3015

Main drive

  • Laserpower: 4.4 kw
  • Laser type: CO2 Laser

Movement

  • X-AXIS Movement: 3048 mm
  • Y-AXIS Movement: 1524 mm
  • Z-AXIS Movement: 100 mm

Max Material thickness

  • Steel: 25 mm
  • Stainless steel: 20 mm
  • Aluminum: 12 mm

    Additional Equipment

    • - Compressor
    • - Storage tank
    • - Ventilation

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Wavelength: 10. 6 μm
        • - Laser beam diameter: 20 mm
        • - Simultaneous x/y axis positioning speed: 30 m/s²
        • - Maximum radial acceleration: 10 m/s²
        • - Maximum cutting speed: 50 m/min
        • - Maximum sheet thickness (brass): 3 mm
        • - Maximum sheet thickness (copper): 3 mm
        • - Maximum sheet thickness (titanium): 3 mm
        • - Maximum weight of the workpiece: 890 kg
        • - Capable of cutting various materials with different thicknesses
      • Qualitative Machine Benefits:
        • - High positioning accuracy and speed
        • - Comprehensive additional equipment for efficient operation
        • - Total required power: 65 kw
        • - Power supply: 3×400 v; 50 hz

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
