- ➤ Used Bystronic BySprint Fiber 4020 | Fiber Laser Cutter

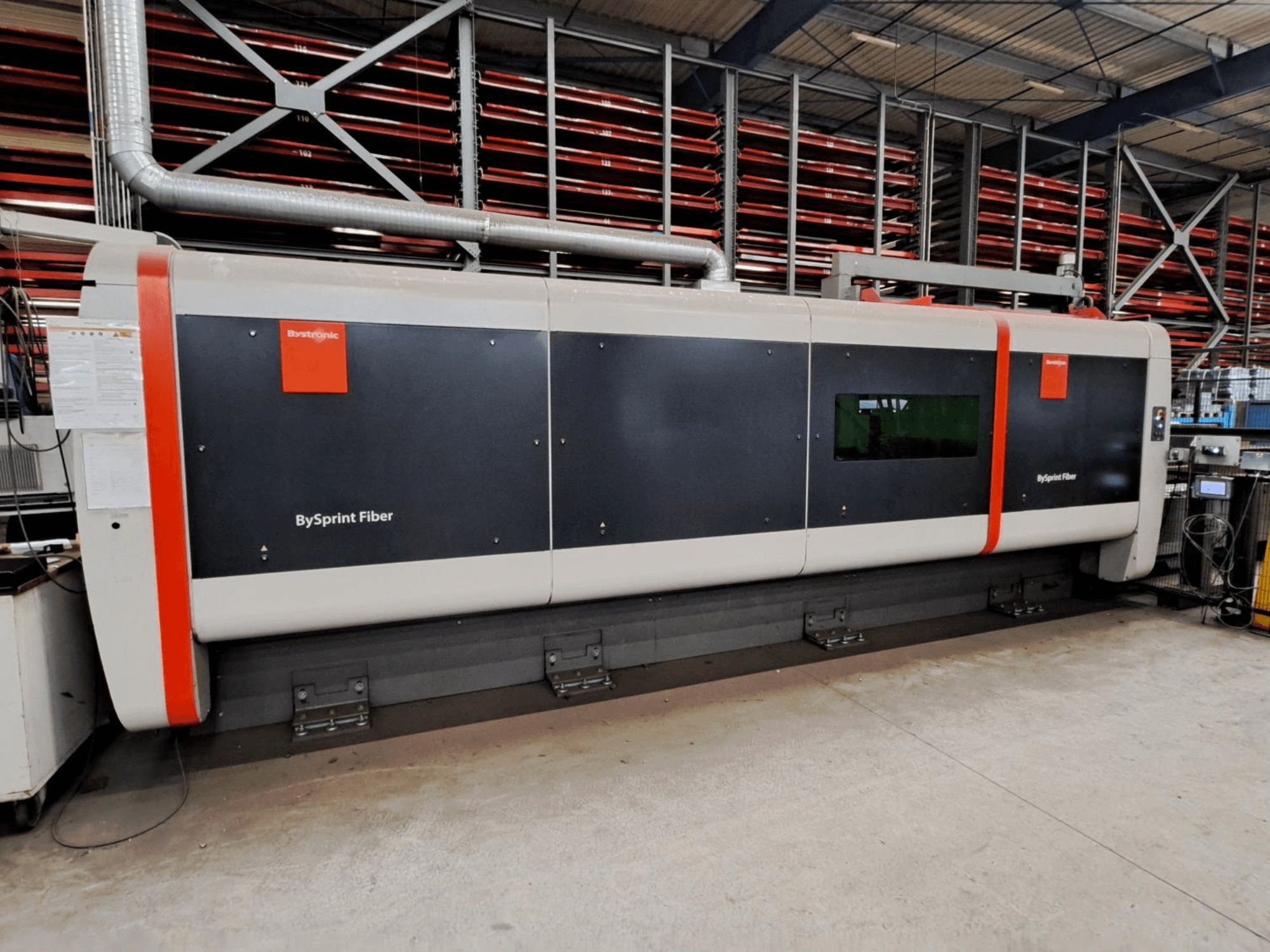

This 3-axis Bystronic BySprint Fiber 4020 was manufactured in 2017. It features a cutting area of 4,064 mm by 2,032 mm and a maximum cutting thickness of 70 mm. The machine is equipped with a powerful 6,000 W fiber laser, capable of handling various materials. If you are looking to get high-quality fiber laser cutting capabilities, consider the Bystronic BySprint Fiber 4020 machine we have for sale. Contact us for further details.
Overview
- brand: Bystronic
- year: 2017
- MODEL: BySprint Fiber 4020
- production hours: 26826
- application type: Cutting
- Location: France
- machine type: Fiber Laser Cutting Machine
Technical Information - Bystronic BySprint Fiber 4020
Dimensions
- Machine Height: 2565 mm
- Machine Length: 13743 mm
- Machine Weight: 15000 kg
- Machine Width: 6659 mm
Movement
- Number of Axes: 3
- X-axis Travel: 4000 mm
- Y-axis Travel: 2000 mm
Technical Specification
- Laser Power: 6 kW
Additional Information
Working area:
Cutting area: X 4,064 mm, Y 2,032 mm
Maximum cutting thickness (Z): 70 mm
Performance:
Max positioning speed (X/Y): 100 m/min
Max simultaneous speed: 140 m/min
Accuracy:
Positioning accuracy (VDI/DGQ 3441): ±0.1 mm
Repeatability (VDI/DGQ 3441): ±0.05 mm
Edge detection accuracy: ±0.5 mm
Capacity:
Maximum workpiece weight: 1,580 kg
Table system:
Table changeover time: 35 s
Laser specifications:
Type: Fiber
Pulse frequency: 1–2,500 Hz
Wavelength: Fiber standard
Maximum cutting thickness by material:
Steel: 20 mm
Stainless steel: 15 mm
Aluminum: 15 mm
Copper: 10 mm
Brass/Bronze: 10 mm
Power consumption:
Total system consumption (with filtration & chiller): 31.4 kW
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
