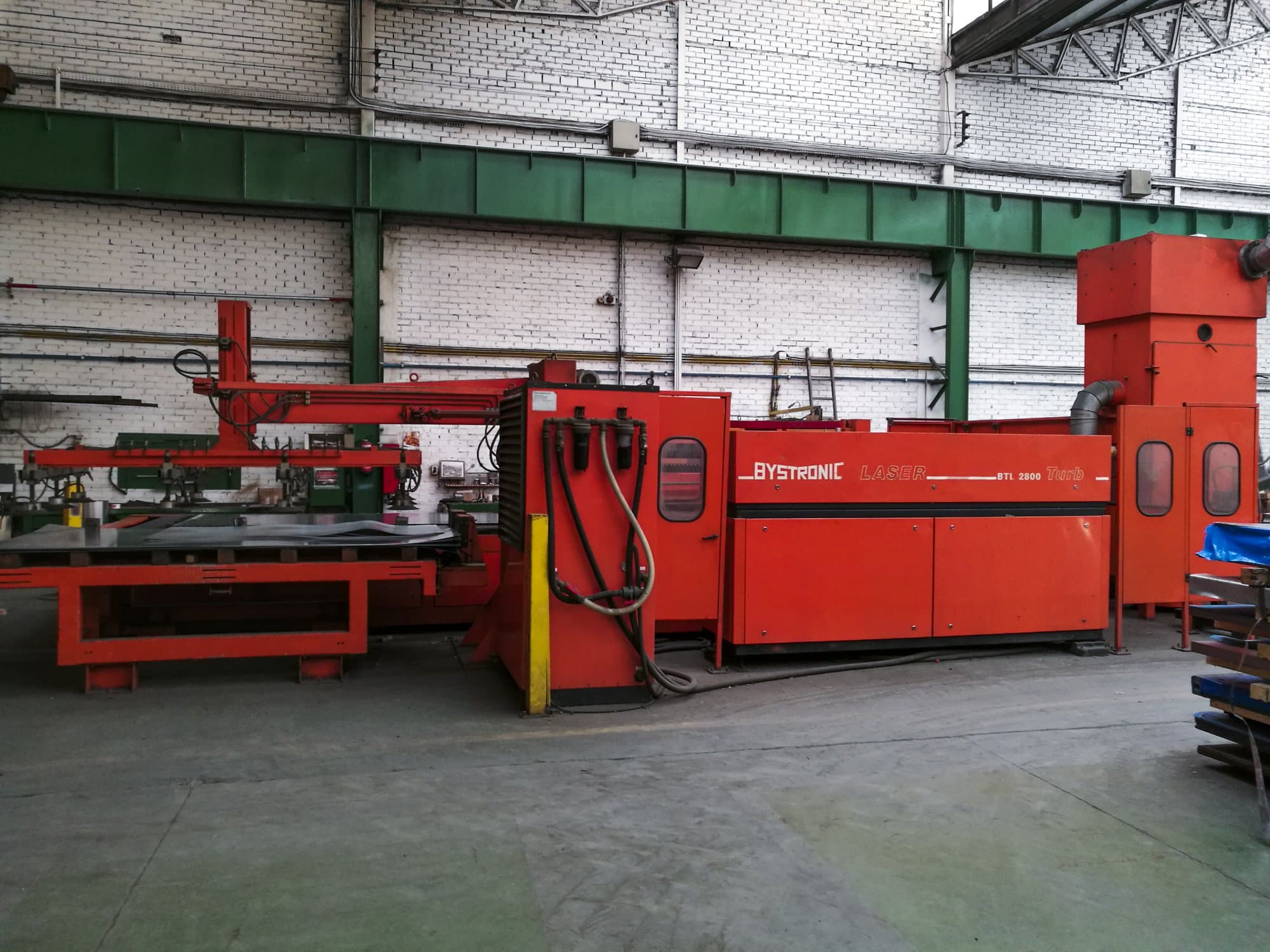

This Bystronic Bystar 3015 BTL 2800 Laser Cutting Machine was built in 1995 and has a production record of 83000 hours. This machine excels in cutting thin sheets, for which it is considered a top tier choice, as well as its ability to cutting pieces of bigger sizes and tubes. The Bystronic also includes an additional tension stabilizer and a sheet loader for automatic feeding.
Overview
- brand: Bystronic
- year: 1995
- MODEL: Bystar 3015 BTL 2800
- production hours: 83000
- application type: Cutting
- Location: Spain
- machine type: CO2 Laser Cutting Machine
- availability: Sold
Technical Information - Bystronic Bystar 3015 BTL 2800
General Data
- Measurements width: 105000 mm
- Measurements depth: 7600 mm
- Machine weight: 20092 kg
Main drive
- Laserpower: 2.8 kW
Movement
- X-AXIS Movement: 3048 mm
- X-AXIS Working Feed: 50 m/mm
- X-AXIS Rapid traverse: 140 m/mm
- Y-AXIS Movement: 1524 mm
- Y-AXIS Working Feed: 50 m/mm
- Y-AXIS Rapid traverse: 140 m/mm
- Z-AXIS Movement: 70 mm
Max Material thickness
- Steel: 12 mm
- Stainless steel: 10 mm
Media
- Main electronic connection: 23.5 kVA
- Air pressure: 6 bar
- He consumption: 27 NL/h
- CO2 consumption: 2 NL/h
- N2 consumption: 12 NL/h
Additional Equipment
- - Tension stabilizer applied to the machine
- - Sheet loader
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
