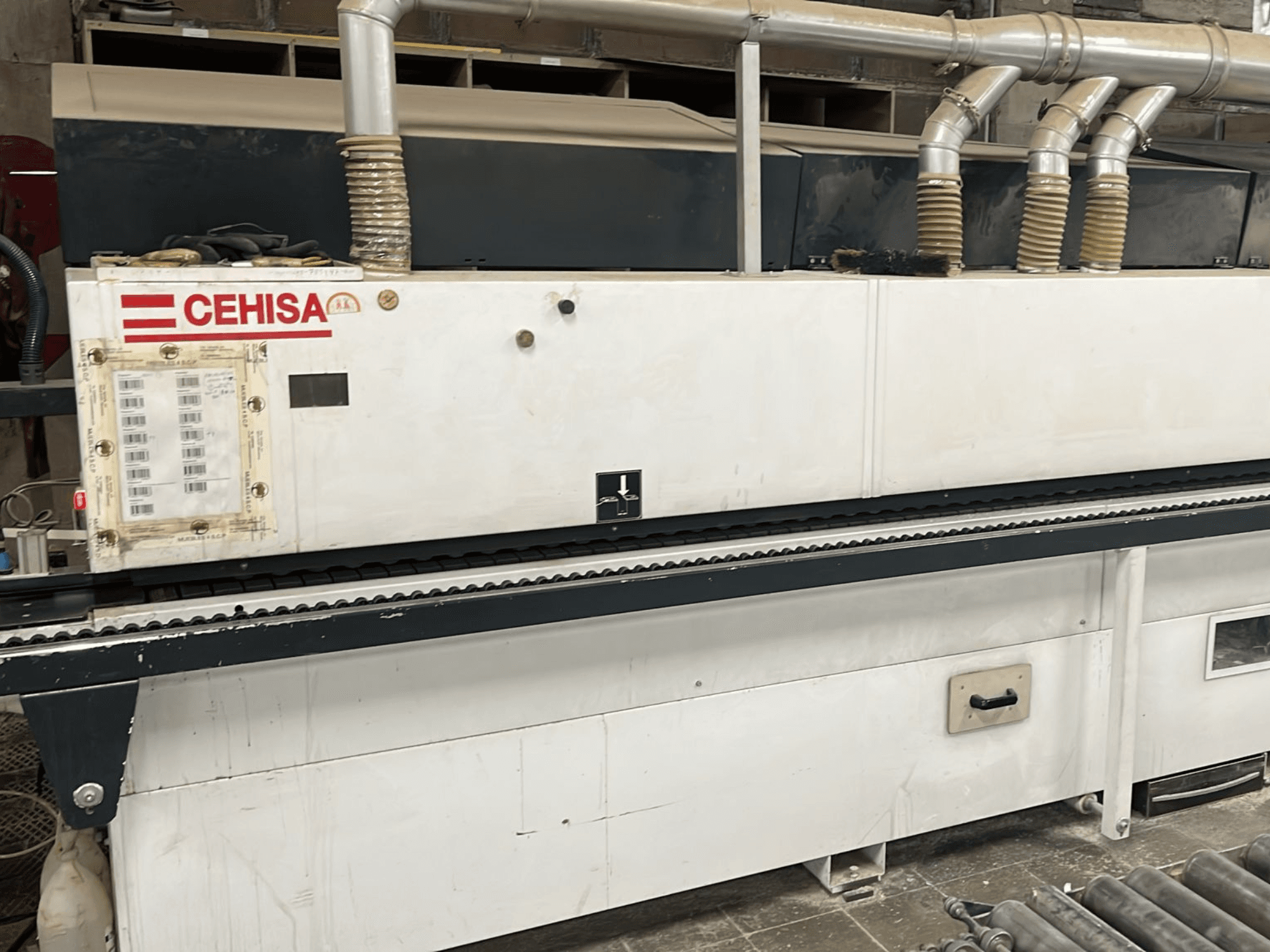

This 5-axis CEHISA PRO 12 CONCEPT edgebander was manufactured in 2020. It accommodates edgebanding materials from 0.4 to 8 mm and has a maximum edge height of 65 mm. The machine features a feed speed of 9/14 m/min and a total electrical output of approximately 12.9 kW. If you are looking to get high-quality edgebanding capabilities, consider the CEHISA PRO 12 CONCEPT machine we have for sale. Contact us for further details.
Overview
- brand: CEHISA
- year: 2020
- MODEL: PRO 12 CONCEPT
- application type: Edge Banding
- Location: Spain
- machine type: Edgebander
Technical Information - CEHISA PRO 12 CONCEPT
Dimensions
- Machine Height: 1485 mm
- Machine Length: 5618 mm
- Machine Weight: 1496 kg
- Machine Width: 680 mm
Additional Information
Edgebanding material (coils): 0.4–3.0 mm (0.016"–0.12")
Edgebanding material (solid wood strips): up to 8 mm (0.31")
Maximum edge height: 65 mm (2.56")
Panel thickness (min–max): 10–60 mm (0.39"–2.36")
Minimum panel length: 120 mm (4.72")
Minimum panel width: 70 mm (2.76")
Feed speed: 9 / 14 m/min (30 / 46 ft/min)
Note: 9 m/min when corner rounding is active
Total electrical output: approx. 12.9 kW
Pneumatic supply: 6–7 bar (87–101 psi)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
