Cetos - BUC 63C CNC/2000DE-GRI-CET-2003-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used Cetos BUC 63C CNC/2000 | Grinding

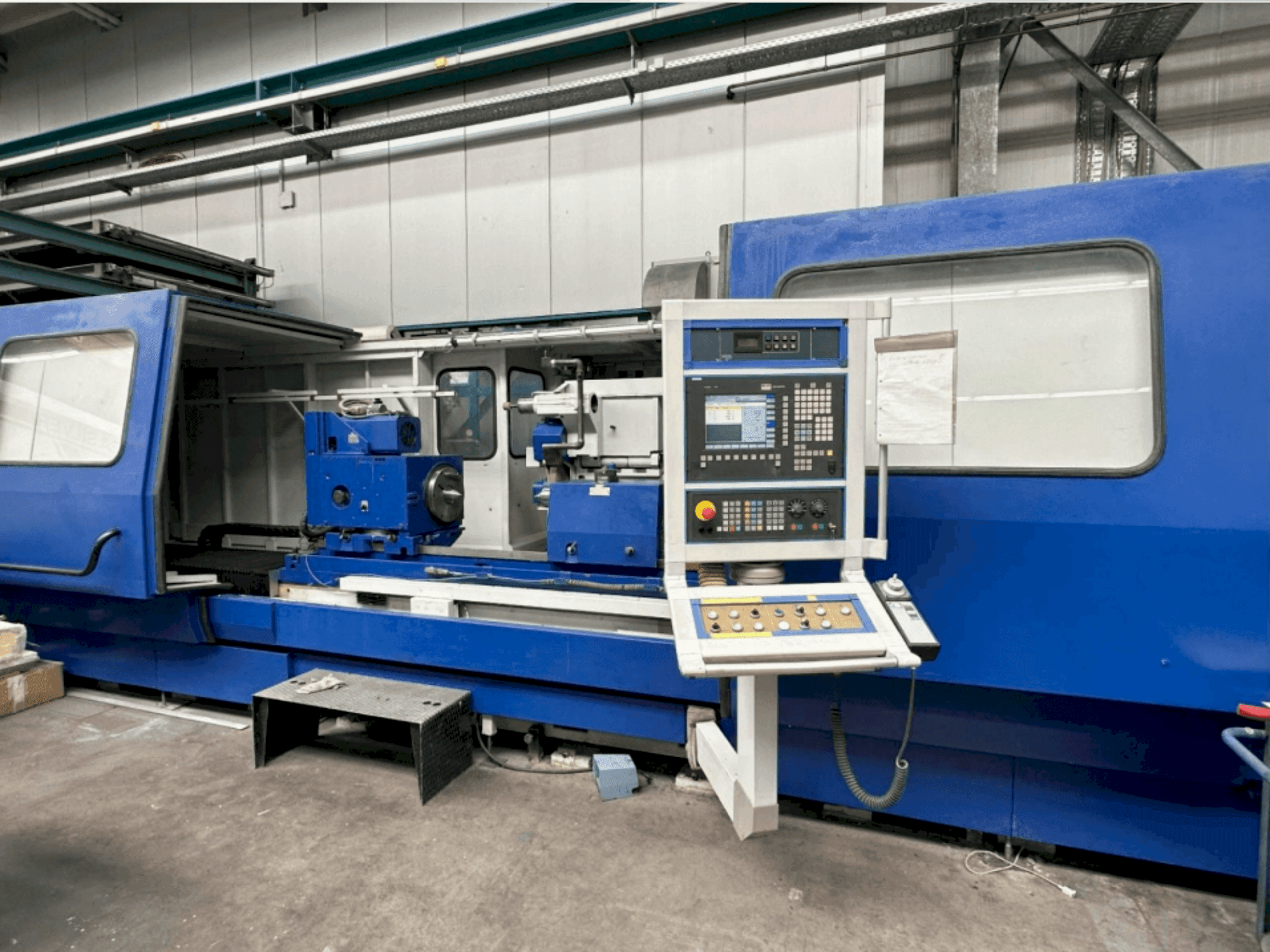

This 4-axis Cetos BUC 63C CNC/2000 was manufactured in 2003. A robust cylindrical grinding machine, it features a center distance of 2000 mm, a swing diameter of 630 mm, and can handle a maximum workpiece weight of 4000 kg. Equipped with the advanced Sinumerik 840D Powerline control system and a Resy coolant management system, it ensures precision and efficiency. If you are looking to get high-quality internal cylindrical grinding capabilities consider the Cetos BUC 63C CNC/2000 machine we have for sale. Contact us for more information.
Overview
- brand: Cetos
- year: 2003
- MODEL: BUC 63C CNC/2000
- application type: Grinding
- Location: Germany
- machine type: Cylindrical Grinding Machine
- control unit brand: SIEMENS
Technical Information - Cetos BUC 63C CNC/2000
Control Unit
- Control Brand: SIEMENS
- Control Model: 840D Powerline
Dimensions
- Machine Depth: 7700 mm
- Machine Height: 2960 mm
- Machine Weight: 13805 kg
Technical Specification
- Spindle Power: 19 kW
- Spindle Speed: 1675 RPM
Additional Information
Additional equipment
- Equipped with an electrical quill travel of 80 mm (overhauled)
- Grinding Spindle: Overhauled
- Grinding Wheel Handling: Broad grinding wheel support, manual steadies, wheel-changing facility with a grinding wheel stand
- Resy coolant management system
- Automatic and manual steadies included
- The machine has been mechanically overhauled
- The bed and grinding spindle are in refurbished condition
Machine Benefits
Qualitative Machine Benefits
- Technical machine benefits: mechanically overhauled, broad grinding wheel support
- Qualitative machine benefits: overhauled components including tailstock with electric quill stroke, spindle head, grinding spindle, and machine bed
- Possibility to grind conical holes during internal grinding because of rotated headstock
- The maximum workpiece weight for grinding without tailstock or steady rest is 300 kg, including clamping device, according to the operating instructions
- The maximum diameter of the internal grinding wheel is 57 mm. See page 8. 185 of the operating instructions.
- The machine has dressing systems in jog or automatic mode. See page 8. 43 of the operating instructions.
- Marposs measuring probe is installed.
Technical Machine Benefits
- Center distance: 2000 mm
- Swing diameter: 630 mm
- Maximum workpiece weight: 4000 kg
- Workpiece drm: 630 mm / workpiece x: 2000 mm
- Power supply: 3x400v, 50hz / control voltage: 230v ac, 24v dc / total power consumption: 65/80 kva / machine bed material: cast iron (gray iron)
- Tailstock equipped with electrical quill travel and adjustable clamping force / grinding spindle swivel range: +30° to -10° / automatic infeed range: 0. 0005 mm to 380 mm / rapid traverse speed: 10,000 mm/min / pneumatics: working air pressure: 0. 5 mpa, air consumption: 800 l/min / lubrication: grinding spindle lubrication and guideways and infeed mechanisms lubrication
- The headstock can be equipped with a three-jaw chuck
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
