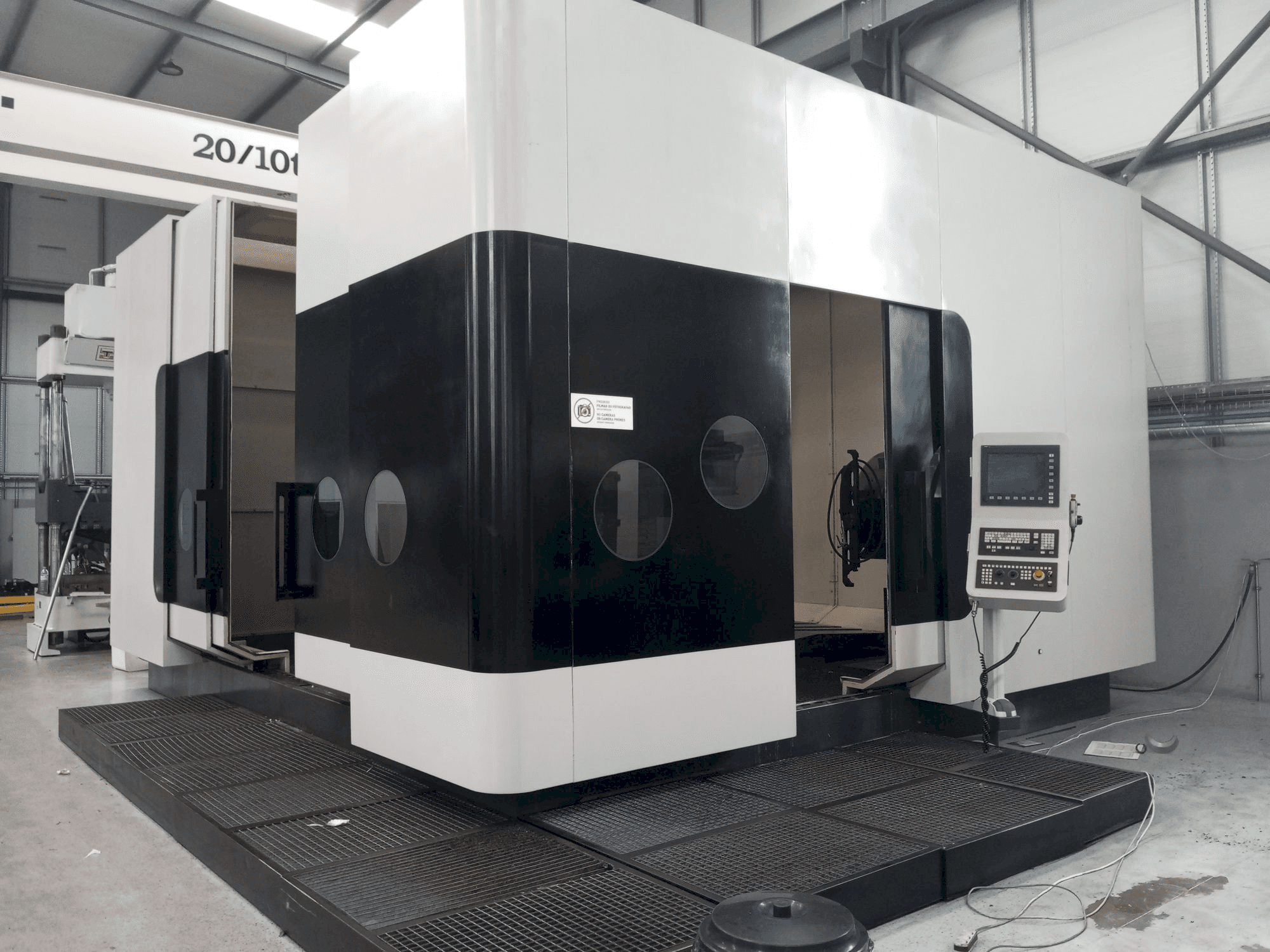

This CHETO 3000 Drilling machine was made in 2014 and has 9700 production hours. The machine has a spindle speed of 6000 rpm.
Overview
- brand: CHETO
- year: 2014
- MODEL: 3000
- production hours: 9700
- application type: Other Machine Tools
- Location: Portugal
- machine type: Drilling Machine (Metal)
- availability: Sold
Technical Information - CHETO 3000
General Data
- Measurements width: 9520 mm
- Measurements depth: 7410 mm
- Machine weight: 39000 kg
Main drive
- Spindle speed range: 6000 1/MIN
- Spindle motor power: 24/38 kW
Movement
- X-AXIS Movement: 3000 mm
- Y-AXIS Movement: 1200 mm
- Z-AXIS Movement: 800 mm
- B-AXIS Movement: 360º MM
Table
- Outer length: 1800 mm
- Outer width: 1800 mm
Additional Information
- Technical Machine Benefits:
- - W stroke bore 1700 mm
- - A tilt rotation +35º/-25º
- - Max. Drilling stroke w+z 1700+800 mm
- - Drilling capacity ø5-40 mm
- - Spiral thread cutting standard
- - Thread cutting m34
- - Milling 500 cm3/min
- - Recording iso 50 din 69871
- - Torque 214/338 nm
- - Positioning type 360,000 pos.
- Qualitative Machine Benefits:
- - Max. Alternating load 30 tons
- - Total weight gdatc 52 tons
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
