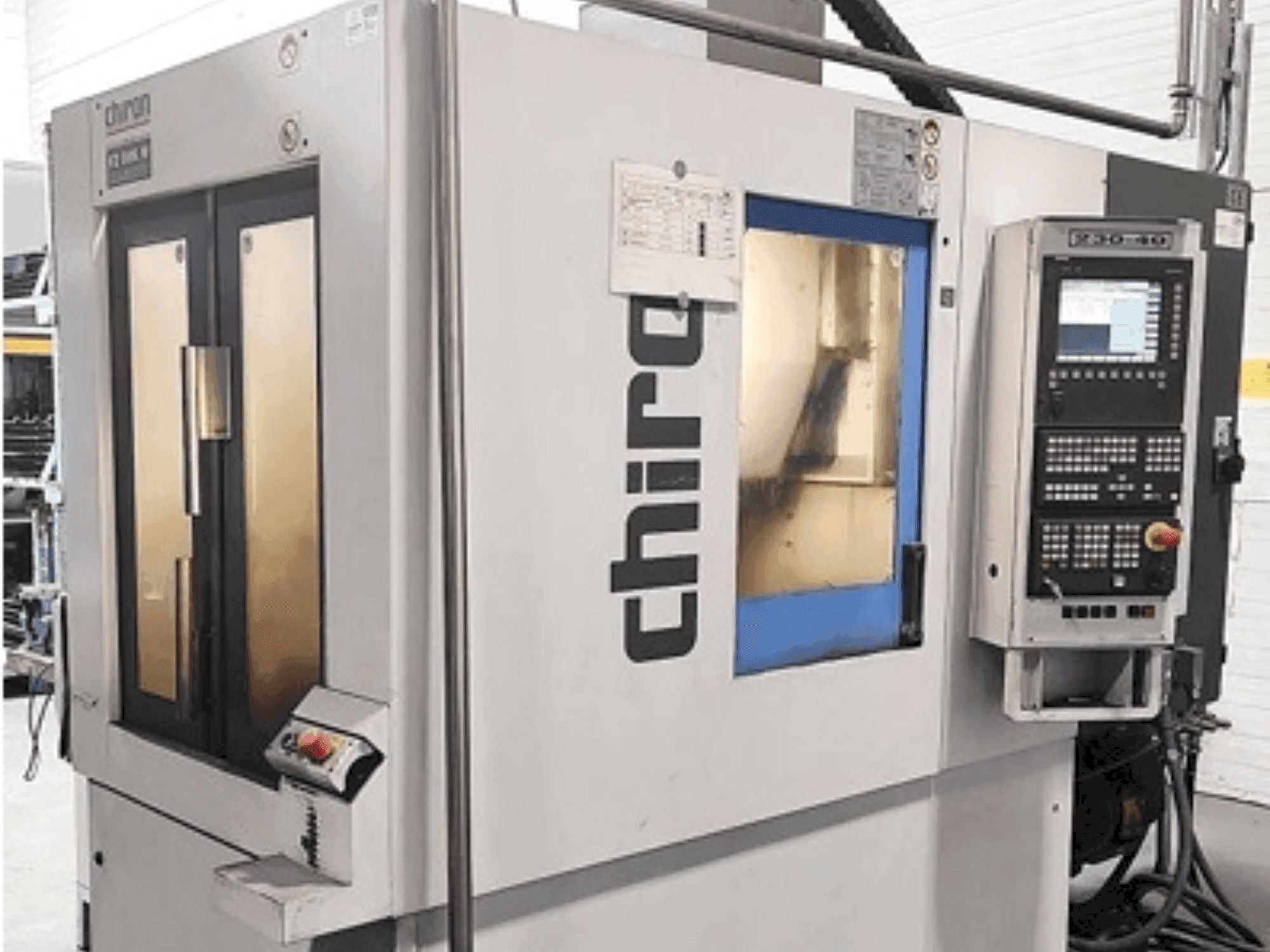

CHIRON - FZ 08K WDE-MIL-CHI-2004-00001

Additional Equipment

• - Options: Optionally expandable to 4th and 5th axis (e.g. rotary table or swivel axis)

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - High-pressure coolant unit: up to 150 bar (programmable)
  • - Chip conveyor: scraper belt with 110-liter container
  • - Filtration: 60-µm double-switching filter
  • - Main drive: digital, air-locked
  • - Max. Torque: 23 nm
  • - Acceleration: x/y 0. 7 g, z 1. 0 g
  • - Tool changer type: pick-up chain magazine (fully encapsulated)
  • - Tool change time: 0. 8 s (control-dependent)
  • - Chip-to-chip time: approx. 2. 2 s

Extra information

• - The machine was acquired as a retrofit Mains connection: 400/230 V three-phase current, 50 Hz, N/PE Compressed air: min. 6 bar (±1 bar) Ambient temperature: max. 40°C Splash protection: Fully encapsulated with stainless steel blades Safety: CE-compliant (no RCD required) Workpiece Workpiece changing device: 0/180° with sheet steel partition Clamping surface: 2 x 550 x 300 mm² Max. Transport load: 200 kg per side (max. 50 kg difference) Workpiece changing time: Approx. 2.0 s (depending on weight) Media High-pressure coolant unit: Up to 150 bar (programmable) Chip conveyor: Scraper belt with 110-liter container Filtration: 60-µm double-switching filter
