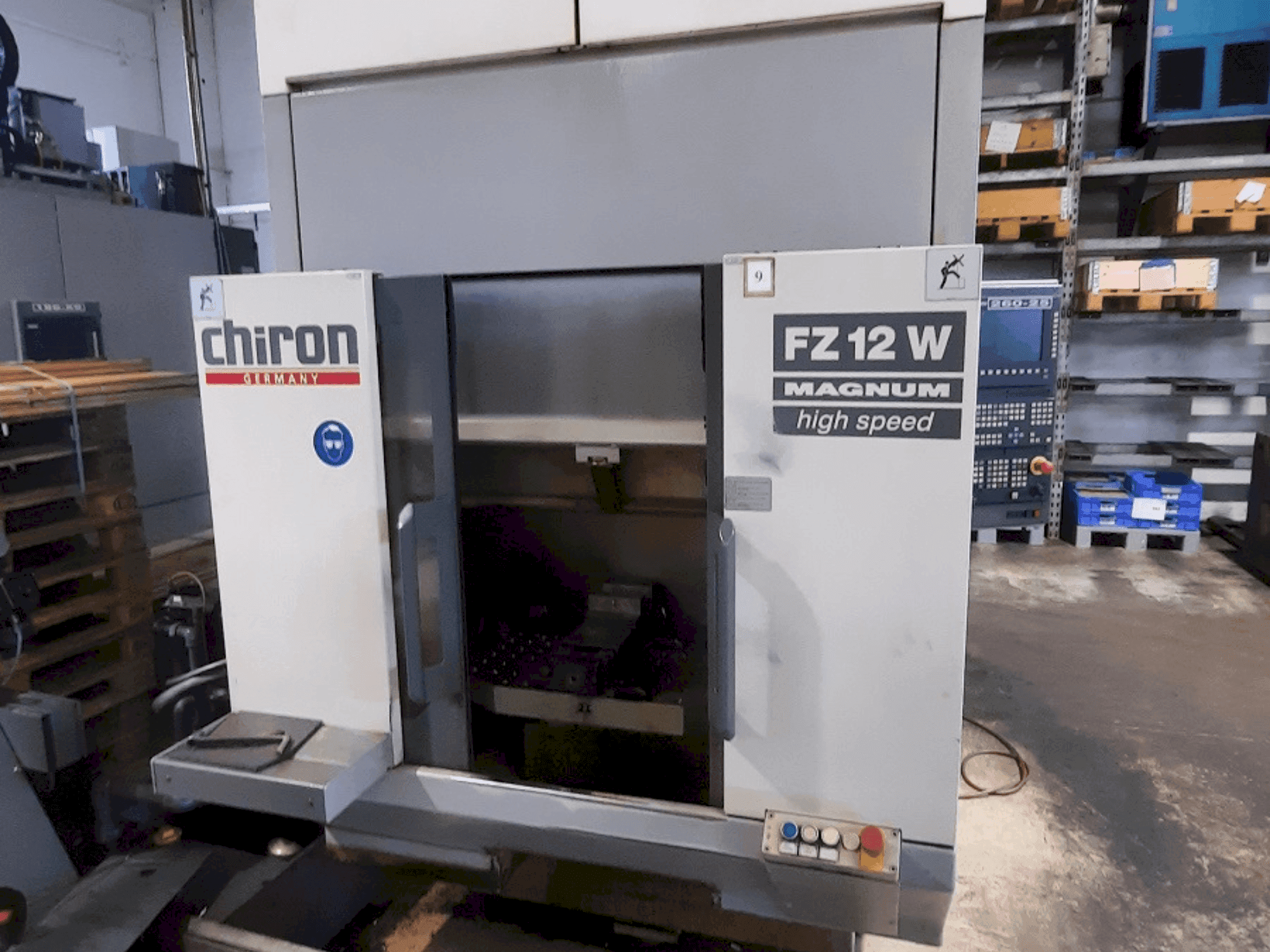

CHIRON - FZ 12 WDE-MIL-CHI-2004-00002

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Motor type: ac motor
  • - Main spindle drive: 5. 0 kw at 100% duty cycle, 9. 5 kw at 25% duty cycle
  • - Rapid traverse speed: 40 m/min
  • - Automatic tool changer: 20 tool positions
  • - Tool shank: steep taper 40 din 69871 + 72
  • - Max tool diameter with free adjacent positions: 150 mm
  • - Tool change time: approx. 0. 9 s to 2. 4 s (control-dependent)
  • - Ac servo motor: indirect, absolute position measuring system

Extra information

• - Specific details about extra equipment, machine history, benefits, or additional information were not provided. Control Unit Control System: CNC 840D Display: 10.4" TFT color screen / full keyboard OP032S NC Memory: 256 KB for up to 200 programs Interface: Universal RS 232C interface (2x V24) Controller Features: Drilling cycles G81-G89, Circular interpolation, Program restart, Subroutine technology, Simultaneous programming, Contour train programming, Cycle support, Polar coordinates, Geometry and wear compensation, Mirroring, Scale factor, Software limit switches, NC and Machine diagnostics, Power display, Metric or inch dimensions. Workpiece Workpiece Change Device: 0/180° Clamping Surface: 2 x 660 x 350 mm with thread and bore pattern Maximum Load per Side: 100 kg (150 kg) Maximum Weight Difference: 100 kg Workpiece Change Time: Approx. 2.9 s
