CHIRON - FZ 18 KWDE-MIL-CHI-2001-00001
Do you have further questions? Contact us.

Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com

- GINDUMAC
- Products
- Machine Tools
- ➤ Used CHIRON FZ 18 KW For Sale | gindumac.com

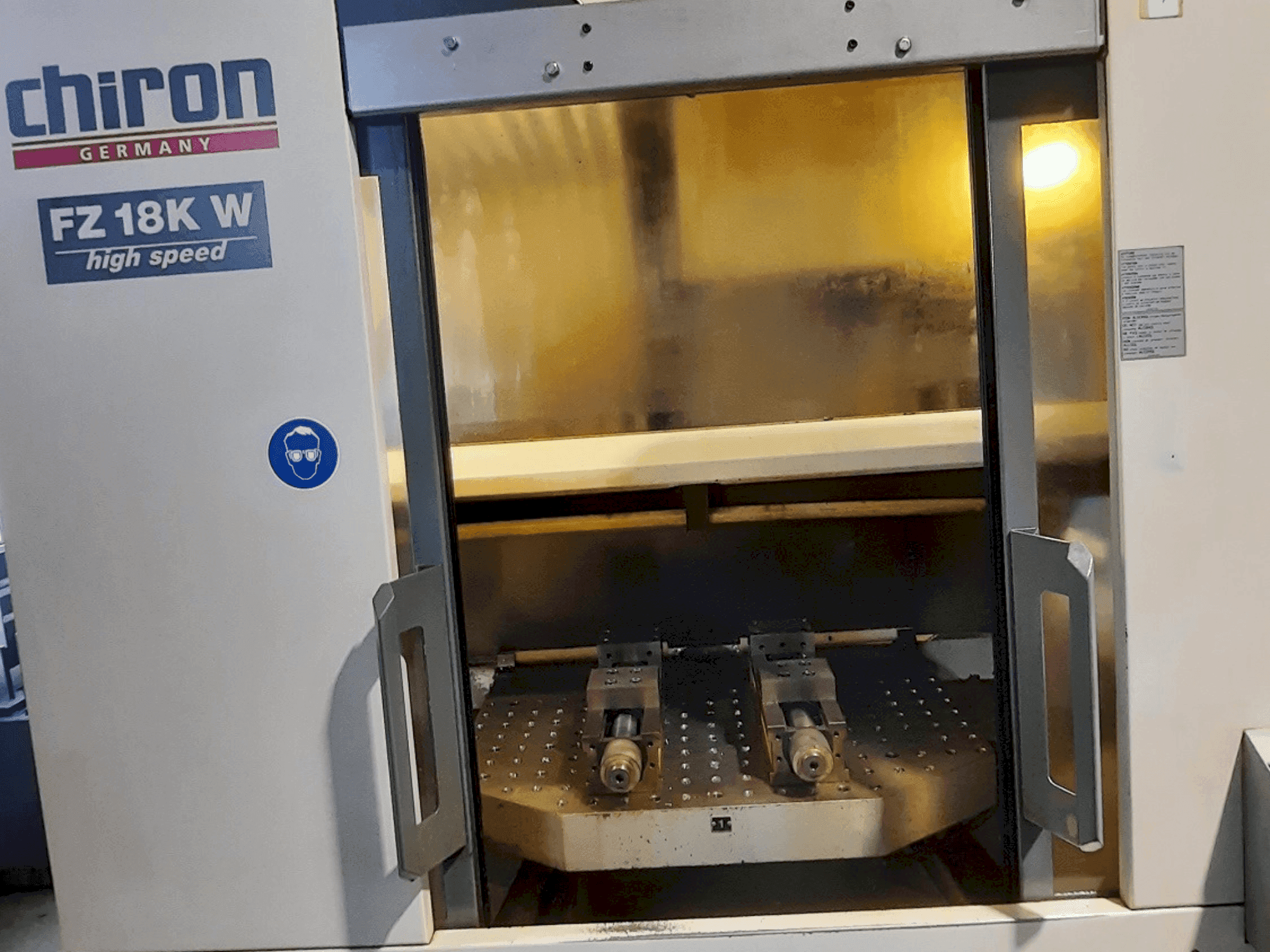

This 3-axis CHIRON FZ 18 KW vertical machining center was manufactured in 2001. It features a robust AC motor with a speed range of 20-10,500 rpm and a drilling capacity of 42 mm. The machine includes a 40-position automatic tool changer and a rapid traverse speed of 40 m/min in all axes. It's equipped with a Siemens CNC control 840D, ensuring precise and efficient operations. Consider the opportunity to buy this CHIRON FZ 18 KW vertical machining center. Contact us for more information.
Overview
- brand: CHIRON
- year: 2001
- MODEL: FZ 18 KW
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- control unit brand: SIEMENS
Technical Information - CHIRON FZ 18 KW
Control Unit
- Brand: SIEMENS
- Model: 840D
Main drive
- Spindle speed range: 20 - 10500 rpm 1/MIN
- Spindle motor power: 10 kW
- Number of axis: 3
Movement
- X-AXIS Movement: 630 mm
- X-AXIS Rapid traverse: 40 m/min
- Y-AXIS Movement: 400 mm
- Y-AXIS Rapid traverse: 40 m/min
- Z-AXIS Movement: 630 mm
- Z-AXIS Rapid traverse: 40 m/min
Tools
- Max weight: 5 kg (8 kg)
- Max tool diameter: 78 mm
- Max tool length: 280 mm
Additional Information
- Technical Machine Benefits:
- - Main spindle drive with ac motor
- - Power: 10 kw at 100% duty cycle, 18 kw at 25% duty cycle
- - Feed drive for x, y, and z axes with digital direct drives and indirect absolute position measuring system
- - Acceleration: 0. 5 g in the x and y axes, 0. 7 g in the z axis
- - Transport load per side: 0 - max 400 kg
- - Workpiece changing device with stainless steel center divider
- - Workpiece change time: approx. 3. 7 s (weight-dependent, self-regulating)
- - Tools Automatic tool changer with 40 tool positions Tool shank: steep taper 40 DIN 69871+72 Tool diameter with free adjacent positions: 160 mm Tool change time: approx. 1.0 s (control-dependent) Chip-to-chip time: approx. 2.9 s (control-dependent) Control Unit SIEMENS CNC control 840D Includes 10.4" TFT color screen and full keyboard OP032S NC RAM 256 KB (freely available max. 200 programs) Features: Drilling cycles G81-G89, Drilling and milling patterns, M and T functions, Circular interpolation, Program restart, Subroutine technology, Simultaneous programming, Contour train programming, Cycle support, Polar coordinates, Tool compensation for geometry and wear, Tool radius compensation, 3D interpolation, Mirroring, Scale factor, Chamfers and radii insertion, RS 232C interface, Oriented spindle stop, Execution of large CNC programs, Software limit switches, NC diagnostics, Absolute position measuring systems, Power display on screen, Revolutional feedrate look-ahead
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
Sergi Guardia
Payment Terms
Payment in advance
Asset Financing
