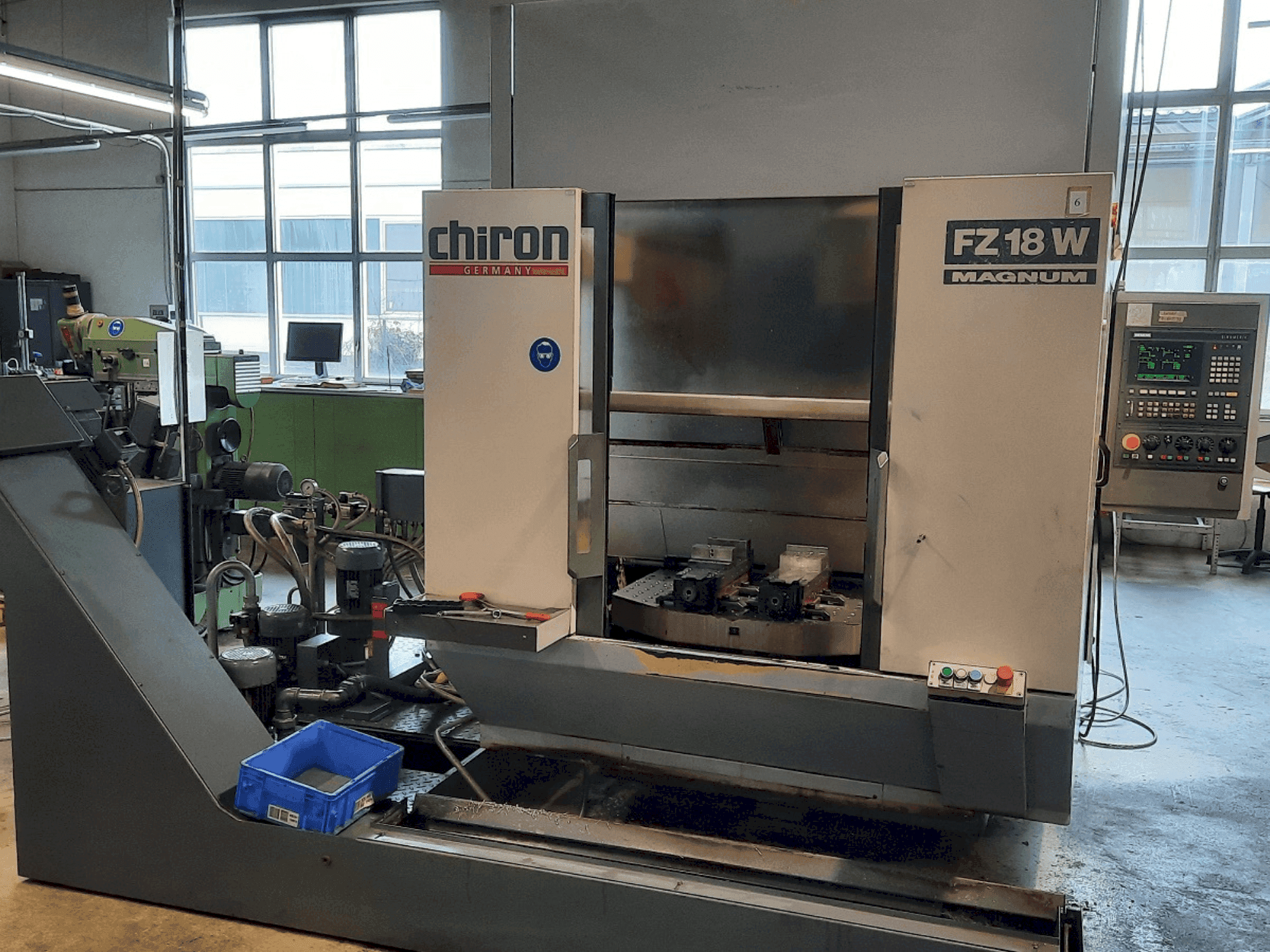

This 4-axis CHIRON FZ 18 W was manufactured in 1996, featuring a robust vertical machining center design. It includes a main spindle drive up to 13 kW, rapid traverse speed of 30 m/min, and a high-capacity automatic tool changer with 20 positions. The machine supports complex operations with SINUMERIK 810M control for precise 3D contouring. Ideal for high-demand environments, it also has dual chip conveyors with an advanced coolant system. Contact us for more information about this machine.
Overview
- brand: CHIRON
- year: 1996
- MODEL: FZ 18 W
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- control unit brand: SIEMENS
Technical Information - CHIRON FZ 18 W
Control Unit
- Control Brand: SIEMENS
- Control Model: Sinumerik 810M
Movement
- Number of Axes: 4
- X-axis Travel: 630 mm
- Y-axis Travel: 400 mm
- Z-axis Travel: 425 mm
Technical Specification
- Max. Tool Weight: 5 kg
- Spindle Power: 13 kW
- Spindle Speed: 7100 RPM
Additional Information
Additional equipment
- 2.2 Chip Conveyors: Scraper belt, discharge height 1050 mm
- Steel Cover: In all axes
Machine Benefits
Technical Machine Benefits
- Spindle torque: 300 nm
- Rapid traverse speed: 30 m/min
- Feed drive: ac servo motor, indirect position measuring system
- Clamping surface: 2 x 850 x 470 mm with thread and bore pattern
- Max transport load per side: 250 kg (up to 400 kg with extended time)
- Workpiece change time: approx. 4. 0 s, increasing to approx. 7 s with max loads
- Automatic tool changer: 20 tool positions
- Tool specifications: steep taper 40 din, diameter 65 mm, diameter with free adjacent positions 180 mm, weight 5 kg
- Tool change time: 0. 9 s // chip-to-chip time: 2. 4 s
- Coolant system: 500-liter tank, with n-pump (200 ltr/min at 1. 5 bar) and hd-pump (20 ltr/min at 20 bar), hd circuit with 60 um cleaning
Extra Information
Safety: Electrically protected screwed splash guard with loading door Height: Approx. 2600 mm above floor, including machine light Control Panel: Mini control panel with start and acknowledge button for pallet organization Control Unit Control Type: SINUMERIK 810M - 3-axis contouring control Program Memory: 32000 characters (approx. 28000 characters freely available) Notable Features: Drilling cycles G81-G89, Circular interpolation, Program restart, Subroutine technique with parameters, Operator guidance, Simultaneous programming, Polar coordinates, Tool offsets, Intersection point/cutter radius path compensation, Zero offsets, 3D interpolation, Direct spindle speed programming, Chamfers and radii insertion, RS 232C connection, NC diagnostics, Machine diagnostics
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
