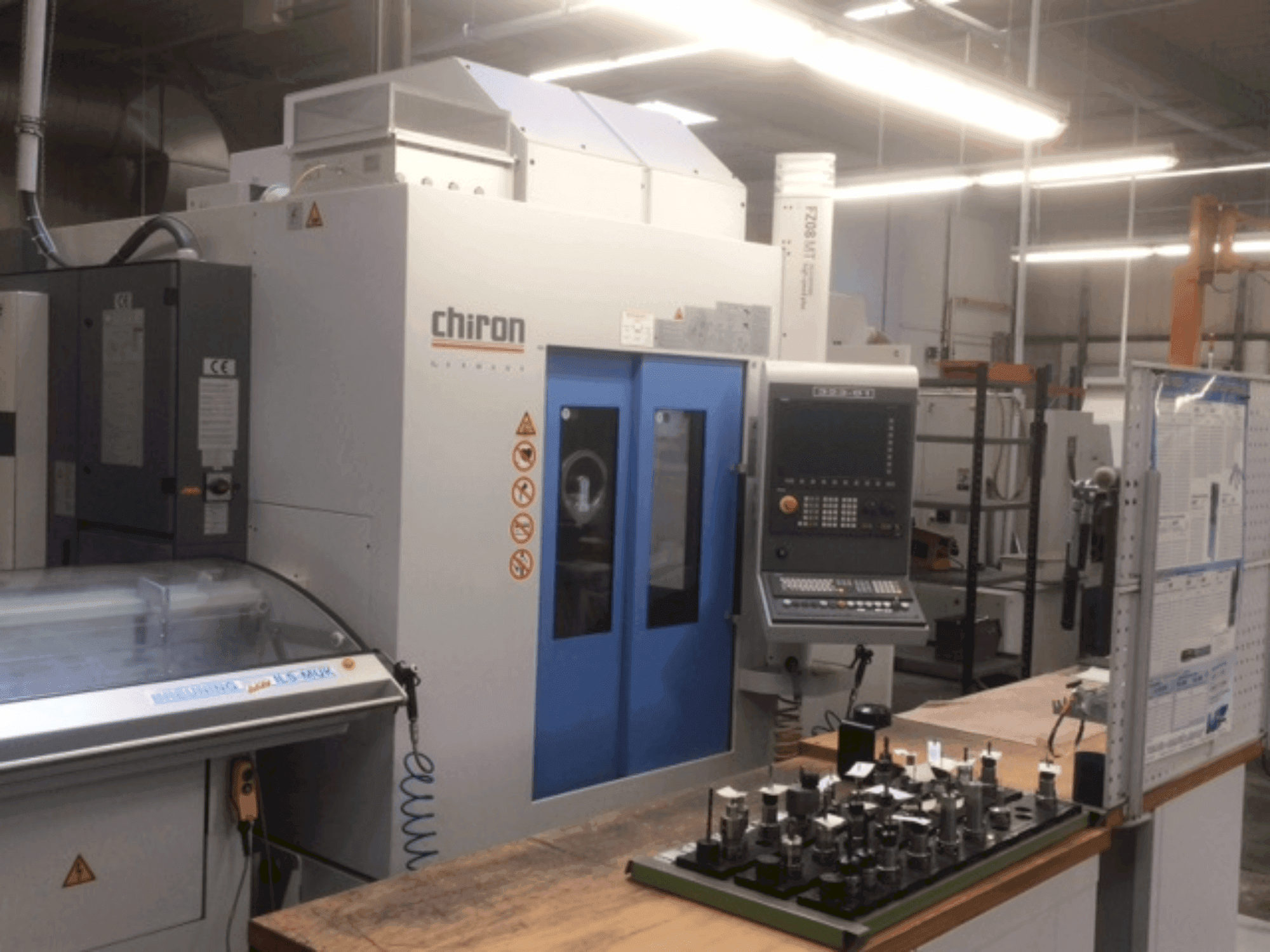

CHIRON - FZ08 MTDE-MIL-CHI-2011-00001

Additional equipment

• Chip conveyor
• Oil mist extraction
• Signal lamp
• Paper band filter
• Spindle oil cooler

Machine Benefits

Technical Machine Benefits

• Torque: 15 nm
• Nc swivel head: swivel range: -20° / +115°; rapid traverse speed: 60 rpm; resolution: 0. 0001°
• Turner with centering clamping device czsh 80-a on turret
• Stroke: 2 mm per jaw
• Digital main drive with water-cooled motor spindle
• Fixture flushing with spray nozzles
• Collet chuck with integrated hydraulic release unit
• Tool station organization and siemens tool life monitoring
• Undervoltage relay and button for machine light deactivation

Extra Information

Injection Unit Coolant system High-pressure coolant 70 bar Internal coolant supply Clamping Force Hydraulic system Machine-Specific Data Increased Speed Range for Water-Cooled Motor Spindle: Power: 7 kW at 100% duty cycle, 9 kW at 25% duty cycle; Speed: up to 30000 rpm; Torque: 11 Nm Media Cooling System KF 150 / FKA 500 Tank capacity: 500 l Low-pressure pump: 80 l/min at 3.0 bar to 100 l/min at 1.8 bar High-pressure pump: 20 l/min at 30 bar Machine History Warranty: 4000 hours Extra Information Rotating Viewing Window Pneumatic drive installed on the left front door
