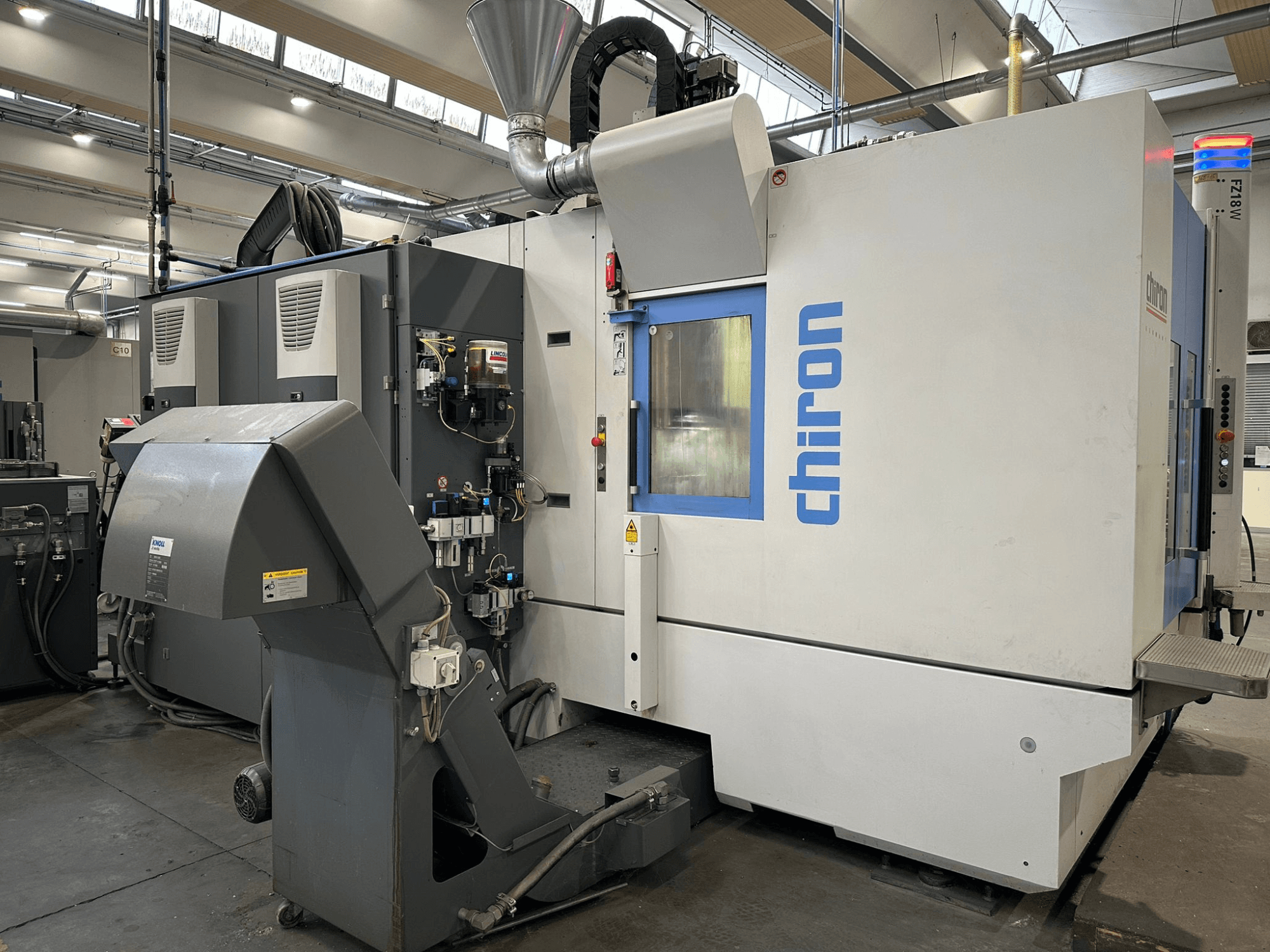

This 5-axis CHIRON FZ18W was manufactured in 2019, featuring a FANUC 31i-B5 control system and continuous 5-axis control. It boasts a spindle speed of up to 12,000 rpm, a tool capacity of 70, and rapid traverse rates of 75 m/min. Ideal for complex machining tasks with its automatic pallet changer and dual rotary tables. If you are looking to get high-quality milling capabilities consider the CHIRON FZ18W machine we have for sale. Contact us for more information.
Overview
- brand: CHIRON
- year: 2019
- MODEL: FZ18W
- application type: Milling
- Location: Italy
- machine type: Vertical Machining Centre
- control unit brand: FANUC
Technical Information - CHIRON FZ18W
Control Unit
- Control Brand: FANUC
- Control Model: 31i-B5
Movement
- Number of Axes: 5
- X-axis Travel: 800 mm
- Y-axis Travel: 530 mm
- Z-axis Travel: 450 mm
Technical Specification
- Max. Tool Weight: 8 kg
- Spindle Power: 22 kW
- Spindle Speed: 12000 RPM
Additional Information
Number of axes: 5 (X, Y, Z + 2 rotary axes via pallet/rotary table)
Spindle:
AC spindle motor: 7.5 kW (100% duty), 22.0 kW (10% duty)
Max torque: 140 Nm
Taper: HSK-A63 (DIN 69893)
Drilling capacity: Ø 42 mm
Tapping capacity: M30
Milling capacity: 500 cm³/min (steel E355)
Tool changer:
Type: Fully enclosed chain magazine
Capacity: 70 tools
Max tool Ø: 78 mm (160 mm with free adjacent positions)
Max tool length: 380 mm
Max magazine load: 240 kg
Tool change time: ~0.9 s
Chip-to-chip time: ~2.6 s
Feed rates & dynamics:
Rapid traverse (X/Y/Z): 75 m/min
Acceleration: 0.6 – 1.2 – 1.4 g
Drives: Direct digital drives with absolute measuring system
Machine functions/utilities:
Automatic washdown of work area and fixtures
Automatic centralized grease lubrication
Hydraulic unit: 200 bar
Compressed air treatment with filtration to 0.01 µm
Cooling unit for machine components
Measuring, monitoring, software:
FANUC 3D collision control
Tool monitoring and sister tool management
Electrical & interfaces:
Ethernet RJ45, USB, PCMCIA
Remote diagnostics: CHIRON remoteLine
Data monitoring & OEE: CHIRON dataLine
Compliance: CE
Additional equipment (robots, automation, peripherals)
Automation/palletizing:
Automatic pallet changer IWV 0°/180° (change time ~3.5 s)
Rotary table ATU 200, 2 units
Positioning accuracy/repeatability: ±5″
Max clamping torque: 1,200 Nm
Max load per side (APC): 250 kg
Max weight difference between pallets: 0 kg
Coolant and chip management:
Through-spindle coolant (predisposition)
High-pressure coolant system up to 30 bar
Coolant filtration: Drum filter TPF 350 S (50 µm)
Chip conveyor: Hinged belt
Coolant tank: 230 L
Pump: 250 L/min @ 1.4 bar
Probing/tool control:
Renishaw RLP40Q probe (predisposition)
Laser tool breakage control (Single F1000)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
