CIDAN - FORMA 30PL-BEN-CID-2019-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Sheet Metal Machinery
- ➤ Used CIDAN FORMA 30 For Sale | gindumac.com

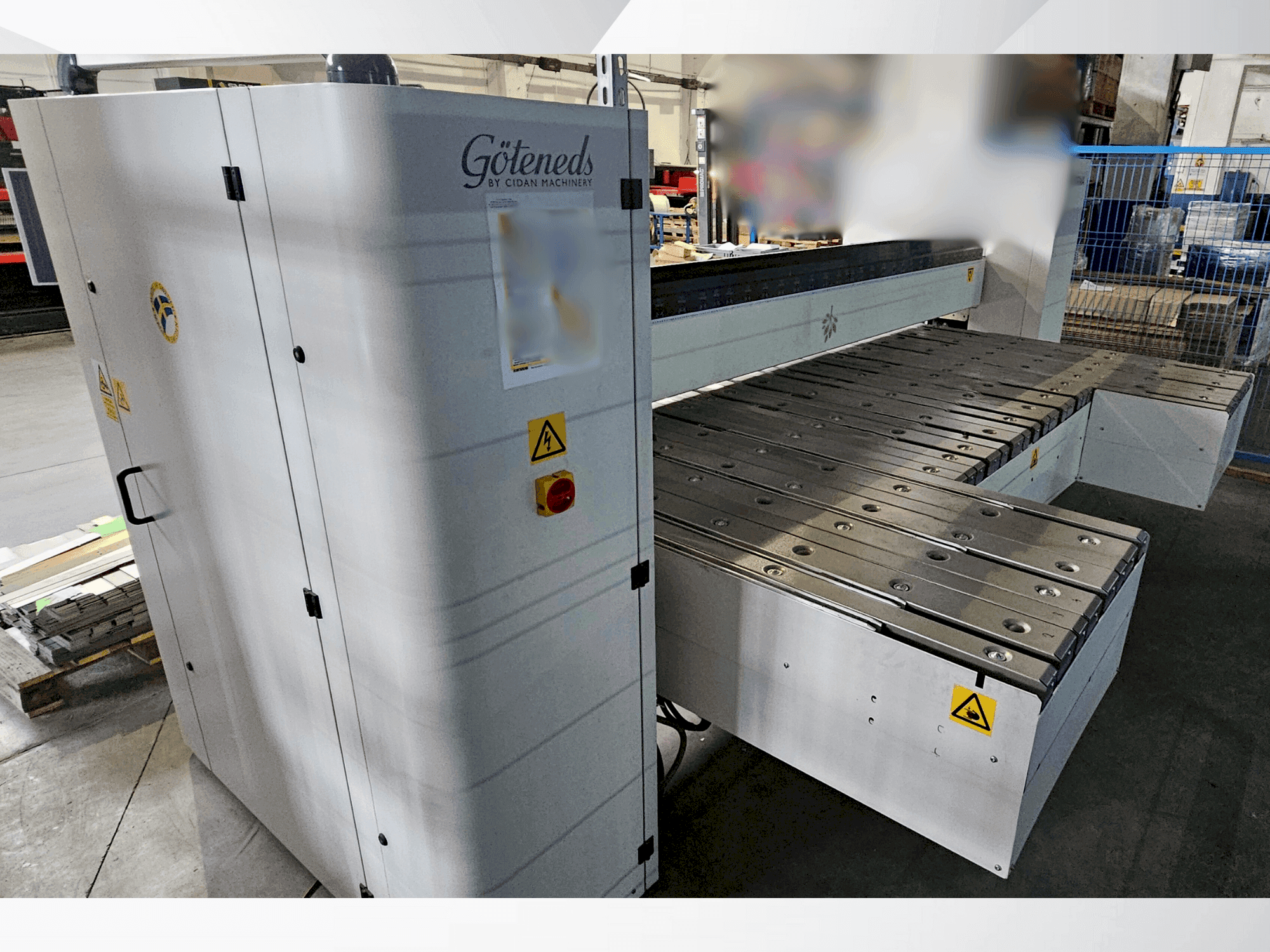

This CIDAN FORMA 30 die bending machine was manufactured in 2019. It features a working length of 3100 mm, a maximum sheet thickness for aluminum at 4.5 mm, and is equipped with ProLink CNC control. The machine includes a rotating upper beam type COMB with a quick-clamping tool system and an adjustable bending beam speed via inverter. If you are looking to get high-quality bending capabilities, consider the CIDAN FORMA 30 machine we have for sale. Contact us for more information.
Overview
- brand: CIDAN
- year: 2019
- MODEL: FORMA 30
- production hours: 5568
- application type: Bending
- Location: Poland
- machine type: Die Bending Machine
- availability: Sold
Technical Information - CIDAN FORMA 30
General Data
- Measurements width: 1800 MM
- Measurements depth: 4100 MM
- Measurements height: 1845 MM
- Machine weight: 4750 KG
Main drive
- Main motor power: 7.9 KW
Max Material thickness
- Stainless steel: 1.9 mm
- Aluminum: 4.5 mm
Additional Information
- Technical Machine Benefits:
- - Voltage: 3x400v pe+n
- - Max sheet thickness (rm=400 n/mm²): 3. 0 mm
- - Opening: 195 mm
- - Cnc control: prolink
- Qualitative Machine Benefits:
- - Driven backgauge
- - Rotating upper beam type comb with quick-clamping tool system
- - Adjustable bending beam speed via inverter
- - Multifold divided tools for the lower bending beam
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
