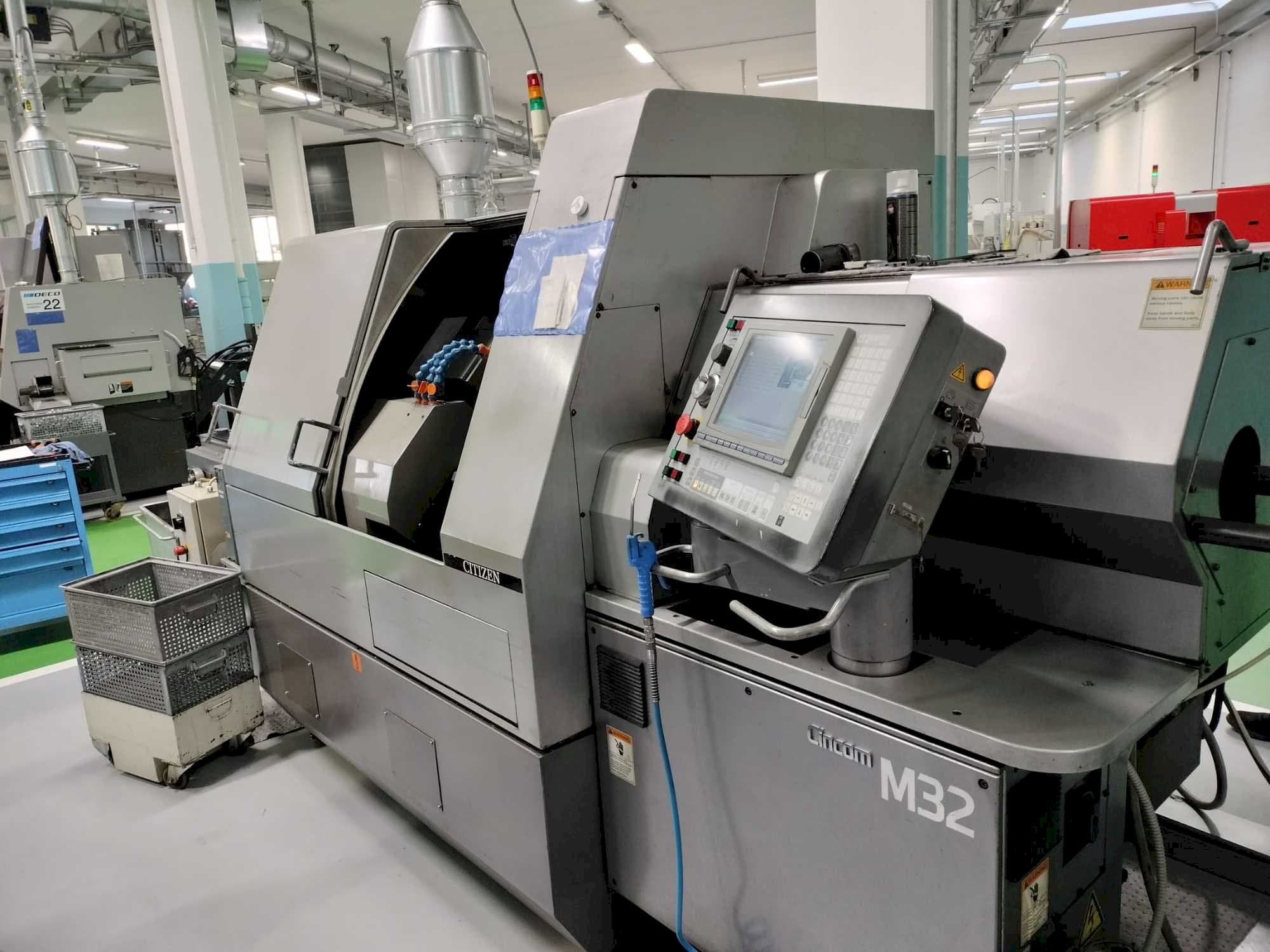

Front view of Citizen CINCOM M32V machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Citizen CINCOM M32V

Citizen - CINCOM M32VIT-TUR-CIT-2008-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Citizen CINCOM M32V lathe

This Citizen CINCOM M32V lathe was built in the year 2008. It is equipped with a Mitsubishi control unit. The machine has a spindle speed of 8000 rpm, max. machining diameter (D) of 32 mm, max. machining length (L) of 320 mm, max. front drilling diameter of 12 mm.

Overview

brand: Citizen
year: 2008
MODEL: CINCOM M32V
application type: Turning
Location: Italy
machine type: Swiss Type Turning Machine
availability: Sold
control unit brand: MITSUBISHI

Technical Information - Citizen CINCOM M32V

General Data

Machine weight: 3550 kg

Control Unit

Brand: MITSUBISHI

Main drive

Spindle speed range: 8000 1/MIN

Media

Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Machining diameter (d) 32mm
- - Max. Machining length (l) 320mm
- - Max. Front drilling diameter 12mm
- - Max. Front tapping diameter (tap, die) m10
- - Spindle through-hole diameter 36mm
- - Max. Drilling diameter for the gang rotary tool 8mm
- - Max. Tapping diameter for the gang rotary tool m6
- - Spindle speed of the gang rotary tool 6000 rpm
- - Max. Drilling diameter for the turret rotary tool 10mm
- - Max. Tapping diameter for the turret rotary tool m8, high pressure 50 bar
Qualitative Machine Benefits:
- - Spindle speed of the turret rotary tool 6000 rpm
- - Max. Drilling diameter for the back spindle 10mm
- - Max. Tapping diameter for the back spindle m10
- - Back spindle speed 8000 rpm
- - Max. Chuck diameter of the back spindle 32mm
- - Max. Protrusion length of the back spindle workpiece 65mm
- - Max. Protrusion length 145mm
- - Number of tools to be mounted 25
- - Gang tool post 5, gang rotary tool 5, gang b axis rotary tool 0
- - Number of turret station 10, back tool post 5

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
