Citizen - M32VNL-TUR-CIT-2010-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used Citizen M32V For Sale | gindumac.com

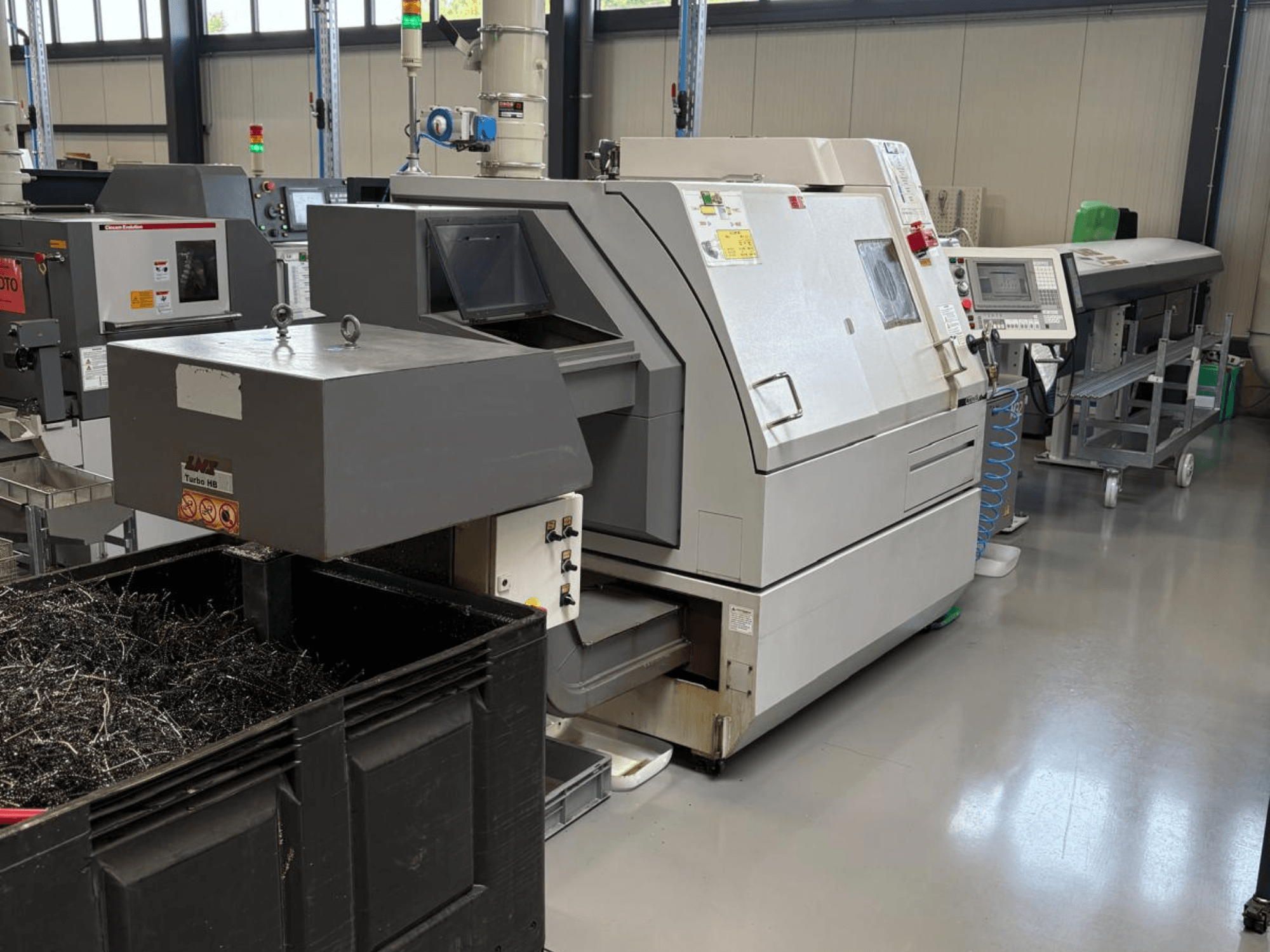

This 12-axis Citizen M32V was manufactured in 2010, featuring a max machining diameter of 32mm and turning length of 320mm on both main and sub spindles. It includes a bar loader, LNS chip conveyor, high-pressure pump, and various accessories. If you are looking to get high-quality turning capabilities consider the Citizen M32V machine we have for sale. Contact us for more information about this machine.
Overview
- brand: Citizen
- year: 2010
- MODEL: M32V
- production hours: 46476
- application type: Turning
- Location: Netherlands
- machine type: Swiss Type Turning Machine
- control unit brand: MITSUBISHI
Technical Information - Citizen M32V
Control Unit
- Control Brand: MITSUBISHI
- Control Model: Meldas 635
Movement
- Number of Axes: 12
Technical Specification
- Spindle Speed: 8000 RPM
Additional Information
Axis strokes:
X1: 108 mm
Z1: 325 mm
Y1: 275 mm
X2: 120.5 mm
Z2: 202 mm
Y2: 45 mm
X3: 235 mm
Z3: 410 mm
Main spindle:
Max. machining diameter: 32 mm
Max. turning length: 320 mm
Through-hole diameter: 36 mm
Sub spindle:
Max. machining diameter: 32 mm
Spindle speed: 7,000 rpm
Rotary tools:
Speed: 5,000 rpm
Number at vertical tool holder: 4
Stations at vertical tool holder: 10
Additional equipment
Bar loader
LNS chip conveyor
High-pressure pump
Holders and collet chuck (numerous accessories)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
