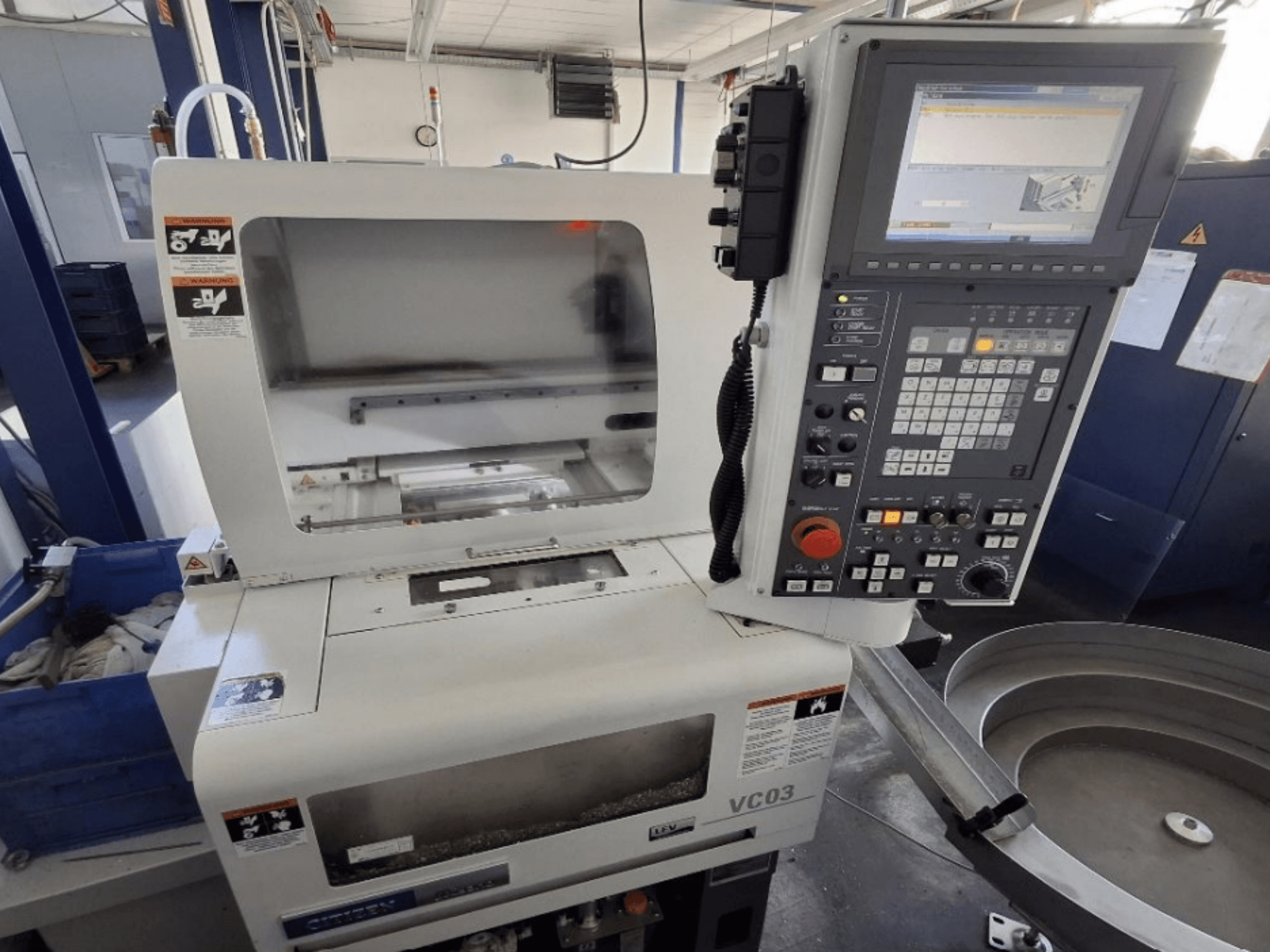

Horizontal turning machine manufactured in 2017. This Citizen MIYANO VC-03 features a maximum turning diameter of 45 mm and a turning length of 50 mm. It includes a rapid traverse rate of 20 m/min for the X-axis and 30 m/min for the Z-axis, along with a robust spindle speed of up to 8000 min⁻¹. If you are looking to get high-quality turning capabilities, consider the Citizen MIYANO VC-03 machine we have for sale. Contact us for further details.
Overview
- brand: Citizen
- year: 2017
- MODEL: MIYANO VC-03
- production hours: 3888
- application type: Turning
- Location: Germany
- machine type: Horizontal Turning Machine
- control unit brand: MITSUBISHI
Technical Information - Citizen MIYANO VC-03
Control Unit
- Control Brand: MITSUBISHI
- Control Model: FCA 70 LPC-V (M70V series)
Dimensions
- Machine Height: 1705 mm
- Machine Length: 1683 mm
- Machine Weight: 1500 kg
- Machine Width: 700 mm
Movement
- Number of Axes: 2
- X-axis Travel: 180 mm
- Z-axis Travel: 200 mm
Technical Specification
- Counter Spindle: No
- Driven Tools: No
- Spindle Power: 3.7 kW
- Spindle Speed: 8000 RPM
Additional Information
- Operating Hours (Power ON): 8494 h
- Cutting Time / Operating Time: 3888 h
- Number of Processed Workpieces: 8536
- Input Voltage: AC 200 V, 3 Phase, 50/60 Hz
- Rated Power Capacity: 11 kVA
- Full Load Current: 32 A
- Short Circuit Interrupt Rating: 2.5 kA
- Max. Turning Diameter: φ45 mm (High-precision air chuck) / φ40 mm (Draw collet chuck)
- Max. Turning Length: 50 mm
- Max. Turning Length with Loader: 40 mm (Fixed: 35 mm)
- Spindle Nose Form: Extra flat
- Max. Spindle Speed: 8000 min⁻¹ (Standard: 60 - 6000 min⁻¹)
- Spindle Draw tube ID / Through-hole Diameter: Ø10 mm
- Number of Tool Slides: 1
- Slide Form: Comb tool type, horizontal
- Number of Controlled Axes: 2 Axes (X and Z axes simultaneously)
- X-Axis Feed Motor: 2.7 kW
- Z-Axis Feed Motor: 5.8 kW
- Rapid Traverse Rate (X-Axis): 20 m/min
- Rapid Traverse Rate (Z-Axis): 30 m/min
- Tool Size / Shank Size: 20 mm (Options: 10, 12, 16)
- Number of Tools (Standard): 5
- Tool Boring Hole Size: φ20 mm
- Coolant Tank Capacity: 90 Liters
- Coolant Pump Flow Rate: 110 / 145 L/min (50/60 Hz)
- Coolant Pump Power: 0.18 kW
- Pneumatic Air Supply Pressure: 0.5 MPa
- Lubrication Unit Tank Capacity: 0.8 Liters
- Lubrication Pump Type: MLZ (Discharge amount per shot: 1.5 - 2.5 ccm)
- Spindle Center Line Height: 875 mm
- Loader Type: Gantry Loader (R Type) - 2 controlled axes, 1 slide, 2 grippers
- Loader Max. Workpiece Size: φ40 x 40 mm
- Loader Max. Workpiece Weight: 250 g
- Loader Feed Speed (Left/Right): 108 m/min
- Loader Feed Speed (Up/Down): 90 m/min
- Loader Drive System: Rack and pinion drive
- Automation Equipment optional not included: Feeding system by Fa. Steyer, separating unit/feeding via conveyor belt, discharge conveyor belt with finished part buffer
- Included Features: Oscillating cutting (LFV), Pneumatic power chuck, Tool holders, Splash guard interlock, Machine light, Air blow (Tool & Spindle), CE specification, Coolant level switch, Automatic power shut off, LED warning light
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
