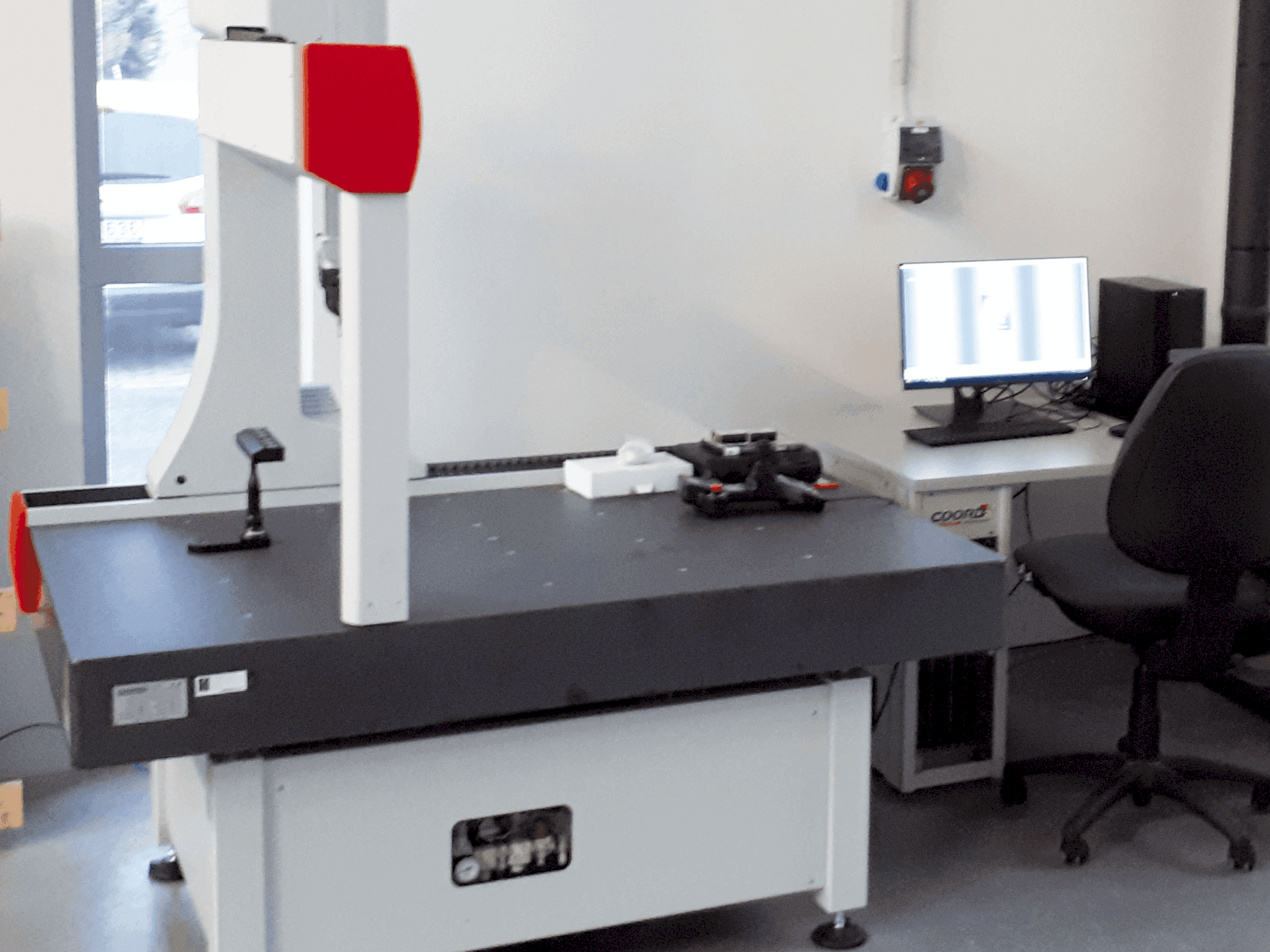

Coord3 - ARES NT-L 10.7.5 CNCHU-MEA-COO-2018-00001

Additional Equipment

• - Air-cooled drying system
• - CE compliance certification
• - Equipped with an air filter and regulator system
• - High-precision RSF optical scales and sensors

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Air cushion bearings for structure support and increased measurement accuracy
  • - Pneumatic counterbalance for the vertical probe holder
  • - Automatic fall protection for head in case of air outage
  • - All geometric and measurement checks executed under stable temperature conditions (20°c) as per iso 10360/2 standards
  • - Resolution: 0. 0001 mm
  • - Measurement accuracy: iso 10360/2 mpee = 2. 1 + 3. 0l/1000 μm
  • - Maximum speed in 3d measurement: 500 mm/sec
  • - Acceleration in 3d measurement: 1700 mm/sec²

Extra information

• - Control Unit RENISHAW UCC controller kit TouchDMIS measurement software DELL AIO computer with 24” LCD TouchScreen monitor Tools RENISHAW PH20 motorized probe head 3 RENISHAW TP20 magnetic probe modules RENISHAW TCR20 probe changer RENISHAW 23-piece stylus kit 25 mm diameter ceramic calibration sphere with certification Mount Position (Assembly) Machine frame made from aluminum alloy Slide surfaces hardened with a special process Black granite worktable with high wear resistance and threaded holes
