DAEWOO Mynx 540

Photo Gallery

DAEWOO - Mynx 540ES-MIL-DAE-2002-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

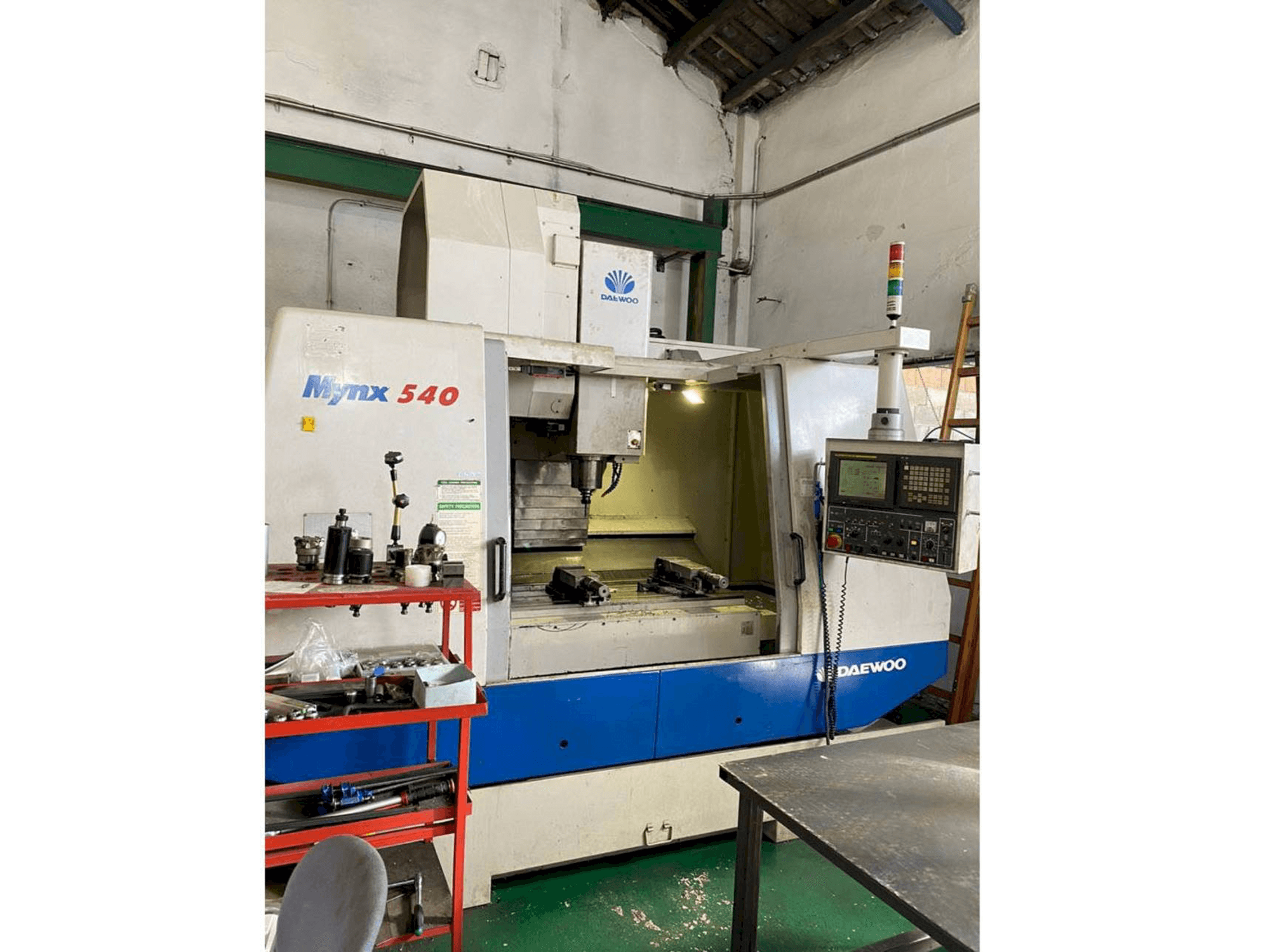

This DAEWOO Mynx 540 Vertical Machining Center was manufactured in 2002. Equipped with a Fanuc 21 iM digital Control unit. This machine can operate with a spindle speed range 40 - 8000 rpm. The machining center has 3 axes, but includes a Nikken rotary table, with this rotary table has 4 axes. It has been overhauled in the last few months, it has replaced the tool change encoder and the 3 coolant pumps and it has changed the bed turcite and the grinding of the bed.

Overview

brand: DAEWOO
year: 2002
MODEL: Mynx 540
production hours: 52504
application type: Milling
Location: Spain
machine type: Vertical Machining Centre
control unit brand: FANUC

Technical Information - DAEWOO Mynx 540

Control Unit

Control Brand: FANUC
Control Model: 21 iM digital

Dimensions

Table Length: 1200 mm
Table Width: 500 mm

Movement

Number of Axes: 4
X-axis Travel: 1020 mm
Y-axis Travel: 510 mm
Z-axis Travel: 625 mm

Technical Specification

Max. Tool Weight: 8 kg
Number of Tools: 30
Spindle Speed: 8000 RPM
Through-spindle Coolant: Yes

Additional Information

Additional equipment

Nikken 4º axis

Machine Benefits

Qualitative Machine Benefits

Change of turcite of bench
Bench grinding and scraping
Head straps change
Tool changer encoder change
Repair and replacement of the 3 coolant pumps
Replaced high pressure coolant pump
Preloaded spindles
New greasers and greasing system

Technical Machine Benefits

X = 1020
Internal cooling (20 bar)
4ºaxis

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
