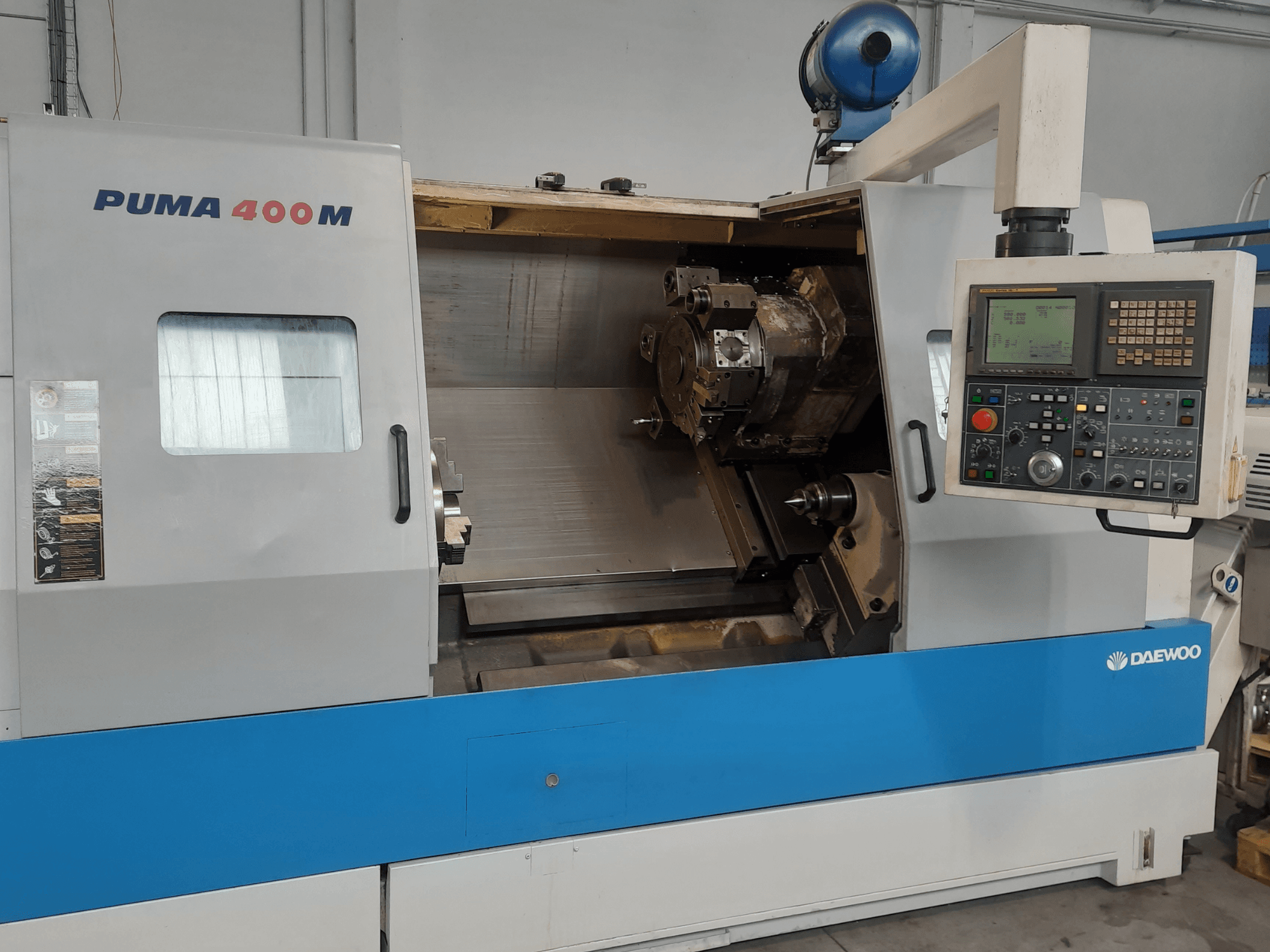

DAEWOO - PUMA 400MBIT-TUR-DAE-2002-00003

Working capacity:

• Swing over bed: 700 mm

• Swing over saddle: 480 mm

• Recommended machining diameter: 315 mm

• Maximum machining diameter: 460 mm

• Maximum machining length: 1,050 mm

• Draw tube diameter: 91 mm

Axis travel:

• C: 360° (indexing increment 0.001°)

Main spindle:

• Chuck diameter: 304 mm

• Spindle nose: ASA A2-8

• Spindle bore: 102 mm

• Front spindle bearing diameter: 160 mm

• Spindle motor power: 22/30 kW

Tool turret:

• Tool holder type: VDI 50

• External tool height: 25 mm

• Maximum boring bar diameter: 50 mm

• Turret indexing time: 0.25 s

Driven tools:

• Speed range: 30–3,000 rpm

• Motor power: 3.7/5.5 kW

• Maximum collet capacity: 25 mm

• Maximum tapping capacity: M20

Feed rates:

• X-axis rapid traverse: 16,000 mm/min

• Z-axis rapid traverse: 20,000 mm/min

• X-axis feed motor power: 3.8 kW

• Z-axis feed motor power: 5.0 kW

Tailstock:

• Quill diameter: 120 mm

• Quill taper: MT6

• Quill travel: 120 mm

Electrical data:

• Power requirement: 50 kVA

• Coolant pump power: 0.24 kW

Floor space: 3,890 × 2,390 mm
