DAEWOO - PUMA V550 DE-TUR-DAE-2003-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used DAEWOO PUMA V550 For Sale | gindumac.com

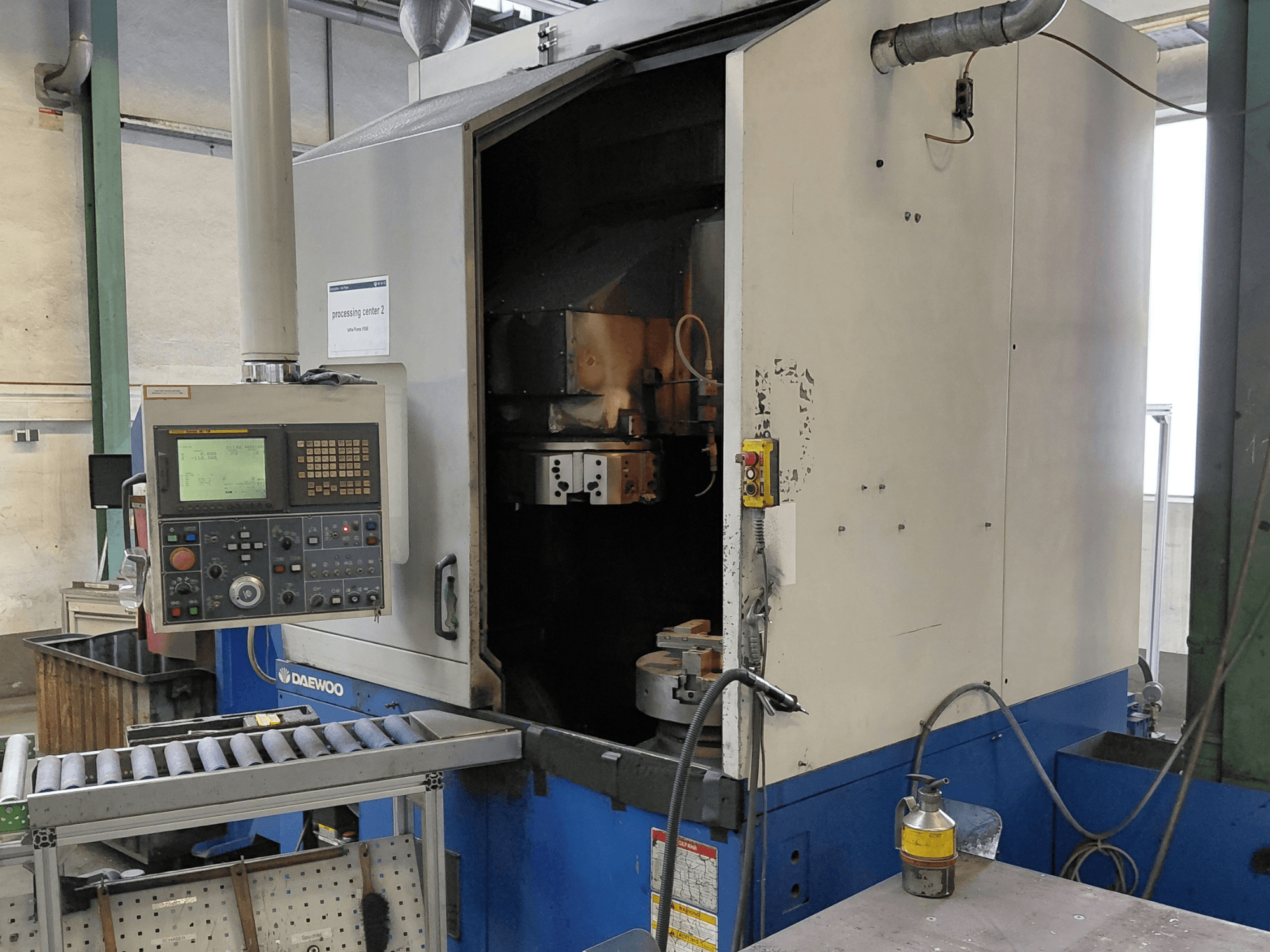

Vertical turning machine manufactured in 2003. This DAEWOO PUMA V550 features an X-axis travel of approximately 390 mm and a Z-axis travel of approximately 780 mm. With a robust machine weight of 9000 kg, it is designed for durability and performance. If you are looking to get high-quality turning capabilities, consider the DAEWOO PUMA V550 machine we have for sale. Contact us for further details regarding this machine.
Overview
- brand: DAEWOO
- year: 2003
- MODEL: PUMA V550
- production hours: 232
- application type: Turning
- Location: Germany
- machine type: Vertical Turning Machine
Technical Information - DAEWOO PUMA V550
Dimensions
- Machine Weight: 9000 kg
Movement
- Number of Axes: 2
- X-axis Travel: 390 mm
- Z-axis Travel: 780 mm
Technical Specification
- Driven Tools: No
- Spindle Power: 30 kW
Additional Information
Electrical supply: AC 380/400 V, 3-phase, PE, 50/60 Hz
Rated power: 54.04 kVA
Current at full load: 78.01 A
Interrupting current: 9000 A
Electrical schematic version: PV15H688A03
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
