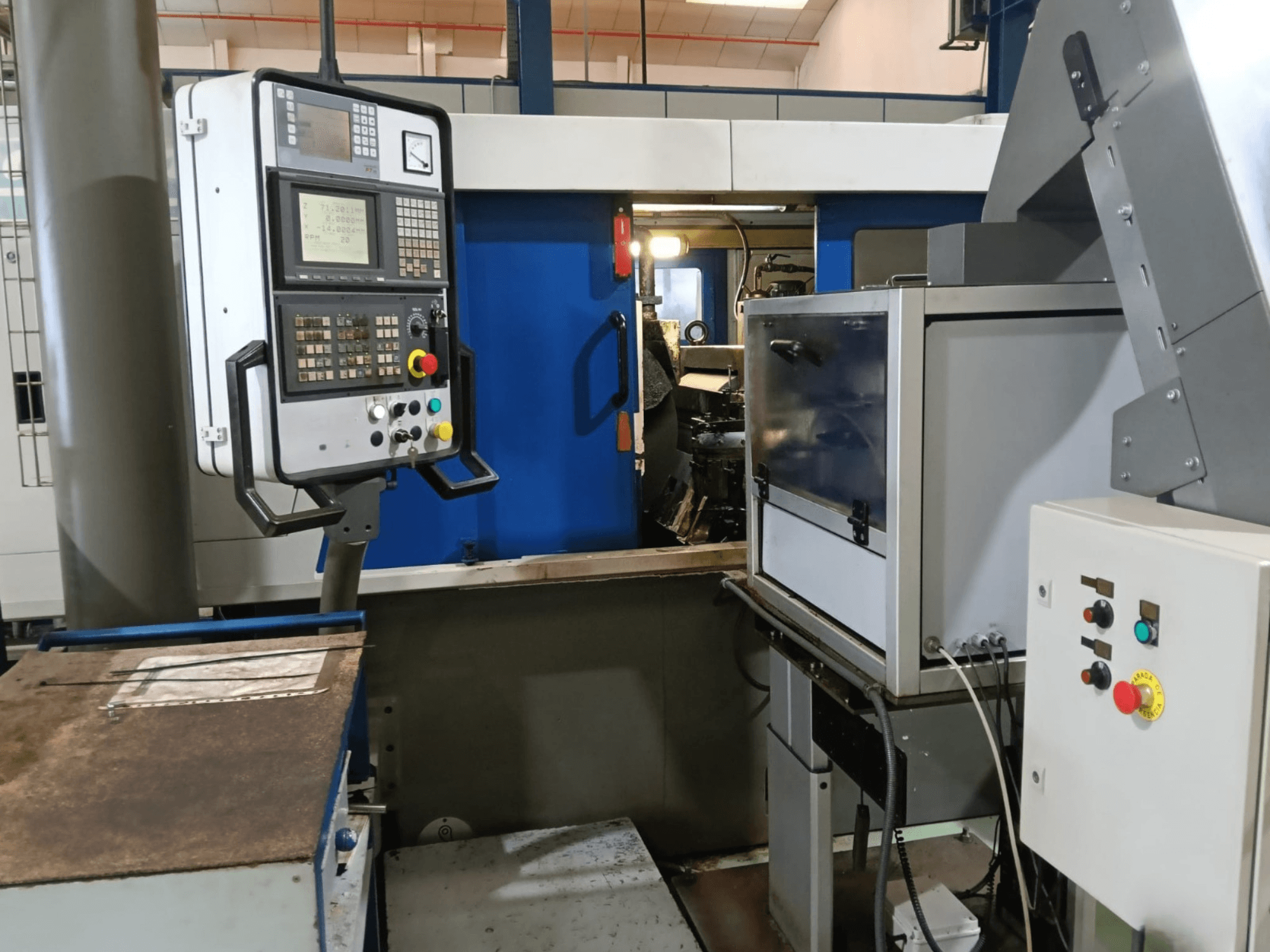

Centerless grinding machine manufactured in 2008. This DANOBAT 327 MDA features a maximum wheel width for plunge grinding of 500 mm and a peripheral wheel speed of 50 m/s. It has a grinding wheel motor power of 55 kW and a regulating wheel speed that is infinitely variable from 10 to 225 min⁻¹. If you are looking to get high-quality grinding capabilities, consider the DANOBAT 327 MDA machine we have for sale. Contact us for further details.
Overview
- brand: DANOBAT
- year: 2008
- MODEL: 327 MDA
- application type: Grinding
- Location: Spain
- machine type: Centerless Grinding Machine
Technical Information - DANOBAT 327 MDA
Dimensions
- Machine Height: 2275 mm
- Machine Length: 7033 mm
- Machine Weight: 13400 kg
- Machine Width: 4040 mm
Movement
- Number of Axes: 2
Additional Information
Gross mass: 14,500 kg (including packaging)
Opening between wheels: 3 to 200 mm (with new wheels)
Maximum wheel width for plunge grinding: 500 mm
Wheel axis height from floor: 1150 mm
Grinding wheel dimensions (OD x width x ID): 650 x 500 x 304.8 mm
Minimum grinding wheel OD: 510 mm
Peripheral wheel speed: constant 50 m/s
Regulating wheel dimensions (OD x width x ID): 350 x 500 x 203.2 mm
Minimum regulating wheel OD: 275 mm
Regulating wheel speed: stepless 10 to 225 rpm
Regulating wheel head inclination (part feed): -5° to +5°
Regulating wheel carriage swivel (taper correction): -2° to +5°
Maximum wheel profile depth: 12 mm
Maximum profile inclination (via tracer template): 30°
Dresser feed rate (grinding wheel): 100 to 300 mm/min
Regulating wheel dressing speed: 225 rpm
Dresser height adjustment: +25 / -20 mm
Grinding wheel motor power: 55 kW
Regulating wheel motor torque: 8 Nm
Dresser motors (each): 0.55 kW
Grinding head lubrication pump motor: 0.37 kW
Grinding head lubrication system: 100 l capacity, 6 l/min flow, 2 MPa (20 bar) safety valve, oil FD-5 (ISO 3498)
General lubrication system: 6 l capacity, oil G-68 (ISO 3498)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
