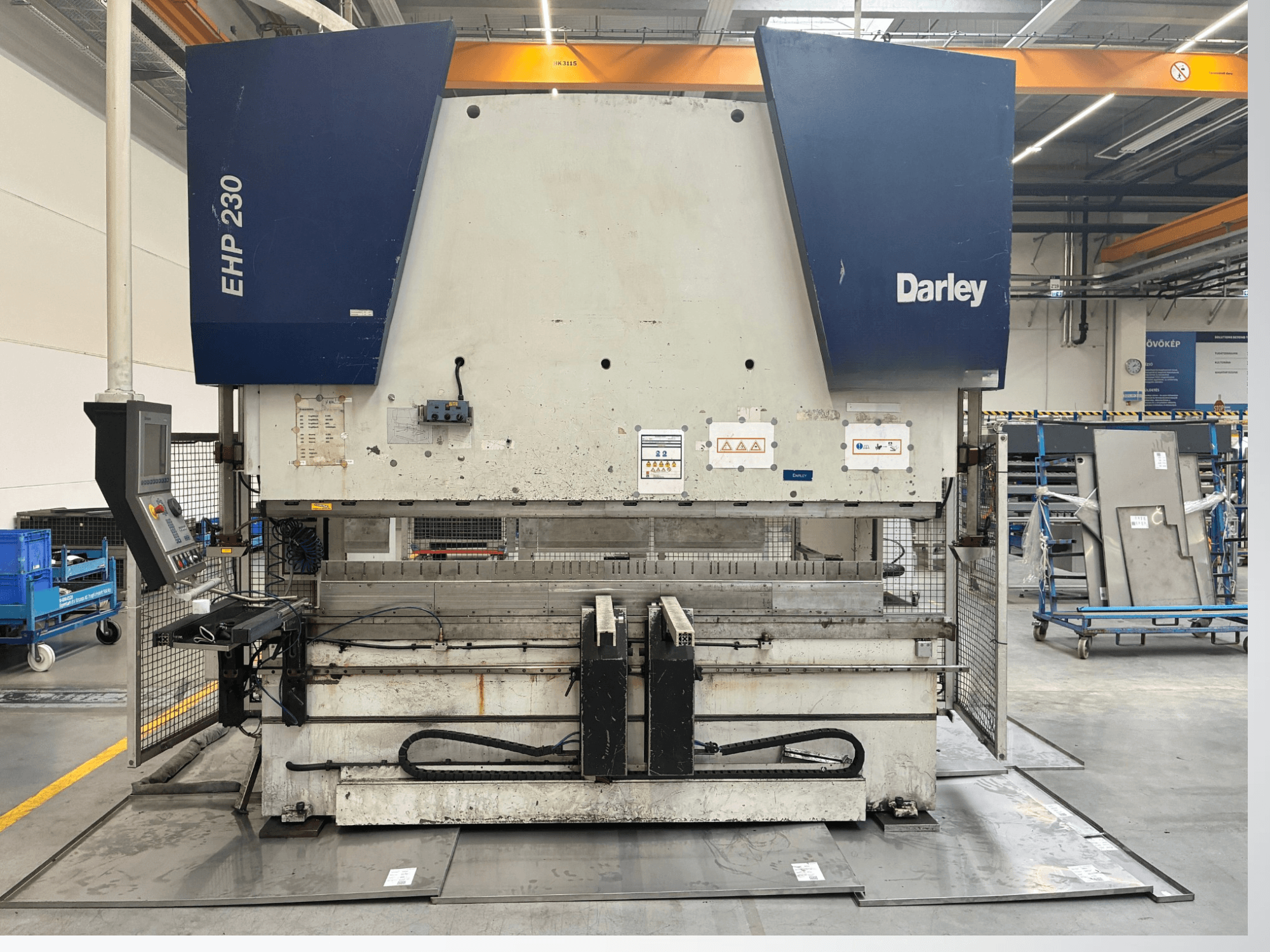

Darley - EHP-LS 230.31/25 HU-BEN-DAR-2003-00001

Technical specifications

• Max hydraulic pressure: 250–300 bar

• Distance between columns: 2550 mm

• Throat depth: 400 mm

• Table width: 170 mm

• Table height: 900 mm

• Max opening: 500 mm

• Rapid approach speed: 120 / 140 mm/s

• Working speed: 10 mm/s

• Oil tank capacity: 200 L

• Main drive power: 24.5 kW

• Max power consumption: approx. 27–32 kW

• Noise level: 72–78 dB(A)

Backgauge

• X-axis range: 0–800 mm

• Z-axis range: 80–2150 mm

• R-axis height adjustment: 190 mm

• Accuracy: ±0.05 mm (X/Z), 0.1 mm (R)

• Positioning speed:

  • X axis: up to 400 mm/s

  • Z axis: up to 250 mm/s

  • R axis: up to 100 mm/s

• Number of backgauge fingers: 2 (expandable)

• Axes configuration: 6 axes (X1, X2, Z1, Z2, R1, R2)

Equipment / Features

• CNC control (commonly Delem DA series)

• CNC crowning (table compensation)

• Independent Y1/Y2 hydraulic axes

• Backgauge with X, R, Z axes

• WILA hydraulic upper clamping

• Pneumatic lower clamping

• Optional front laser safety system
