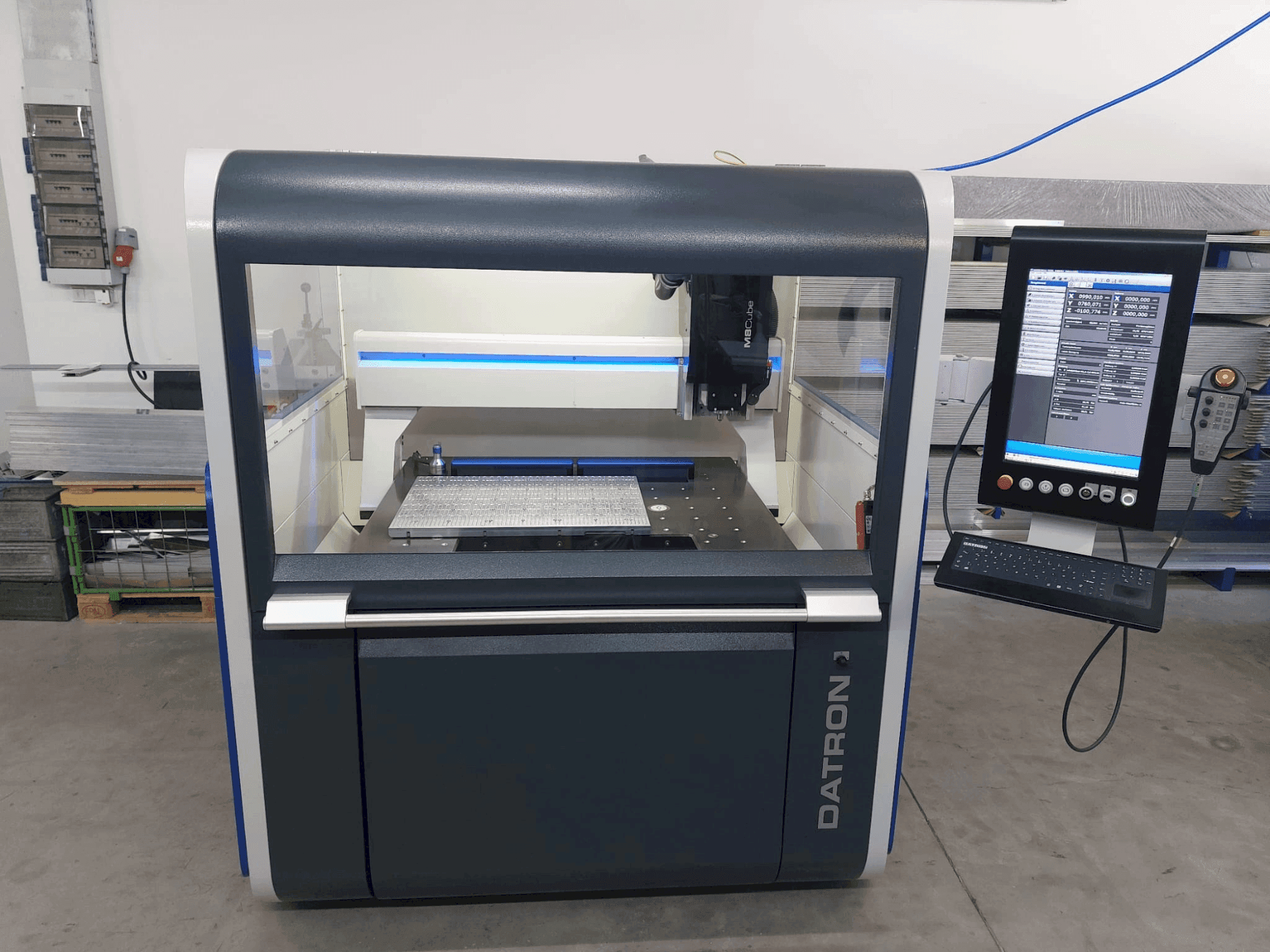

This Datron M8 Cube was manufactured in 2015. It features a 2 kW HF spindle adjustable from 1,000 to 60,000 rpm, complemented by a HIB HF spindle cooling unit. It includes dual 15-station tool changers, a 3D probe, and a precision tool length probe. The vacuum table measures 700 mm x 500 mm, supported by a Busch R5 vacuum pump. Software V9 offers extensive programmability and tool management options. Contact us for more information about this machine.
Overview
- brand: Datron
- year: 2015
- MODEL: M8 Cube
- production hours: 1689
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
Technical Information - Datron M8 Cube
Technical Specification
- Spindle Speed: 60000 RPM
Additional Information
Machine Benefits
Technical Machine Benefits
- Hf spindle cooling unit
- Vacuum table: 700 mm x 500 mm
- 2-station vacuum distributor with automatic valves
- Busch r5 vacuum pump
- 2 x 15-station tool changers
- 3d probe
- Precision tool length probe
- Microjet minimum quantity lubrication system with 4 nozzle spray unit
- The spindle has a running time of 1493 hours. The machine running time (axes in motion) is 1689 hours.
Extra Information
Software Version 9 with Almost All Software Options Enabled HPGL In, Drill Data In, CL-Print In Menu Items Can Be Deactivated/Enabled Libraries, Polygon Sensor XYZ Import/Export Tool Data/Position Data ArcA and ArcI Macros Execute in the Panel, User-Definable Thread Tables Macro Dynamics, Tool Type Management Protected Areas, Tool Monitoring Path + Time Smoothing, ISO In/Out (Din / Iso - G-code Programs Can Be Read In) 30 position tool changer equipped with a 700 mm x 500 mm vacuum plate.
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
