➤ Used DECKEL DMF 360 linear For sale | gindumac.com

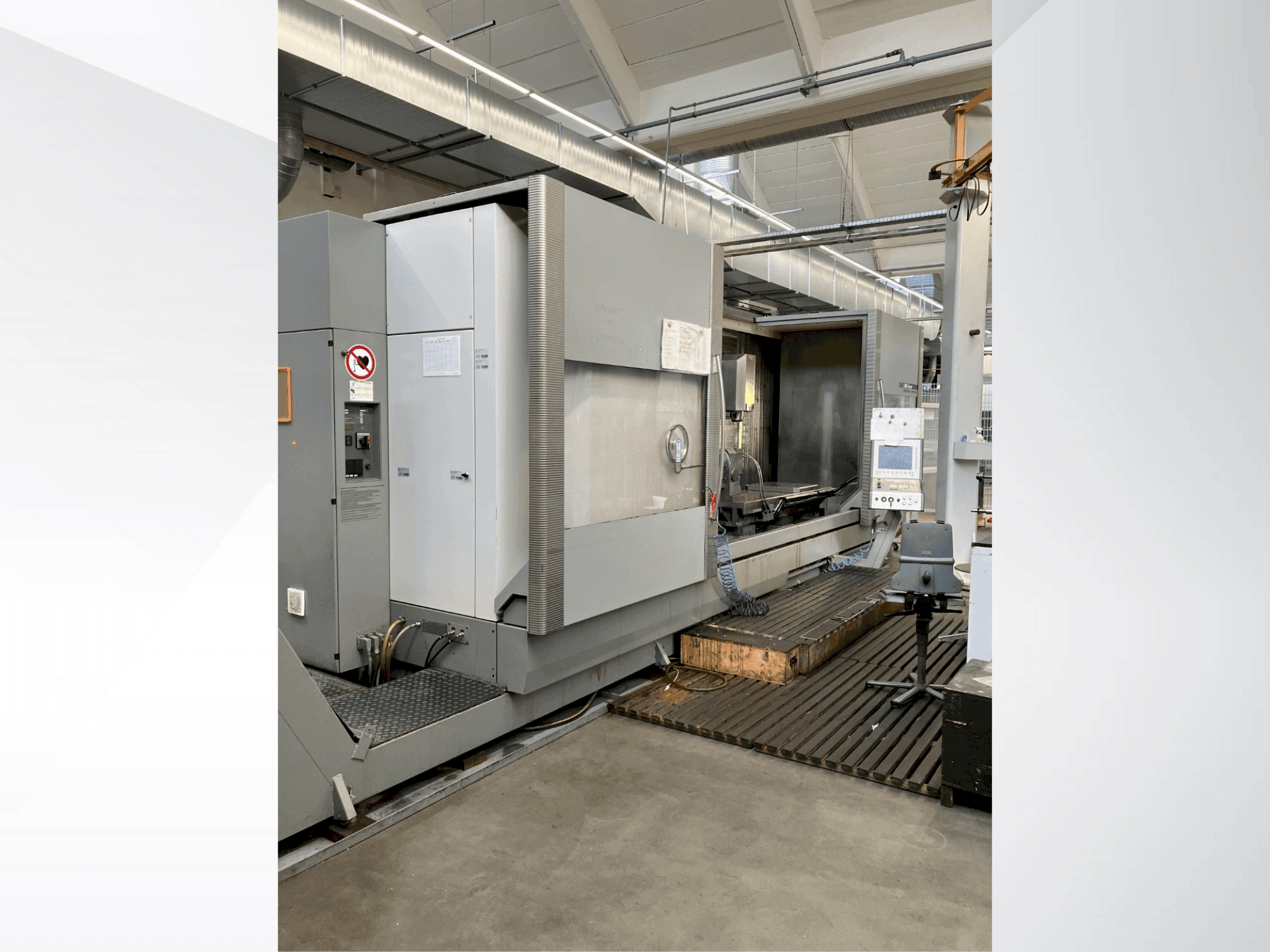

This 5-axis DECKEL DMF 360 linear was manufactured in 2004. A robust vertical machining center featuring a Siemens 840D control, HSK-A63 spindle with speeds up to 18,000 rpm, and a large work table of 4,200 x 900 mm. It supports a maximum workpiece weight of 4,200 kg and includes a 120-position tool magazine. Ideal for high-precision tasks, the DECKEL DMF 360 linear machine we have for sale. Contact us for more information.

Overview

brand: DECKEL
year: 2004
MODEL: DMF 360 linear
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Sold
control unit brand: SIEMENS

Technical Information - DECKEL DMF 360 linear

General Data

Measurements width: 9250 MM
Measurements depth: 5700 MM
Measurements height: 3280 MM
Machine weight: 28,000 KG

Control Unit

Model: 840D
Brand: SIEMENS

Main drive

Spindle speed range: 20 - 18,000 1/MIN
Tool taper: HSK-A63
Number of axis: 5

Movement

X-AXIS Movement: 3600 mm
X-AXIS Rapid traverse: 100 m/min
Y-AXIS Movement: 900 mm
Y-AXIS Rapid traverse: 60 m/min
Z-AXIS Movement: 820 mm
Z-AXIS Rapid traverse: 60 m/min

Table

Outer length: 4200 mm
Outer width: 900 mm
TSlots size: 18H7
Number of tslots: 9
Distance between: 100 mm
Table load: 4200 kg

Additional Information

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
