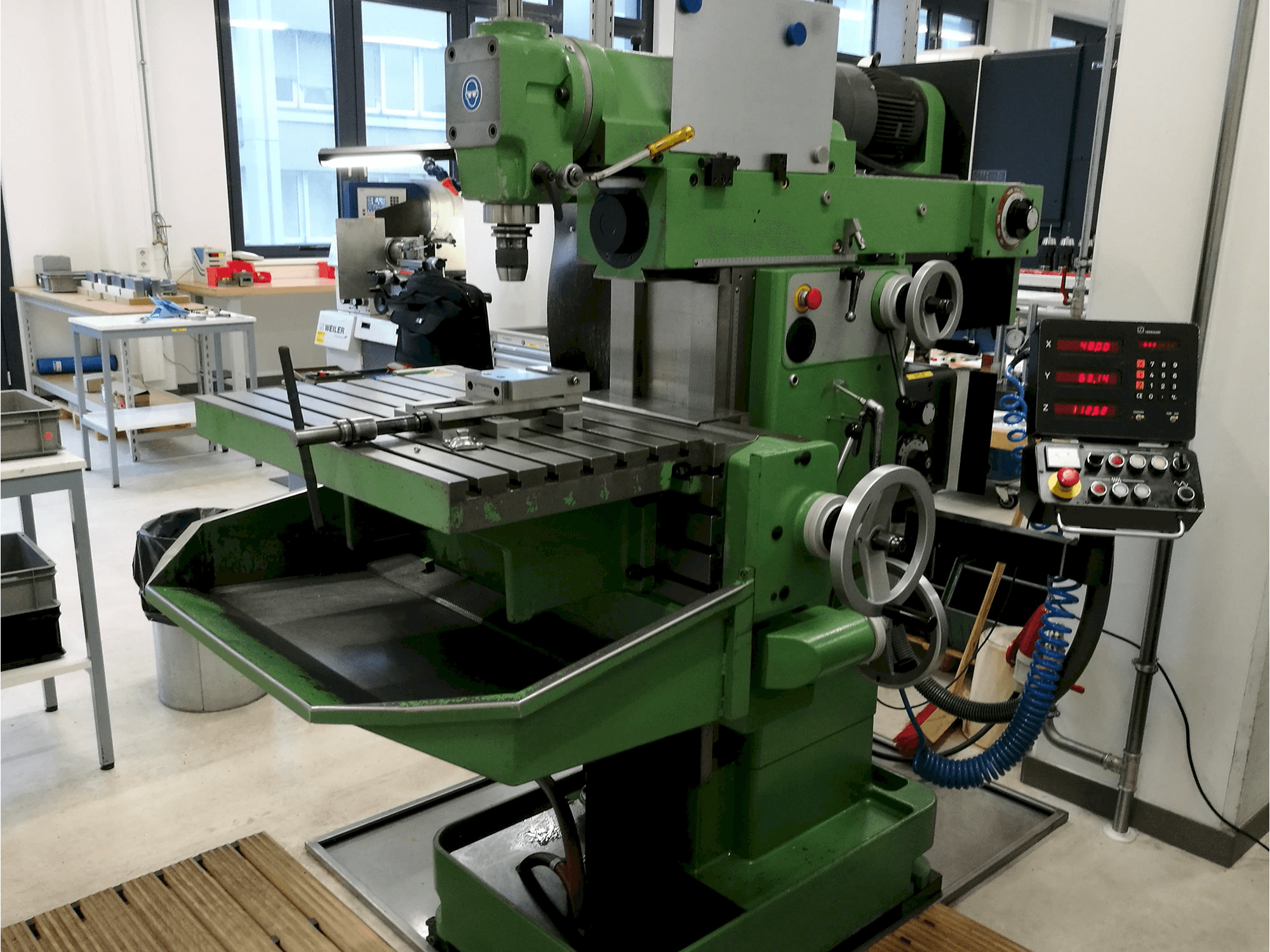

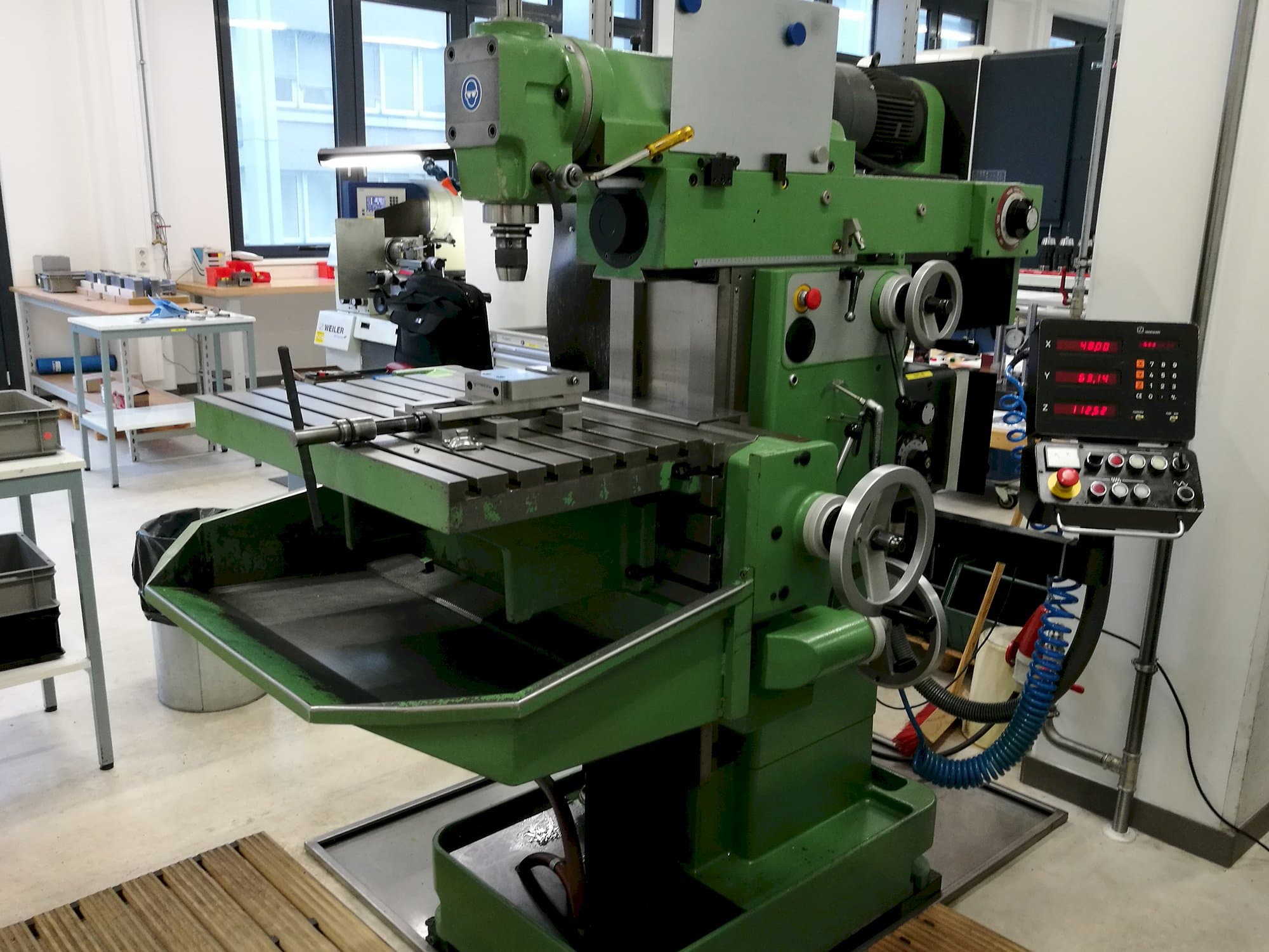

DECKEL FP4M Milling Machine

This DECKEL FP4M Milling Machine was made in 1984 in Germany and has a production record of 17500 hours since then. This well mantained machine incorporates a spindle speed range of 50-2500 rpm. It stands out for its versatility, as it has worked with steel, copper, aluminum and plastics during the past.

Overview

brand: DECKEL
year: 1984
MODEL: FP4M
production hours: 17500
application type: Milling
Location: Austria
machine type: Milling Machine
availability: Sold
GINDUMAC ID: AT-MIL-DEC-1984-00001

Technical Information

General Data

Measurements width: 2000 mm
Measurements depth: 1800 mm
Measurements height: 1800 mm

Main drive

Number of spindles: 1
Spindle speed range: 50-2500 rpm 1/MIN

Movement

X-AXIS Movement: 500 mm
Y-AXIS Movement: 400 mm
Z-AXIS Movement: 400 mm

Workpiece

Workpiece weight: 600 kg

Table

Outer length: 800 mm
Outer width: 460 mm
Number of tslots: 4
Distance between: 63 mm

Tools

Type of tool holder: SK40

Media

Main electronic connection: 380 V
Power consumption: 9.5 kVA

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
