- ➤ Used DECKEL MAHO DMC 60 U For Sale | gindumac.com

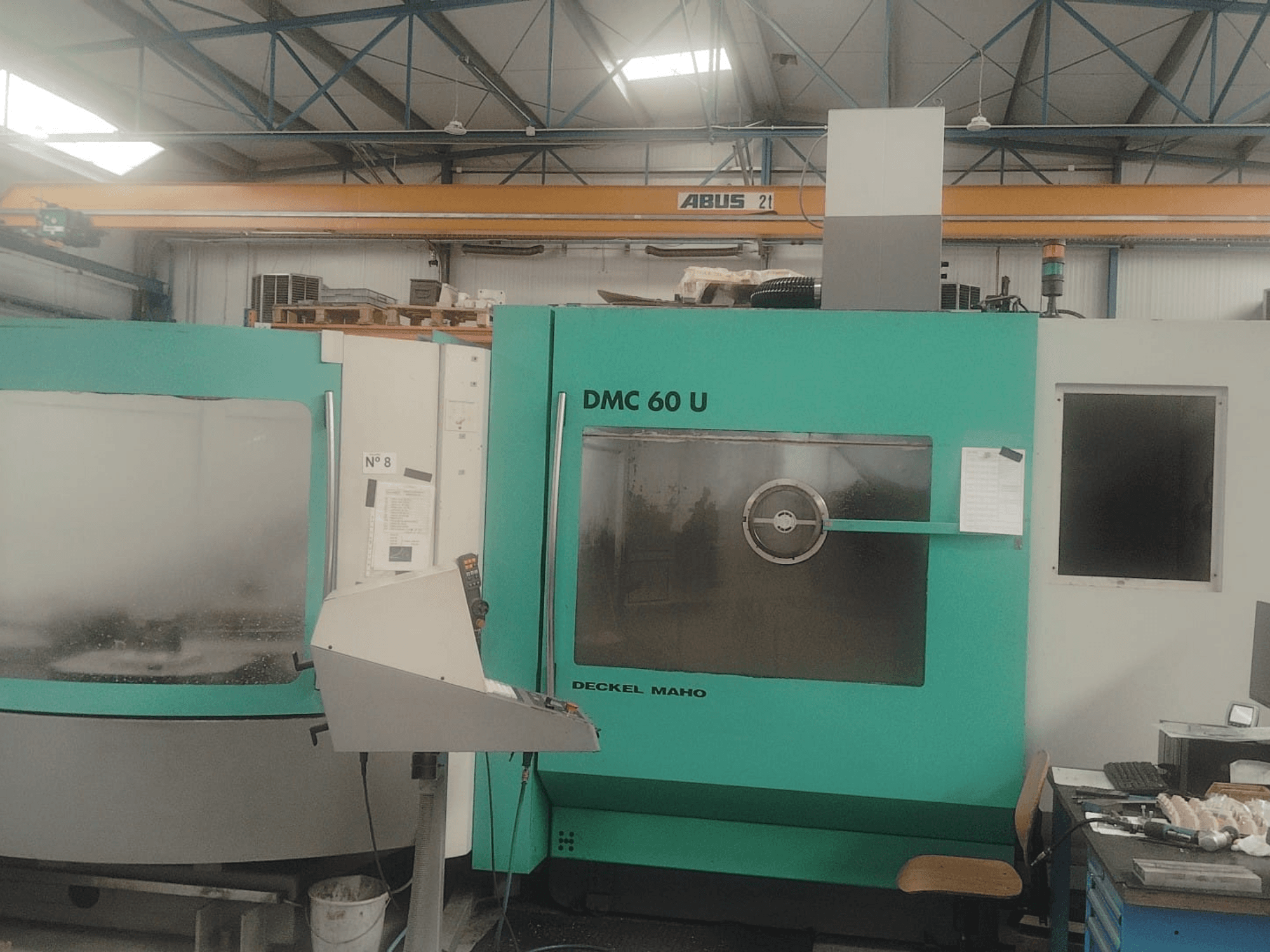

This 3-axis DECKEL MAHO DMC 60 U was manufactured in 1994. It features impressive X, Y, and Z-axis travels of 600 mm, 700 mm, and 600 mm respectively, along with a maximum spindle speed of 18,000 rpm. The machine includes a robust table size of 630 x 500 mm and a maximum workpiece weight capacity of 800 kg. If you are looking to get high-quality milling capabilities, consider the DECKEL MAHO DMC 60 U mill-turn centre we have for sale. Contact us for further details.
Overview
- brand: DECKEL MAHO
- year: 1994
- MODEL: DMC 60 U
- application type: Milling
- Location: Spain
- machine type: Mill-Turn Centre
Technical Information - DECKEL MAHO DMC 60 U
Dimensions
- Machine Height: 2700 mm
- Machine Length: 4500 mm
- Machine Weight: 11700 kg
- Machine Width: 4500 mm
Movement
- Number of Axes: 3
- X-axis Travel: 600 mm
- Y-axis Travel: 700 mm
- Z-axis Travel: 600 mm
Technical Specification
- Spindle Power: 28 kW
- Spindle Speed: 12000 RPM
Additional Information
Rapid traverse (X/Y/Z): up to 30 m/min
Table: NC rotary-tilting; size 630 × 500 mm;
Spindle: up to 28 kW;
Tool magazine/ATC: automatic tool changer
Machining capabilities: simultaneous 3-axis milling; contouring; drilling; tapping; boring; complex surface machining; aerospace and automotive component manufacturing
Construction/design: high-rigidity universal machining centre; integrated rotary-tilting table; full 3-axis interpolation; precision linear guideways
Dimensions (approx.): length 4,500 mm; width 2,500–4,500 mm; height 2,500–2,700 mm
Typical applications: aerospace components; medical parts; tool & die manufacturing; automotive components; precision mechanical engineering
Additional equipment
Internal coolant system
Chip conveyor
Touch probe
Tool setter
Tool measurement system (Blum / Renishaw, depending on machine)
Electronic handwheel
Automatic pallet changer (RS4 versions)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
