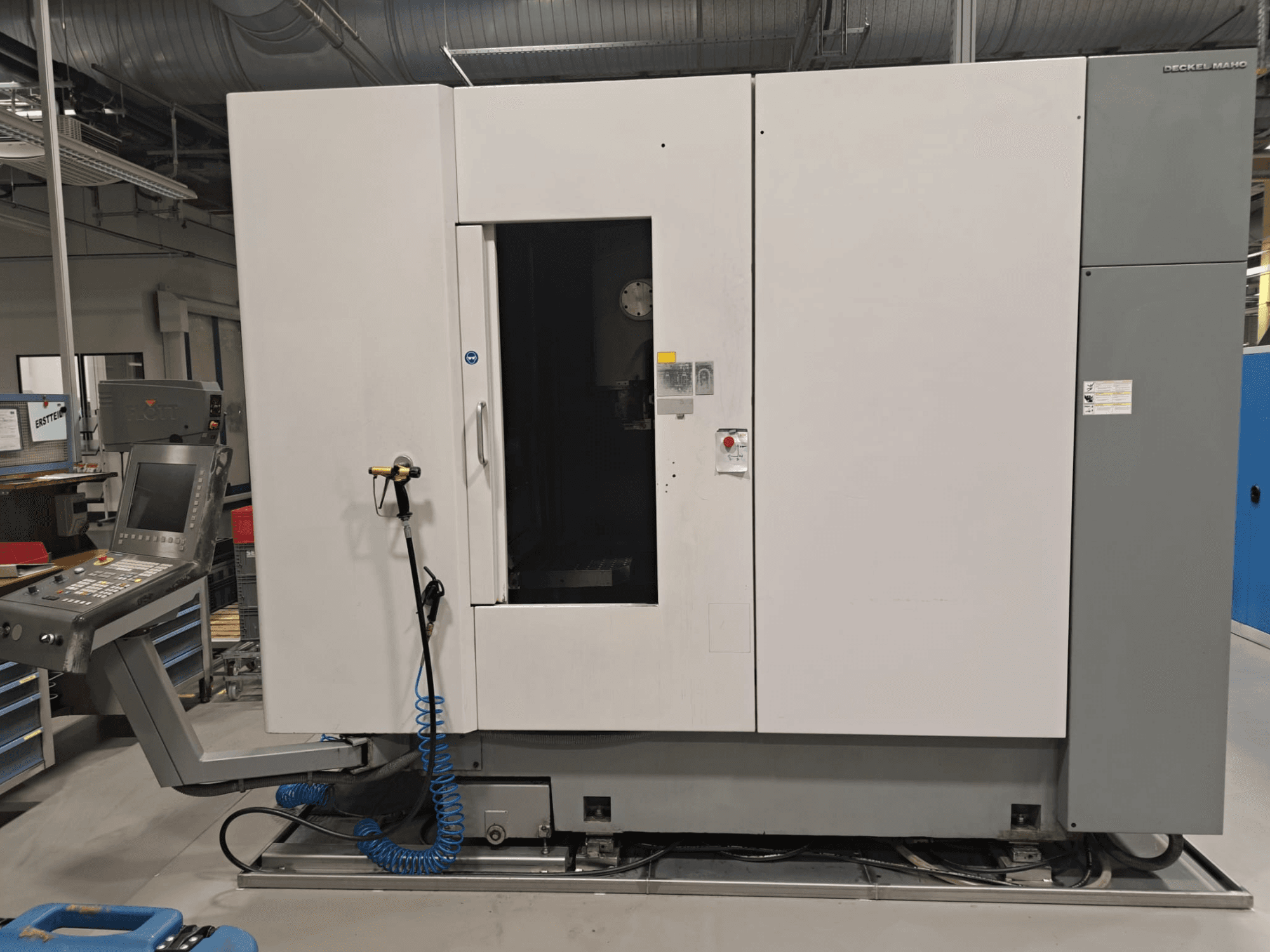

DECKEL MAHO - DMP 60VDE-MIL-DEC-2003-00008

- Control Unit: Siemens 840D / SINUMERIK 840D powerline

- Spindle Speed Range: 20 to 18,000 rpm

- AC Main Drive Power: 35/25 kW (40/100% ED)

- Tool Changer / Capacity: 25 magazine positions

- Tool Holder Taper: HSK-A 63

- Worktable Type: Swivel / Pallet Changer

- Clamping Surface Area: 2x 660 x 400 mm

- Internal Coolant Supply (IKZ): 40 bar / 23 l/min / 600 L tank

- Coolant / Filtration System: Interlit Kompakt-Filteranlage (Type: SPB 3/600, Filter surface: 0.7 m², Tank capacity: 600 l, YOM: 2003) with gravity paper belt filter unit

- Coolant / Chip Management: Scraper belt chip conveyor (1000 mm discharge height) with auxiliary 200 L coolant tank

- Accessories: Electronic handwheel, integrated blow-off/spray gun attached to front cabinet

- Machine Dimensions (Height): 2700 mm (Machine height), 2645 mm (Transport height)

- Machine Dimensions (Width): 1950 mm (Without control panel), 2990 mm (With control panel / door open), 1950 mm (Transport width)

- Machine Dimensions (Length): 3308 mm (Machine length), 3850 mm (Transport length with swivelled control)

- Required Floor Area: 6000 x 4000 mm (Standard), 6000 x 5200 mm (With chip conveyor), 6000 x 5300 mm (With chip conveyor and coolant system)

- Transport Dimensions (L x W x H): Approx. 3400 x 2000 x 2700 mm

- Documentation Included: Machine Handbook
