➤ Used DECKEL MAHO DMU 125 P hi-dyn | Universal Center

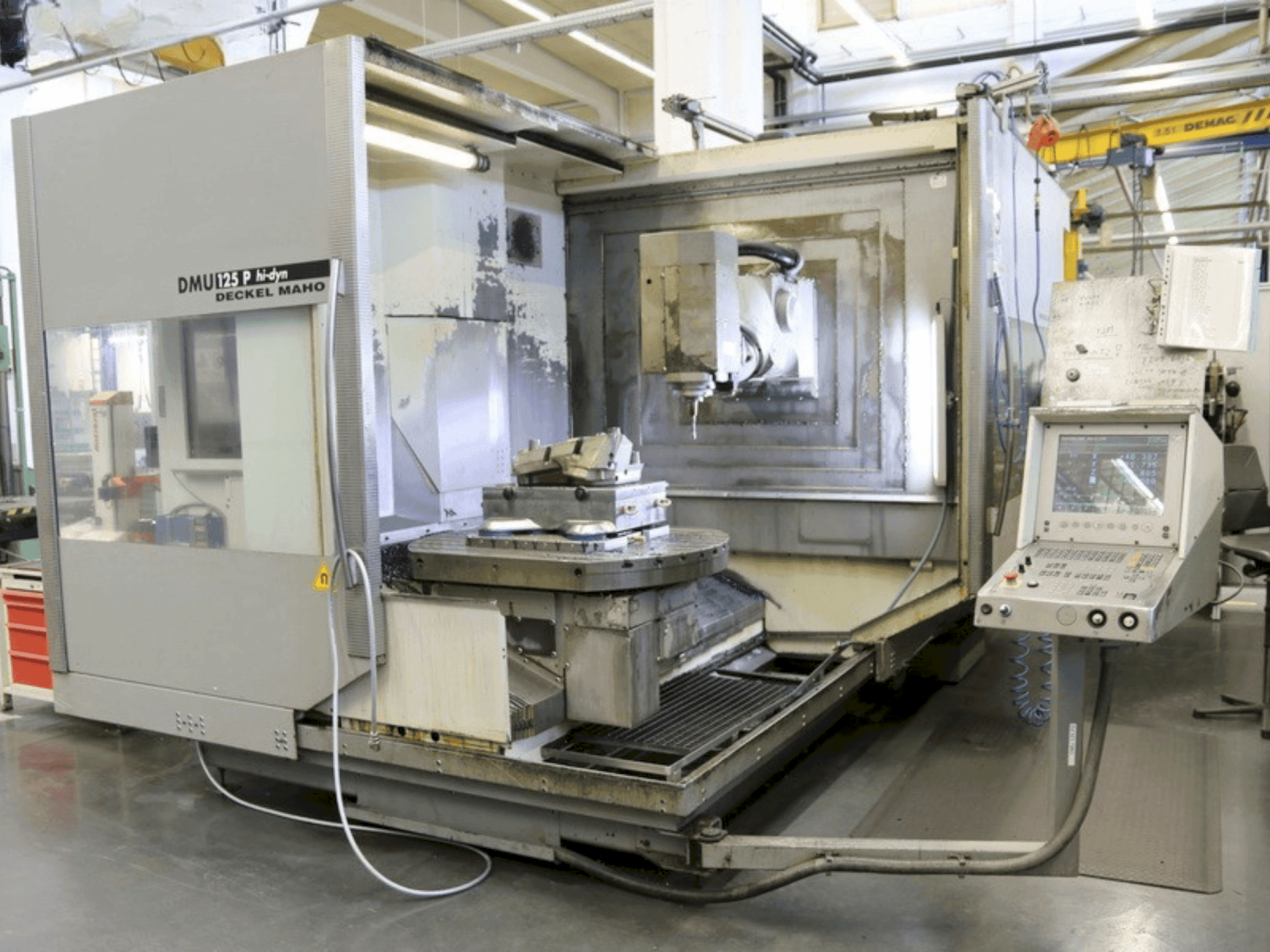

This 5-axis DECKEL MAHO DMU 125 P hi-dyn was manufactured in 2000. It features a Heidenhain TNC 426 control, a swiveling head, and a NC rotary table with a 360° B-axis rotation. The main spindle supports up to 8,000 rpm with a power of 15 kW. It includes a 30-position tool magazine and a high-pressure coolant system. If you are looking to get high-quality milling capabilities consider the DECKEL MAHO DMU 125 P hi-dyn machine we have for sale. Contact us for more information.

Overview

brand: DECKEL MAHO
year: 2000
MODEL: DMU 125 P hi-dyn
application type: Milling
Location: Slovenia
machine type: Universal Machining Centre
control unit brand: HEIDENHAIN

Technical Information - DECKEL MAHO DMU 125 P hi-dyn

Control Unit

Control Brand: HEIDENHAIN
Control Model: TNC 426

Dimensions

Machine Depth: 7000 mm
Machine Height: 3000 mm
Machine Weight: 12200 kg
Table Load: 2000 kg

Movement

Number of Axes: 4
X-axis Travel: 1250 mm
Y-axis Travel: 880 mm
Z-axis Travel: 800 mm

Technical Specification

Max. Tool Weight: 20 kg
Spindle Power: 15 kW
Spindle Speed: 8000 RPM
Taper Size: SK 50

Additional Information

Additional equipment

Documentation
Coolant System
High-pressure Coolant (40 bar)
Through-spindle Coolant
Electronic Handwheel
90° Swivelling Milling Head (H/V)
30-position Tool Magazine
Touch Probe M&H RMP 2000
Hydraulic System
Oil Mist Extraction

Machine Benefits

Technical Machine Benefits

Max. Torque: 130 nm
Swivelling head (h/v): ±90°
Feed speed: 0 – 15000 mm/min
Table size: 1250 x 1000 mm
C-axis rotation: 360° / 0. 001°
Distance from spindle center to column: 900 mm
T-slot distance: 100 mm // t-slot width: 18 h7 mm
Center hole: 50 h6 mm
Max. Table torque: 3500 nm // max. Table rotation speed: 8 rpm
Nc rotary table

Extra Information

Work Light The offer includes the Tool Presetting Device ZOLLER Venturion 400 Total Power Requirement: 55 kVA Max. Tool Diameter (with Adjacent Positions Free): 230 mm Tool Change Time (tool-to-tool): 3.0 sec Chip-to-chip Time (Vertical / Horizontal): 11 / 16 sec

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
