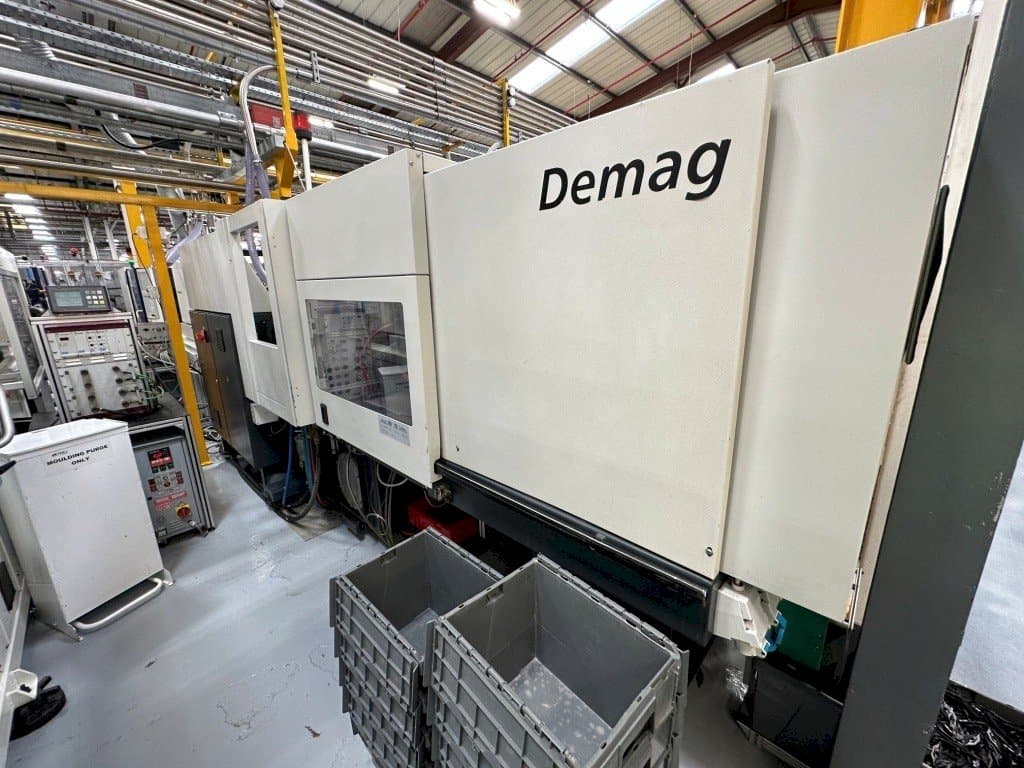

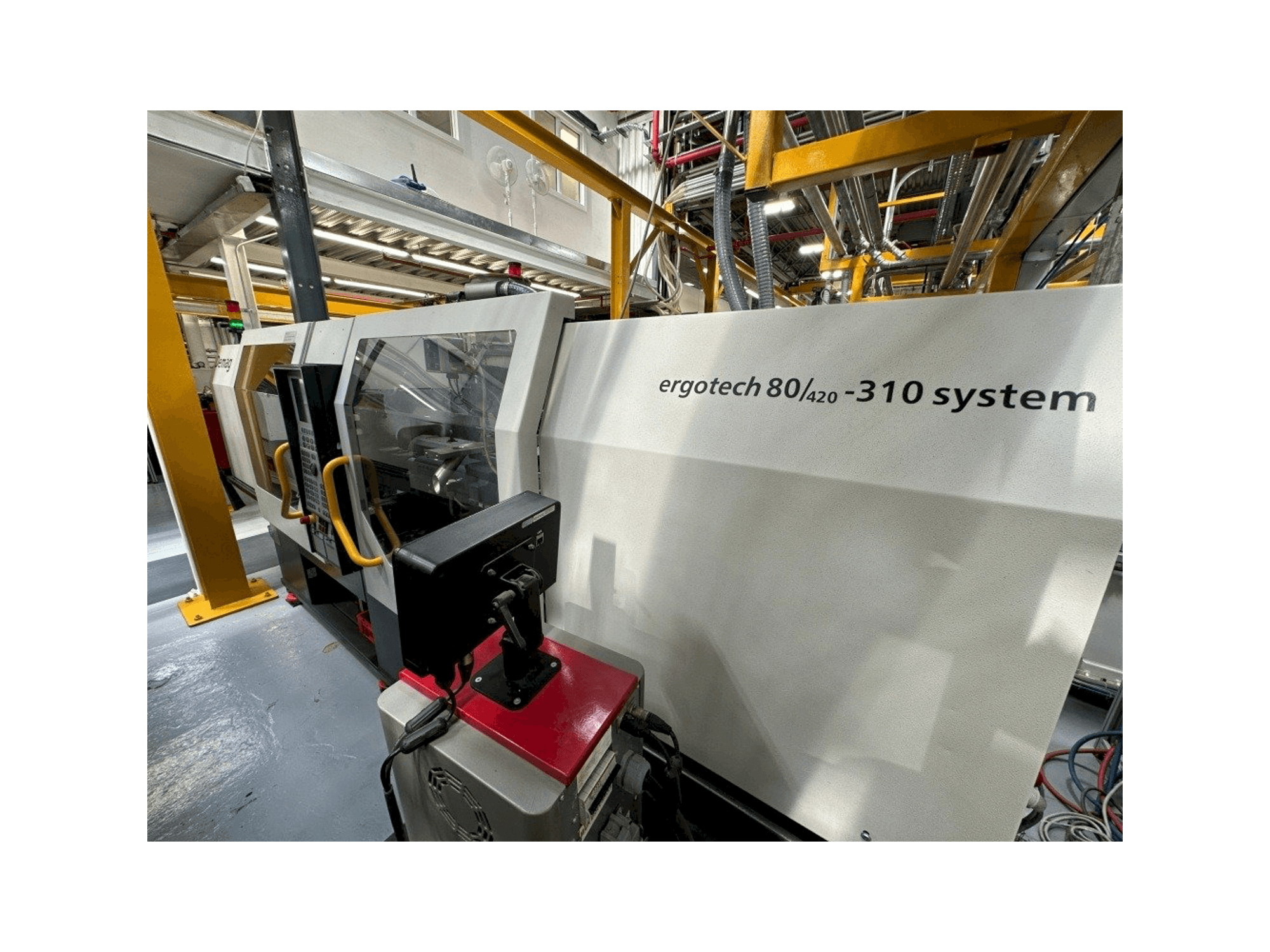

Front view of DEMAG Ergotech 80/420-310 System  machine

SUMITOMO SHI DEMAG Ergotech 80/420-310 System

SUMITOMO SHI DEMAG - Ergotech 80/420-310 System



Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

Click to chat on WhatsApp

This DEMAG Ergotech 80/420-310 System Injection Moulding Machine was built in 2003 in Germany. It is equipped with a Demag NC4 control unit. The machine has a clamping force of 800 kN, a screw diameter of 30 mm and it is in very good condition.


  • year: 2003
  • MODEL: Ergotech 80/420-310 System
  • application type: Injection Moulding
  • Location: Ireland
  • machine type: Injection Moulding Machines
  • availability: Sold
  • control unit brand: Demag
  • GINDUMAC ID: IE-INJ-DEM-2003-00001

Technical Information

General Data

  • Measurements width: 3900 mm
  • Measurements depth: 1400 mm
  • Measurements height: 1900 mm
  • Machine weight: 4100 kg

Control Unit

  • Brand: Demag
  • Model: NC4
  • CNC main language: English
  • CNC language customizable: Yes

Injection Unit

  • Screw diameter: 30 mm
  • Shot weight: 94 g/PS
  • Stroke volume: 106 CM³
  • Injection pressure: 1990 bar

Clamping unit

  • Clamping force: 800 kn
  • Opening stroke: 450 mm
  • Max open daylight: 750 mm
  • Distance between bars: 420 mm
  • Mould height min: 250 mm
  • Size of mold platens: 600 mm
  • Ejector stroke: 150 mm
  • Ejector force for / back: 41 kn


  • Main electronic connection: 400 V

    Additional Equipment

    • - Conveyor

    Additional Information

      Machine history

      • Material type: Plastic
      • End product: Automotive parts
      • Industries: Automotive industry

      Machine Benefits

      • Technical Machine Benefits:
        • - 80t machine
      • Qualitative Machine Benefits:
        • - Very good condition
        • - Well maintained

      Extra information

      • - Hopper and Kistler Unit in photos not included in sale

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
