SUMITOMO SHI DEMAG - System 110/470-430IE-INJ-DEM-2005-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Plastics Processing Machinery
- DEMAG System 110/470-430 Injection Moulding Machine

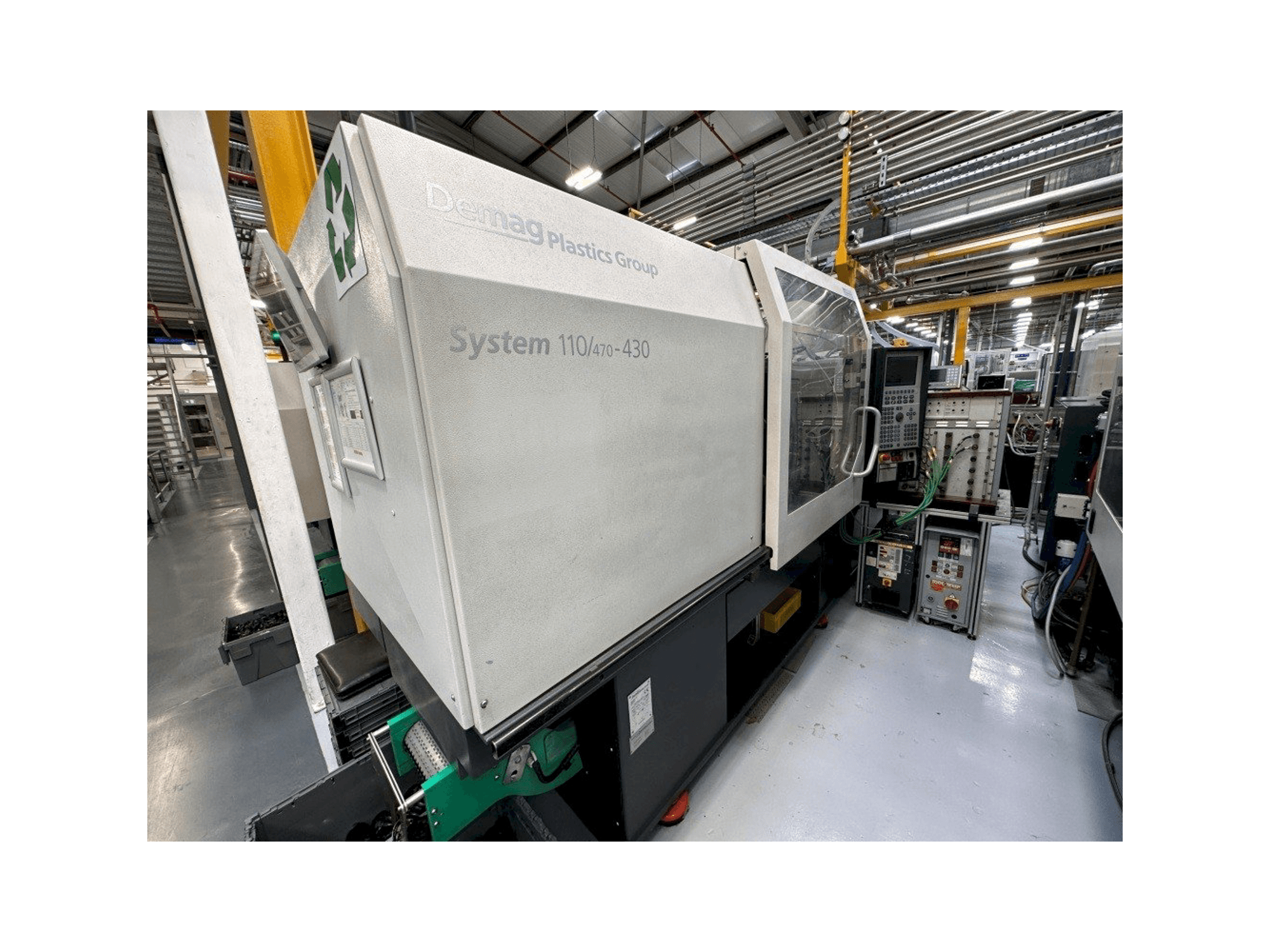

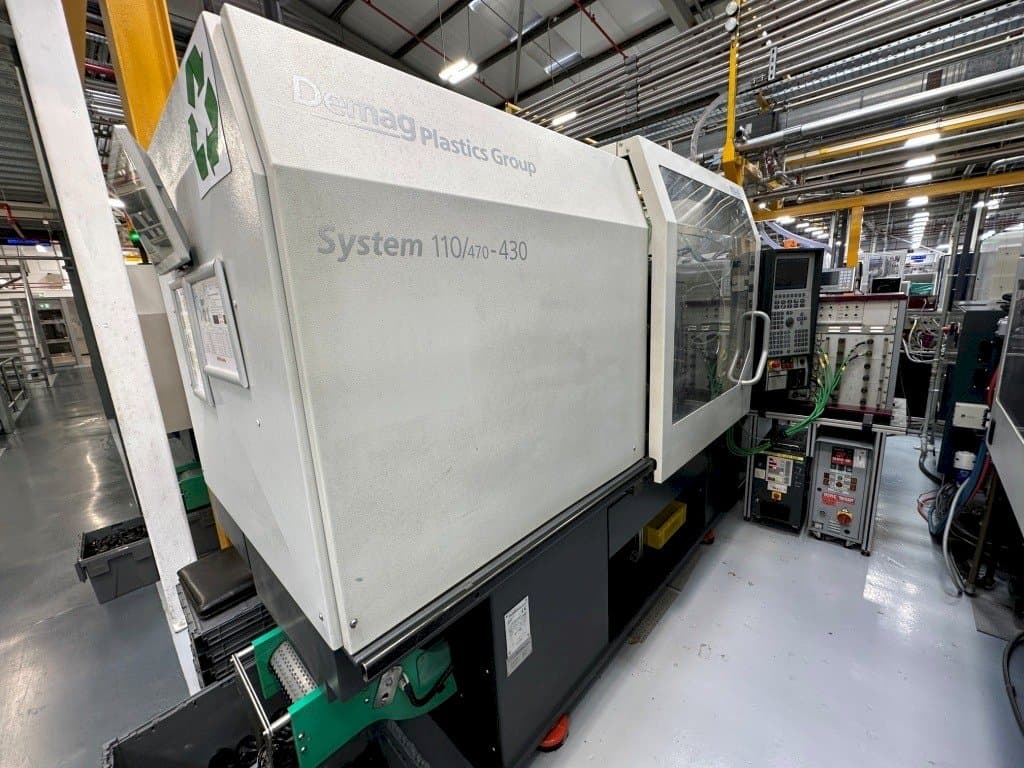

This DEMAG System 110/470-430 Injection Moulding Machine was made in the year 2005. It is equipped with a Demag NC4 control unit. The machine has a clamping force of 1100 kN, a screw diameter of 45 mm and it is in very good condition.
Overview
- brand: SUMITOMO SHI DEMAG
- year: 2005
- MODEL: System 110/470-430
- application type: Injection Moulding
- Location: Ireland
- machine type: Injection Moulding Machines
- availability: Sold
- control unit brand: Demag System 110/470-430 (2005)
Technical Information - SUMITOMO SHI DEMAG System 110/470-430
General Data
- Measurements width: 4650 mm
- Measurements depth: 1550 mm
- Measurements height: 2100 mm
- Machine weight: 5500 kg
Control Unit
- Brand: Demag System 110/470-430 (2005)
- Model: NC4
- CNC main language: English
- CNC language customizable: Yes
Injection Unit
- Screw diameter: 45 mm
- Stroke volume: 292 CM³
- Injection pressure: 1600 bar
Clamping unit
- Clamping force: 1100 kN
- Distance between bars: 470 mm
- Mould height min: 250 mm
- Size of mold platens: 670 mm
- Ejector stroke: 180 mm
- Ejector force for / back: 41 mm
Media
- Main electronic connection: 400 V
Additional Equipment
- - Conveyor
Additional Information
- Material type: Plastic
- End product: Automotive parts
- Industries: Automotive industry
- Technical Machine Benefits:
- - 110t machine
- Qualitative Machine Benefits:
- - Very good condition
- - Well maintained
- - Hopper and Kistler Unit in photos not included in sale
Machine history
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
