➤ Used DMG DECKEL MAHO DMC 100U duoBLOCK | Machining

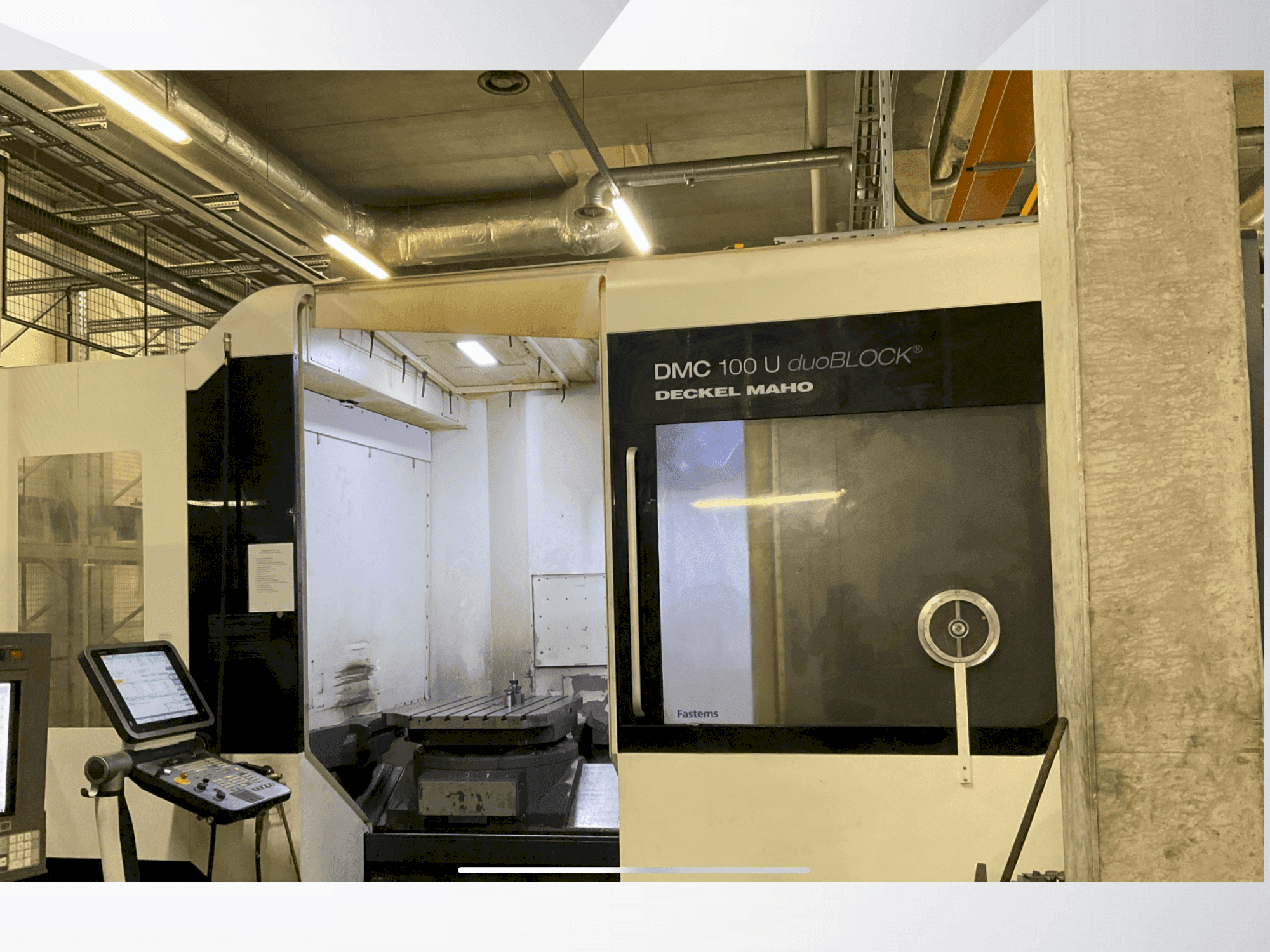

This 5-axis DMG DECKEL MAHO DMC 100U duoBLOCK was manufactured in 2012. It features a Siemens Sinumerik 840D control, a 1000x800 mm pallet clamping surface, and rapid traverse rates up to 60m/min. The spindle reaches speeds of 18,000 rpm with a maximum torque of 119 Nm. Includes a 60-position tool changer and a high-pressure coolant system. Consider the opportunity to buy this DMG DECKEL MAHO DMC 100U duoBLOCK universal machining centre. Contact us for more information about this machine.

Overview

brand: DMG DECKEL MAHO
year: 2012
MODEL: DMC 100U duoBLOCK
application type: Milling
Location: Estonia
machine type: Universal Machining Centre
control unit brand: SIEMENS

Technical Information - DMG DECKEL MAHO DMC 100U duoBLOCK

Control Unit

Brand: SIEMENS
Model: Sinumerik 840D

Movement

X-AXIS Movement: 1000 MM
Y-AXIS Movement: 1250 MM
Z-AXIS Movement: 1000 MM

Additional Equipment

- Chip conveyor/ Oil mist collector /980 litre high pressure coolant through the spindle system with paper band filter /Infrared measuring sensor/ Tool measurement with BLUM Laser 3D/ Quick Set preparation /Full set of manuals in English, Estonian, and digital copy (English)/ Cooling unit Air blast through the spindle /Maintenance kit with installation, filters, and wipers

Additional Information

Machine Benefits

Qualitative Machine Benefits:
- - B-axis: 210 degrees /c-axis: 360 degrees/ x/y/z-axis rapid traverse rate: 60 m/min /x-axis acceleration: 7. 0 m/s² /y-axis acceleration: 6. 5 m/s² /z-axis acceleration: 6. 5 m/s² /resolution x/y/z-axis: 0. 001 mm/ position tolerance x/y/z-axis: 0. 006 mm/ position tolerance a-axis: 8 arcsec /position tolerance b-axis: 6 arcsec/ position tolerance c-axis: 5 arcsec
- - Max workpiece diameter: 1000 mm/ max workpiece height: 1600 mm/ max workpiece weight: 2000 kg
- - Number of pallets inside machine: 2 (working/preparation area) /extra pallets: 7/ pallet clamping surface: 1000 x 800 mm /pallet weight: 630 kg /permitted workpiece weight on the pallet: 2000 kg
- - Toolholders type: hsk-a63 (din 69893 form a) /60 positions in tool changer
- - Spindle speed: 18000 rpm/ max spindle power: 35 kw (40% ed) /max spindle torque: 119 nm (40% ed)
- - Weight (kg): 21000 kg

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
