- ➤ Used DMG DECKEL MAHO DMC 64V linear | Machining Center

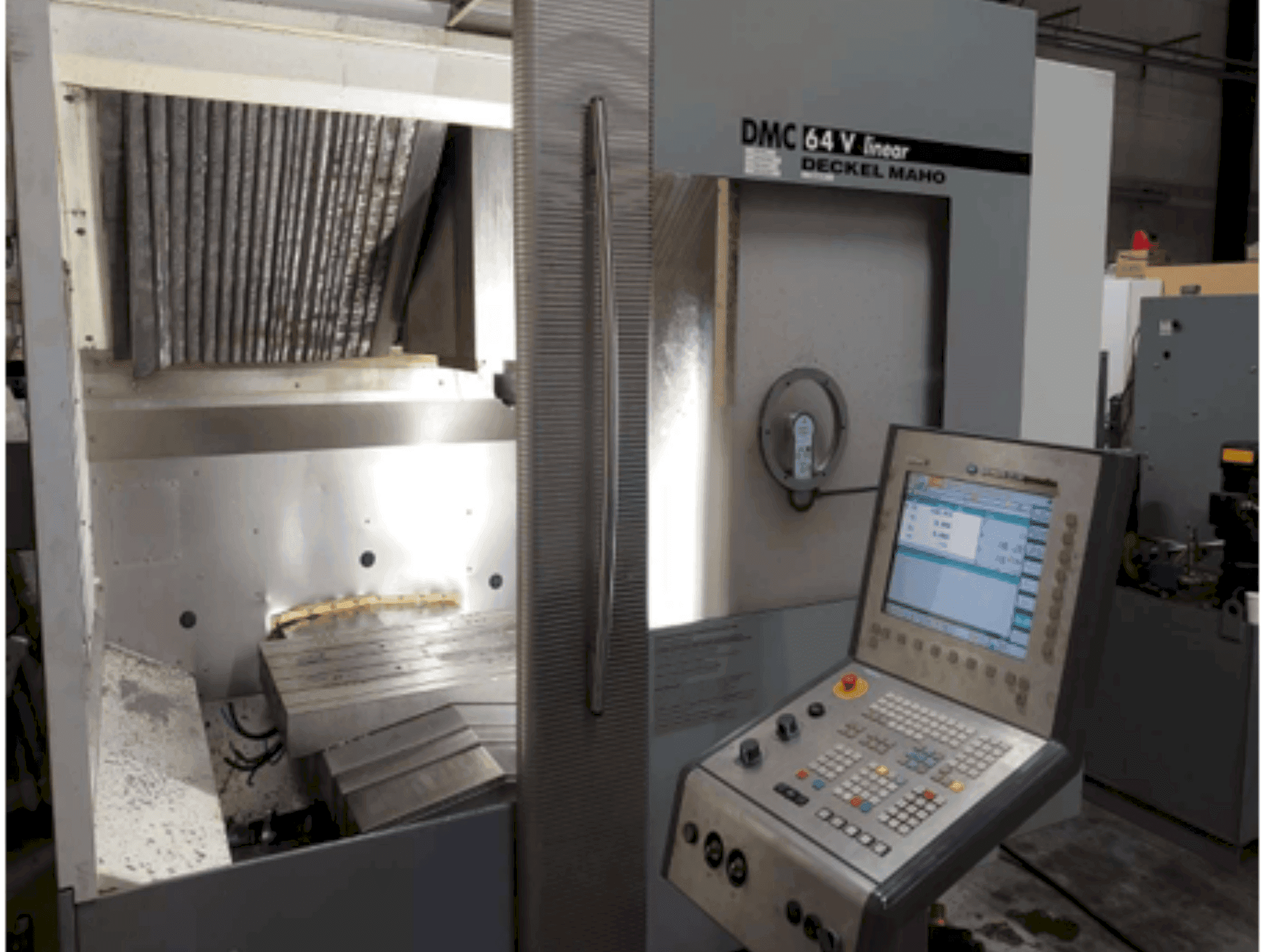

This 3-axis DMG DECKEL MAHO DMC 64V linear was manufactured in 2007. It features a Siemens 810D ShopMill control, SK40 spindle with speeds up to 12,000 rpm, and a tool magazine with 30 positions. The machine includes a chip conveyor, coolant gun, and a high-pressure coolant system. Ideal for precise and efficient machining. Contact us for more information about this machine.
Overview
- brand: DMG DECKEL MAHO
- year: 2007
- MODEL: DMC 64V linear
- application type: Milling
- Location: Poland
- machine type: Vertical Machining Centre
- control unit brand: SIEMENS
Technical Information - DMG DECKEL MAHO DMC 64V linear
Control Unit
- Control Brand: SIEMENS
- Control Model: SINUMERIK 810D powerline and ShopMill
Dimensions
- Machine Weight: 7500 kg
- Table Load: 600 kg
Movement
- Number of Axes: 3
- X-axis Travel: 640 mm
- Y-axis Travel: 600 mm
- Z-axis Travel: 500 mm
Technical Specification
- Spindle Speed: 12000 RPM
Additional Information
Additional Equipment
Chip conveyor
Coolant gun
Flushing system
Programmable spindle air blast
VISIPORT rotating inspection window
Electrostatic oil mist extractor
Siemens handwheel
Machine Benefits
Technical machine benefits:
Workpiece Table size: 850 × 600 mm
Coolant through spindle, 20 bar
600 L system with filtration unit
Condition: Machine after full inspection (spindle, geometry, oils/grease replaced).
Extra Information
Tool magazine: 30 positions, 2 sec tool change
Axis drives: X – linear drive; Y/Z – ball screws
Heidenhain linear scales on X/Y/Z
Full documentation, electrical diagrams, NC/PLC back-up on USB
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
