DMG DECKEL MAHO - DMU 40 evoDE-MIL-DMG-2014-00004
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used DMG DECKEL MAHO DMU 40 evo For Sale | gindumac.com

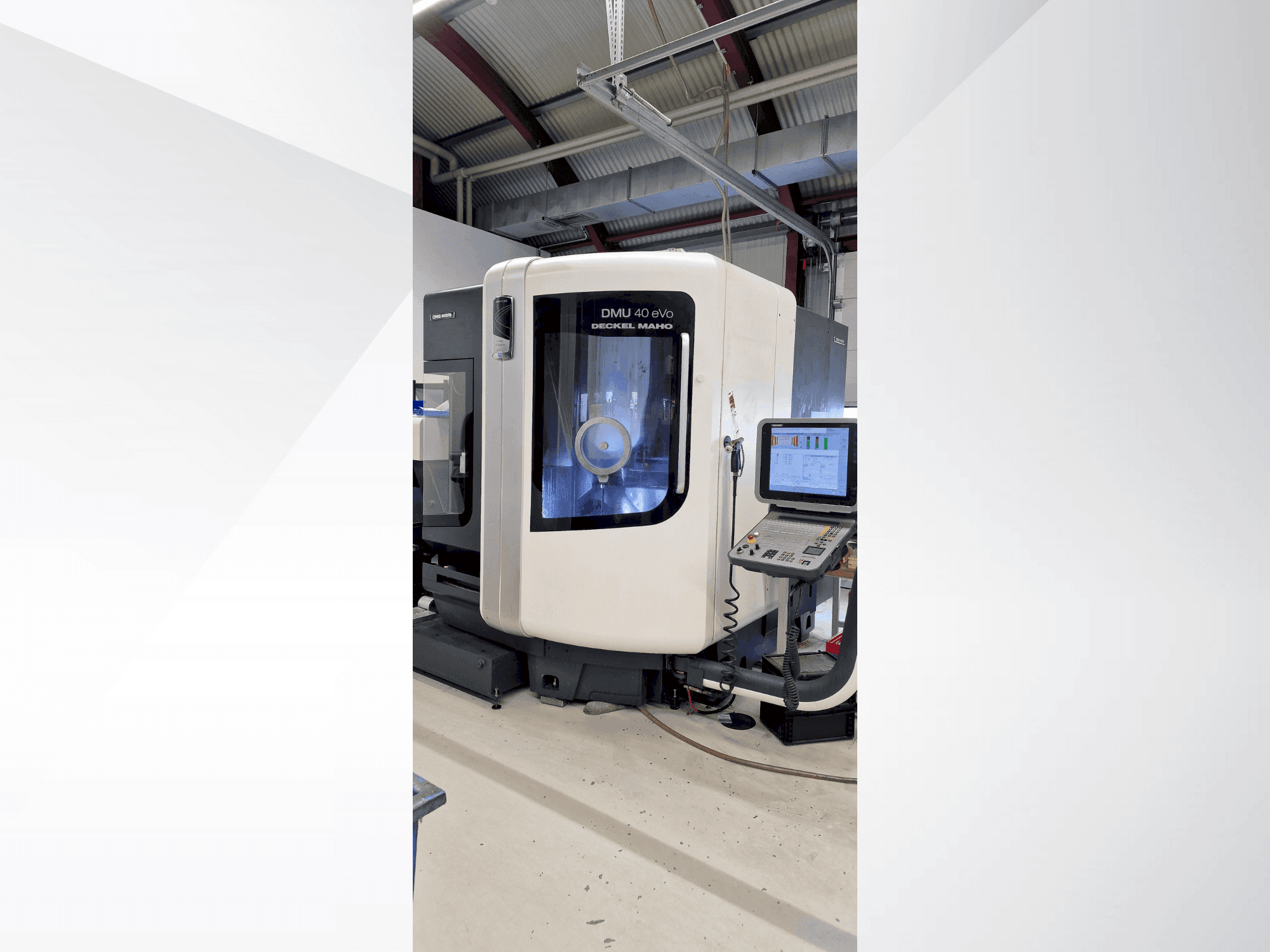

This 5-axis DMG DECKEL MAHO DMU 40 evo was manufactured in 2014. It features a NC swivel rotary table, a 30-position chain magazine, and a motor spindle with a speed range up to 14,000 rpm. The machine includes an internal coolant supply system and a link-belt chip conveyor, enhancing its operational efficiency. If you are looking to get high-quality milling capabilities, consider the DMG DECKEL MAHO DMU 40 evo machine we have for sale. Contact us for more information.
Overview
- brand: DMG DECKEL MAHO
- year: 2014
- MODEL: DMU 40 evo
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - DMG DECKEL MAHO DMU 40 evo
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: ITNC 530
Additional Information
Machine Benefits
Technical Machine Benefits
- Spindle speed range: 20–14,000 rpm /spindle motor power: 18. 9/14 kw (40/100% duty cycle)/ tool taper: hsk-a63
- Clamping area: 450*400 mm/ load capacity: 250 kg
- Nc swivel rotary table (b+c axes), load capacity 250kg, clamping area 450*400mm/ 30-position chain magazine /-infrared probe (renishaw pp60 optical) /laser tool measurement for length and diameter /flushing gun for chip flushing /air blast through the spindle center/ link-belt chip conveyor /internal coolant supply (ikz) with paper belt filter 40 bar/23 l/min/600-liter tank - electronic handwheel/ operating mode 4 (process monitoring during production)/ various tool holders and clamping devices
- Documentation in german /screen text in german
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
