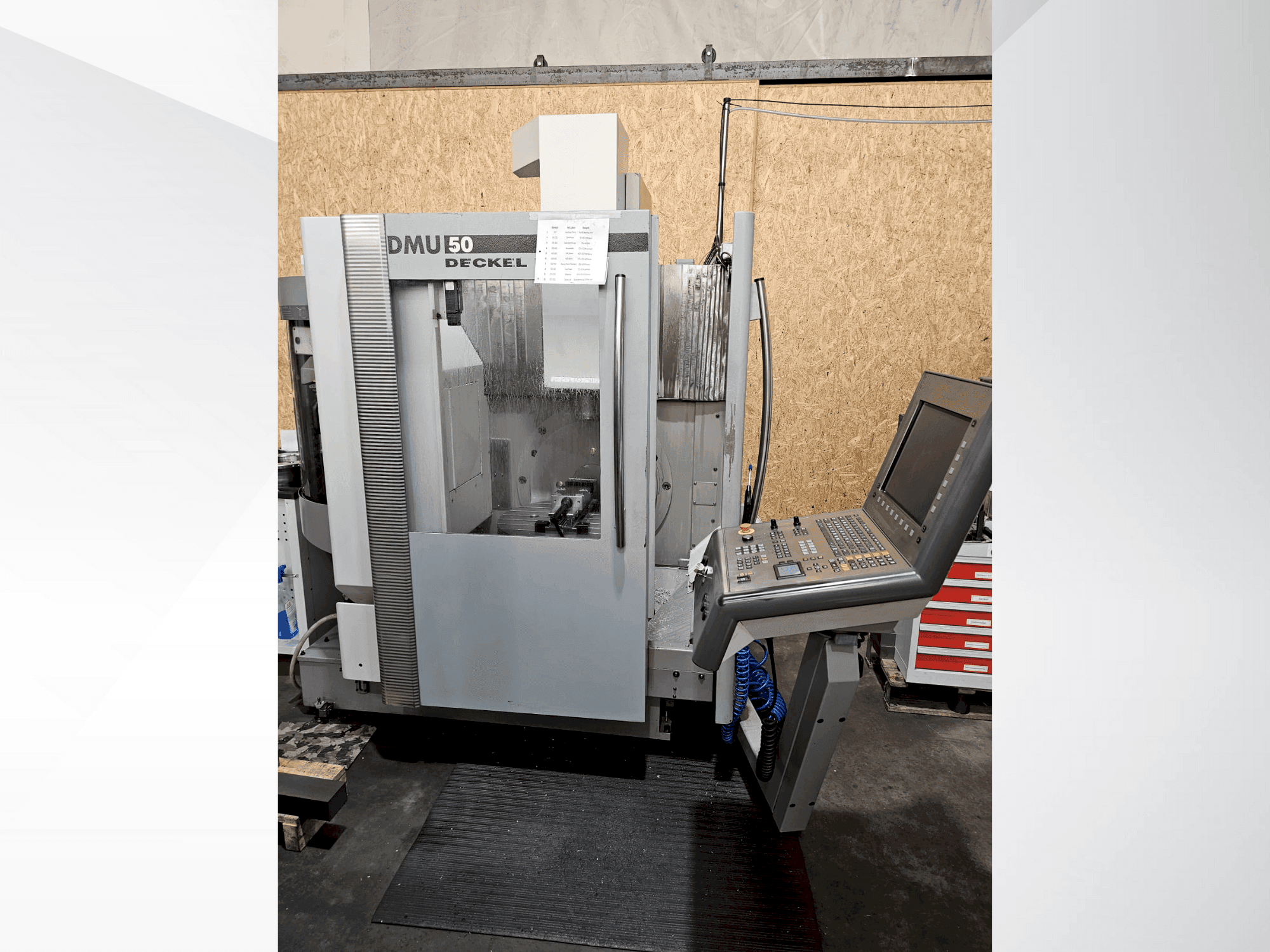

Front view of DMG DECKEL MAHO DMU 50 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DMG DECKEL MAHO DMU 50

Photo Gallery

DMG DECKEL MAHO - DMU 50DE-MIL-DMG-2005-00002

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DMG DECKEL MAHO DMU 50 For Sale | gindumac.com

This 5-axis DMG DECKEL MAHO DMU 50 vertical machining centre was manufactured in 2005. It features a Heidenhain iTNC 530 control, a main spindle speed range of 20 - 10,000 RPM, and a rotary table with a clamping surface of 630 x 500 mm. The machine has undergone significant overhauls, including a complete X-Axis bearing replacement and new coolant pump installation. If you are looking to get high-quality milling capabilities, consider the DMG DECKEL MAHO DMU 50 machine we have for sale. Contact us for more information.

Overview

brand: DMG DECKEL MAHO
year: 2005
MODEL: DMU 50
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - DMG DECKEL MAHO DMU 50

Control Unit

Control Brand: HEIDENHAIN
Control Model: iTNC 530

Dimensions

Machine Weight: 3600 kg

Movement

Number of Axes: 5
X-axis Travel: 500 mm
Y-axis Travel: 450 mm
Z-axis Travel: 400 mm

Technical Specification

Spindle Power: 9 kW
Spindle Speed: 10000 RPM
Taper Size: SK 40

Additional Information

Additional equipment

Tool Positions: 16 / Max. Tool Weight: 6 kg / Max. Tool Length: 300 mm
Max. Tool Diameter: Without adjacent tools: 130 mm / With adjacent tools: 80 mm
Total Power Requirement: 17 kVA
No chip conveyor included / No automatic measuring probe included / No tools included

Machine Benefits

Qualitative Machine Benefits

Low spindle hours and power-on hours.
Never used in series production; operated with care and proper procedures.
Warm-up programs and maintenance routines followed for optimal performance.

Technical Machine Benefits

Torque: 57 / 82 nm / rapid traverse (x/y/z): 12 m/min /feed rate: 10000 mm/min
Table clamping surface: 630 x 500 mm
Swivel range: -5 / +110°
Max. Table load: 200 kg
T-slots: 14 h7 / t-slot spacing: 63 mm
C-axis rotation: +/- 360°
Complete x-axis bearing overhaul including ball screw and bearing assembly. / various hydraulic components overhauled. / tool changer readjusted and sensor system replaced.
New door switch installed. / new discs installed (with some chip debris affecting them). / new coolant pump installed. / new screen installed. / new handwheel hr410 installed.
Machine is 5-axis machine with 3+2 configuration
The table can swivel to any angle in both the B and C axes. This is accurate to within 0.001 degrees

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
