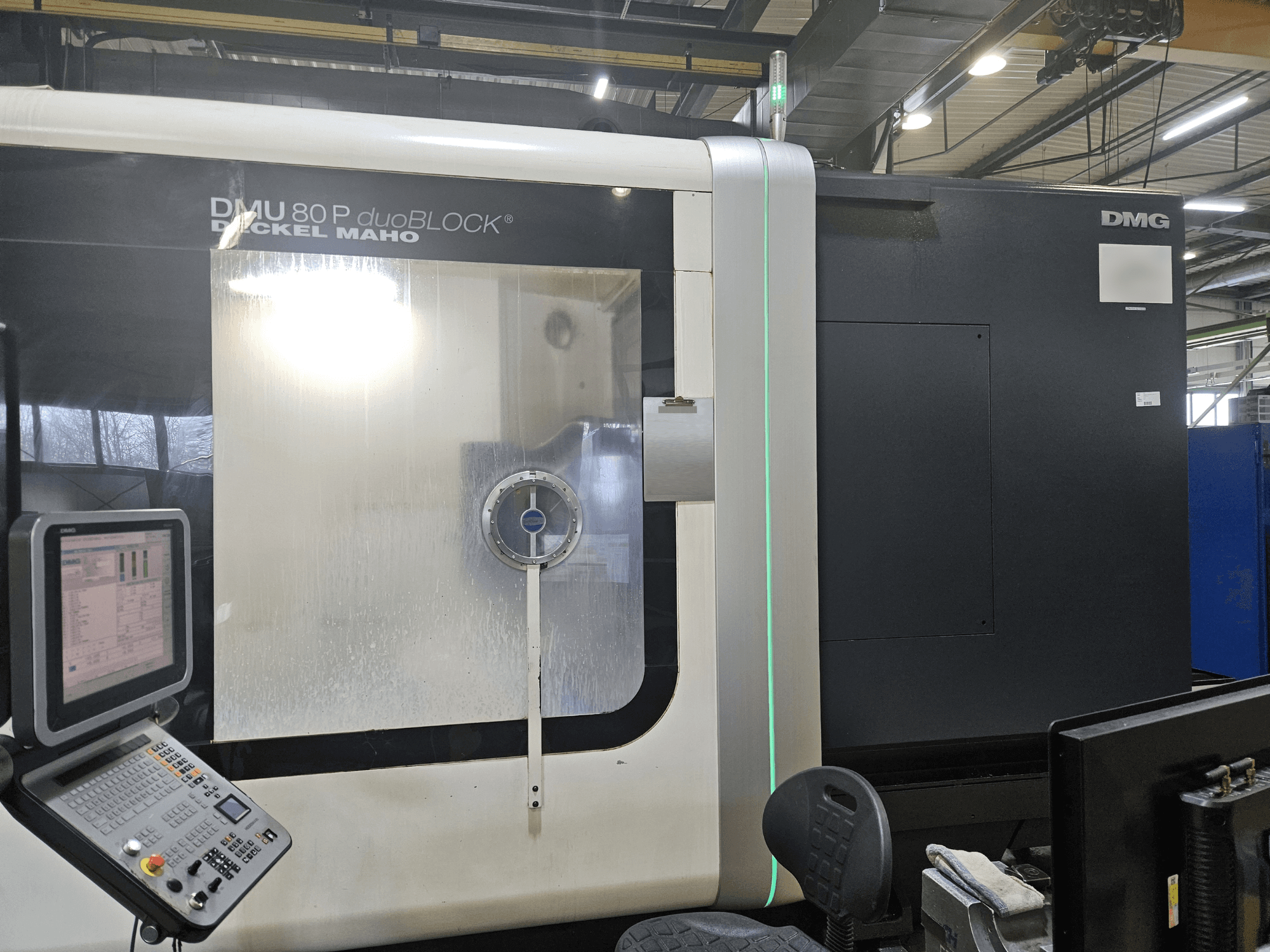

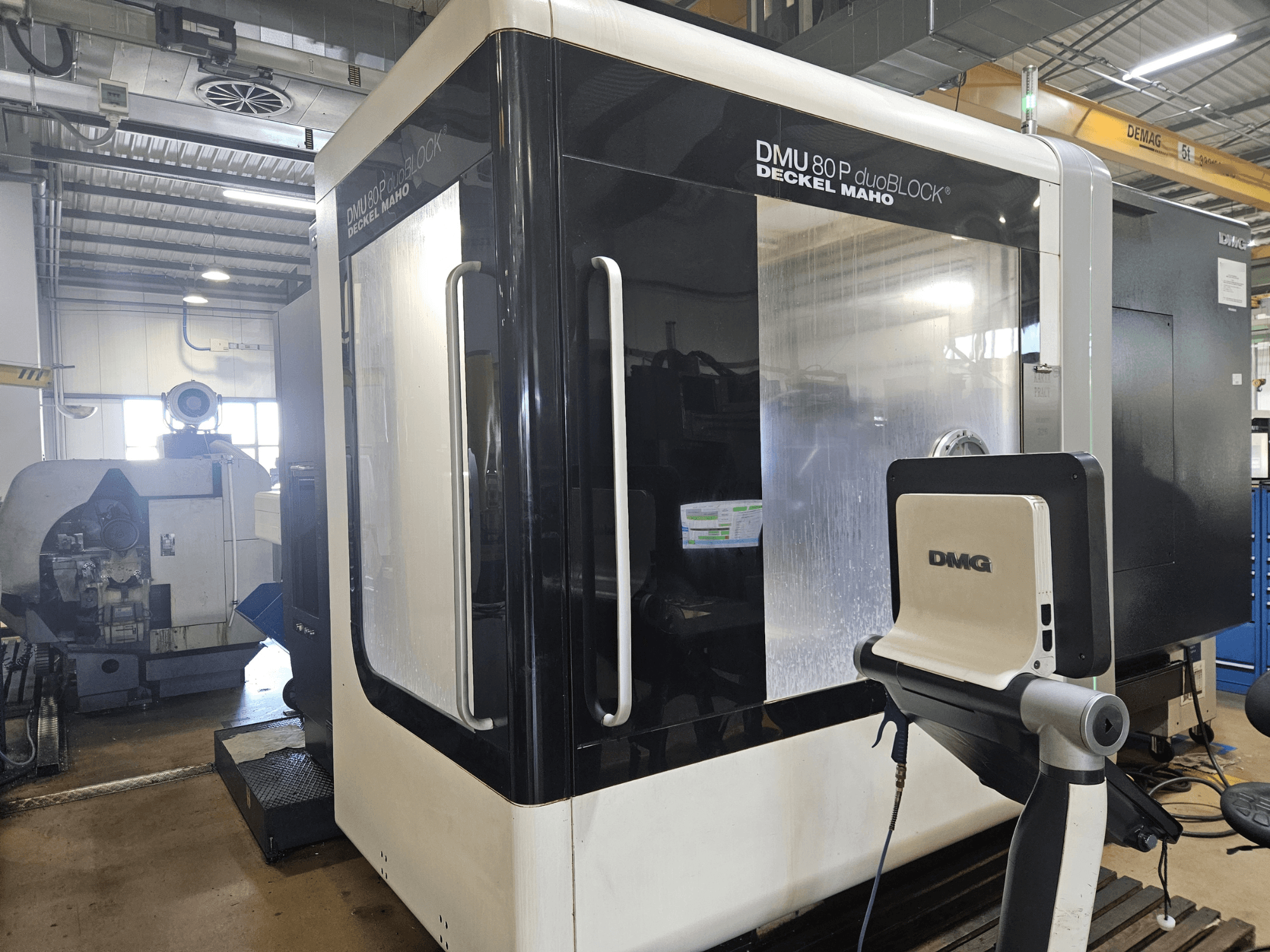

Vertical machining center DMU 80P duoBLOCK by DMG DECKEL MAHO, front view, featuring dual access and control panel in factory setting.

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DMG DECKEL MAHO DMU 80P duoBLOCK

Photo Gallery

DMG DECKEL MAHO - DMU 80P duoBLOCKPL-MIL-DMG-2009-00002

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DMG DECKEL MAHO DMU 80P duoBLOCK | Machining Center

This 5-axis DMG DECKEL MAHO DMU 80P duoBLOCK was manufactured in 2009. It features impressive axis travels with X-axis at 800 mm, Y-axis at 1050 mm, and Z-axis at 850 mm. The machine includes a robust table size of Ø 900 × 700 mm and a maximum workpiece weight capacity of 1800 kg. If you are looking to get high-quality machining capabilities, consider the DMG DECKEL MAHO DMU 80P duoBLOCK vertical machining centre we have for sale. Contact us for further details.

Overview

brand: DMG DECKEL MAHO
year: 2009
MODEL: DMU 80P duoBLOCK
production hours: 35295
application type: Milling
Location: Poland
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - DMG DECKEL MAHO DMU 80P duoBLOCK

Control Unit

Control Brand: HEIDENHAIN
Control Model: iTNC 530

Dimensions

Machine Height: 3200 mm
Machine Length: 3400 mm
Machine Weight: 13000 kg
Machine Width: 5400 mm
Table Length: 700 mm
Table Load: 1400 kg
Table Width: 900 mm

Movement

B-axis Max: 180°
B-axis Min: -30°
C-axis: 360°
Number of Axes: 5
X-axis Travel: 800 mm
Y-axis Travel: 800 mm
Z-axis Travel: 800 mm

Technical Specification

Spindle Power: 28 kW
Spindle Speed: 12000 RPM
Taper Size: SK 40
Through-spindle Coolant: Yes
Tool Stations: 60

Additional Information

Rotary axes: B-axis (tilting head) -30° to +180°; C-axis (rotary table) 360° continuous
Table size: approx. Ø 900 × 700 mm
Max. workpiece weight: approx. 1400–1800 kg
Spindle type: Vertical milling spindle
Coolant through spindle (CTS): yes
CE compliant
P-B0052 – 3D control Heidenhain iTNC 530
P-W0276 – Universal milling head with controlled B-axis
P-D0010 – Tool magazine Horizontal chain magazine with 60 positions
P-K0220 – Infrared measuring probe Renishaw OMP 60 (optical)
3D quickSET – Tool set for checking and correcting kinematic accuracy
P-K0205 – 4-color signal light
P-G0004 – Wash gun with pump 2 bar / 40 l/min (theoretical pump capacity)
P-L0036 – Power failure safety package
Condition: Very good working condition; full service history available

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
