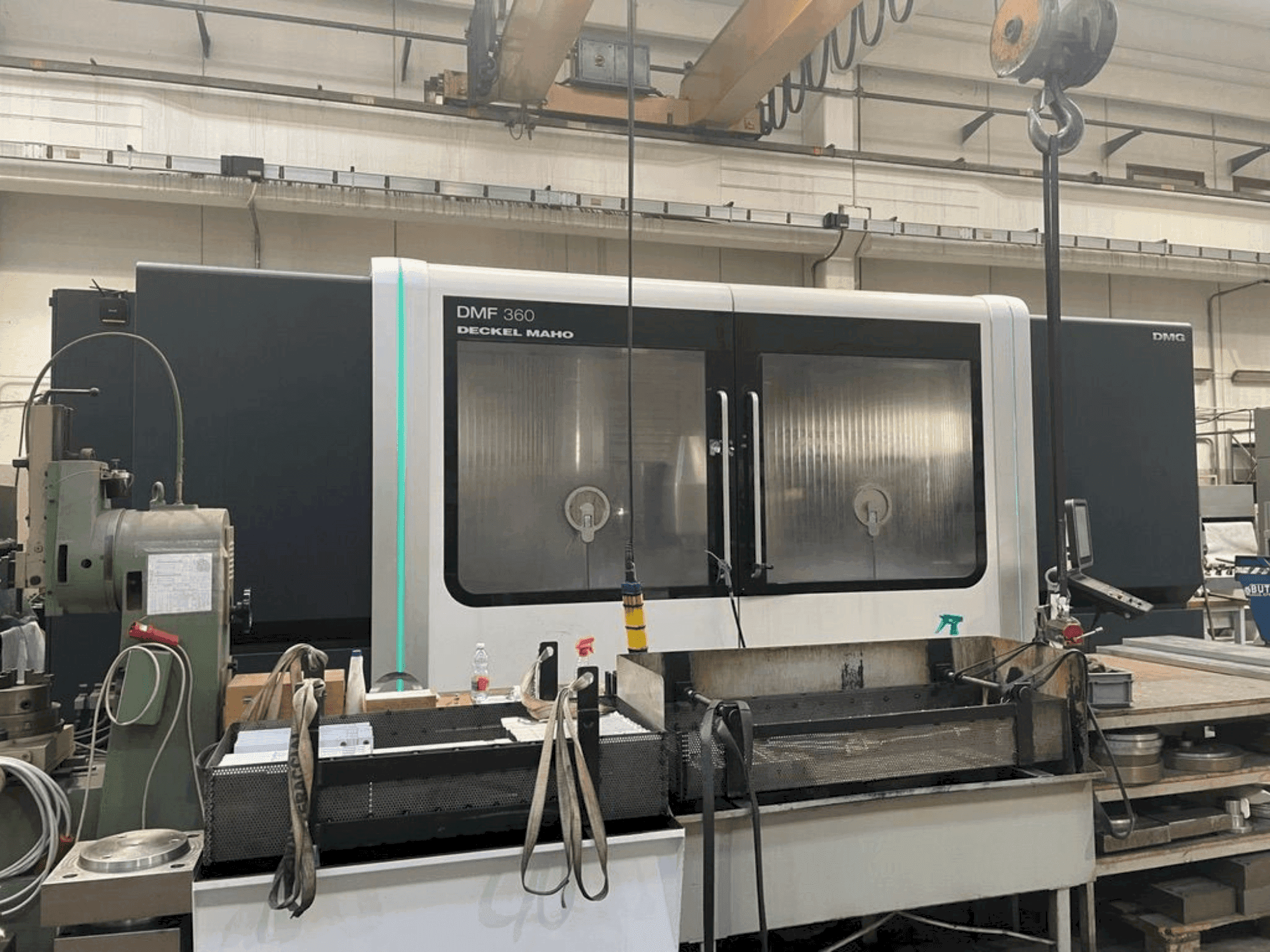

This 5-axis DMG DMF 360 was manufactured in 2011. It features a large table (4200 x 1100 mm), extensive travel (X: 3600 mm, Y: 1100 mm, Z: 900 mm), and a high-speed spindle at 15000 rpm. Equipped with a 60-position tool changer and a built-in rotary table (dia. 1050 mm), it's ideal for complex, multi-sided machining. If you are looking to get high-quality milling capabilities, consider the DMG DMF 360 machine we have for sale. Contact us for more information.
Overview
- brand: DMG
- year: 2011
- MODEL: DMF 360
- application type: Milling
- Location: Italy
- machine type: Universal Machining Centre
Technical Information - DMG DMF 360
Movement
- Number of Axes: 3
- X-axis Travel: 3600 mm
- Y-axis Travel: 1100 mm
- Z-axis Travel: 900 mm
Technical Specification
- Spindle Speed: 15000 RPM
Additional Information
Additional equipment
- Conveyor
- Dividing wall for pendular job
Machine Benefits
Technical Machine Benefits
- Dimensions: 4200 mm x 1100 mm
- Built-in left side rotary table diameter: 1050 mm
- Tool changer with 60 positions
- High pressure: 80 bar
- Through spindle coolant
Extra Information
Head movement: +/- 120 degrees in continuous Table: 4200 x 1100 mm HEIDENHAIN TNC 530 CONTINUOUS CONTROL FIXED TABLE WITH INTEGRATED ROTARY TABLE WORK AREA BULKHEAD B-AXIS MILLING HEAD 8,000 RPM SK 40 200 NM TS 649 PROBE 3D QUICKSET HIGH PRESSURE 40 BAR with 800 L TANK ELECTRONIC HANDWHEEL
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
