➤ Used Gildemeister GMX 400 Linear For Sale | gindumac.com

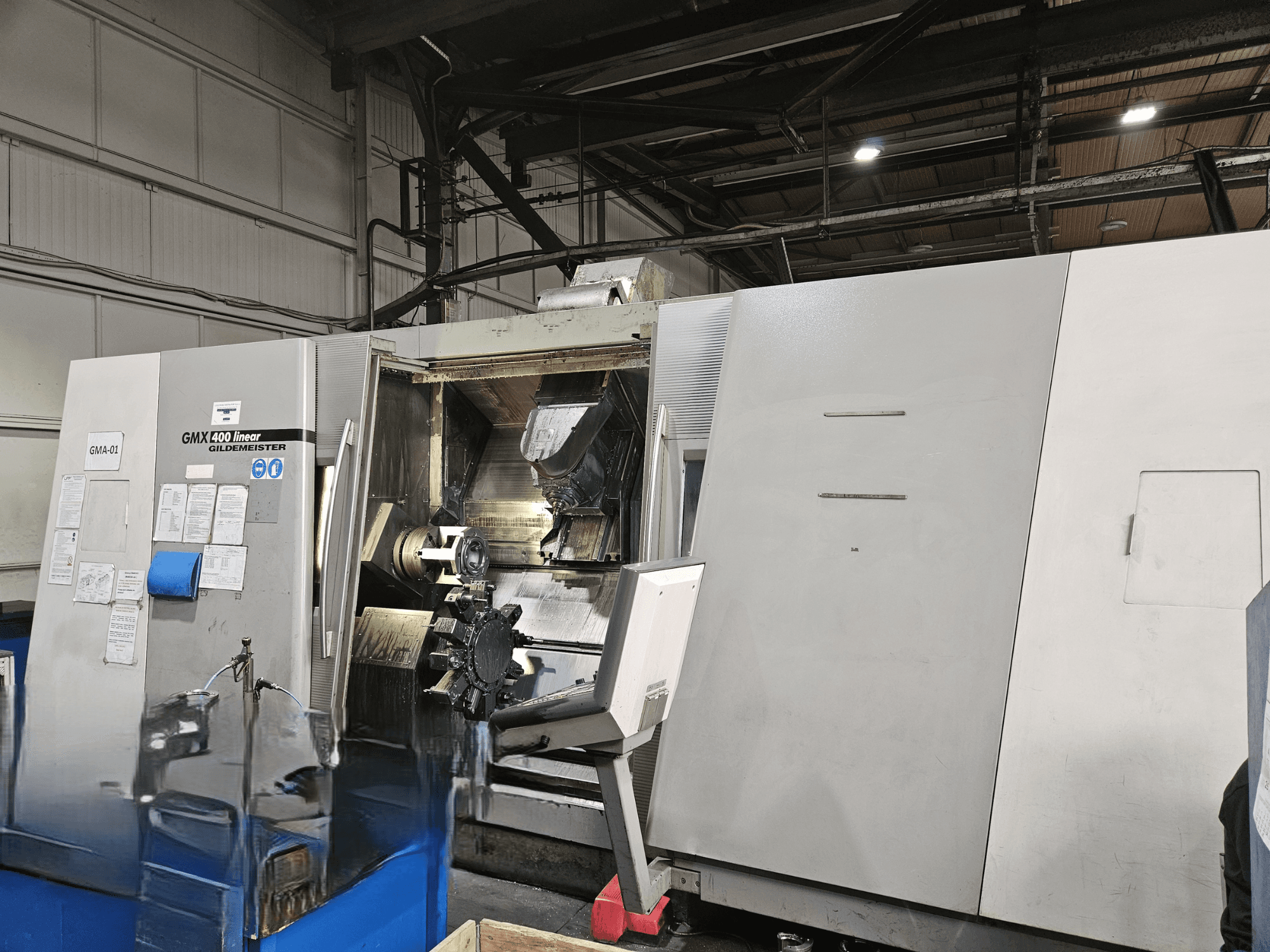

This 7-axis Gildemeister GMX 400 Linear was manufactured in 2005. It features a maximum turning diameter of 640 mm and a turning length of 1585 mm. The machine is equipped with a Siemens Sinumerik 840D Powerline CNC control and offers rapid traverse speeds of 40 m/min in the X-axis. If you are looking to get high-quality turning and milling capabilities, consider the Gildemeister GMX 400 Linear turn-mill centre we have for sale. Contact us for further details.

Overview

brand: DMG
year: 2005
MODEL: GMX 400 Linear
production hours: 53201
application type: Turning
Location: Poland
machine type: Turn-Mill Centre
control unit brand: SIEMENS

Technical Information - DMG GMX 400 Linear

Control Unit

Control Brand: SIEMENS

Movement

Number of Axes: 7
X-axis Travel: 550 mm
Y-axis Travel: 220 mm
Z-axis Travel: 1585 mm

Technical Specification

Counter Spindle: Yes
Driven Tools: Yes
Max. Tool Weight: 10 kg
Spindle Speed: 4000 RPM

Additional Information

B-axis swivel range: ±120°
C-axis resolution: 0.001°
Rapid traverse (X/Y/Z): 40 / 24 / 60 m/min
Maximum turning diameter: 640 mm
Standard turning diameter: approx. 400 mm
Maximum turning length: 1585 mm
Bar capacity: approx. 90–92 mm
Chuck diameter: 250 mm
Counter spindle speed: 4000 rpm
Maximum torque: approx. 600–730 Nm
Milling spindle: Integrated motor spindle (ISM) with B-axis
Milling spindle speed: 12,000 rpm
Milling spindle power: 13.2 / 22 kW
Milling spindle max. torque: approx. 100 Nm
Turret: 12-position driven turret
Tool shank: 40 mm, DIN 69880
Tool length limits: 200–350 mm
Maximum tool diameter: 80–140 mm
Maximum tool projection: 60–70 mm
Connected load: 100 kVA
Additional notes: Linear drive technology; Made in Germany; Machine under power and available for inspection

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
