DMG MORI - CLX 350 V4FR-TUR-DMG-2018-00001

Name: DMG MORI CLX 350 V4
Brand: DMG MORI
SKU: FR-TUR-DMG-2018-00001
Price: 88000 EUR
Availability: InStock

88,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DMG MORI CLX 350 V4 For Sale | gindumac.com

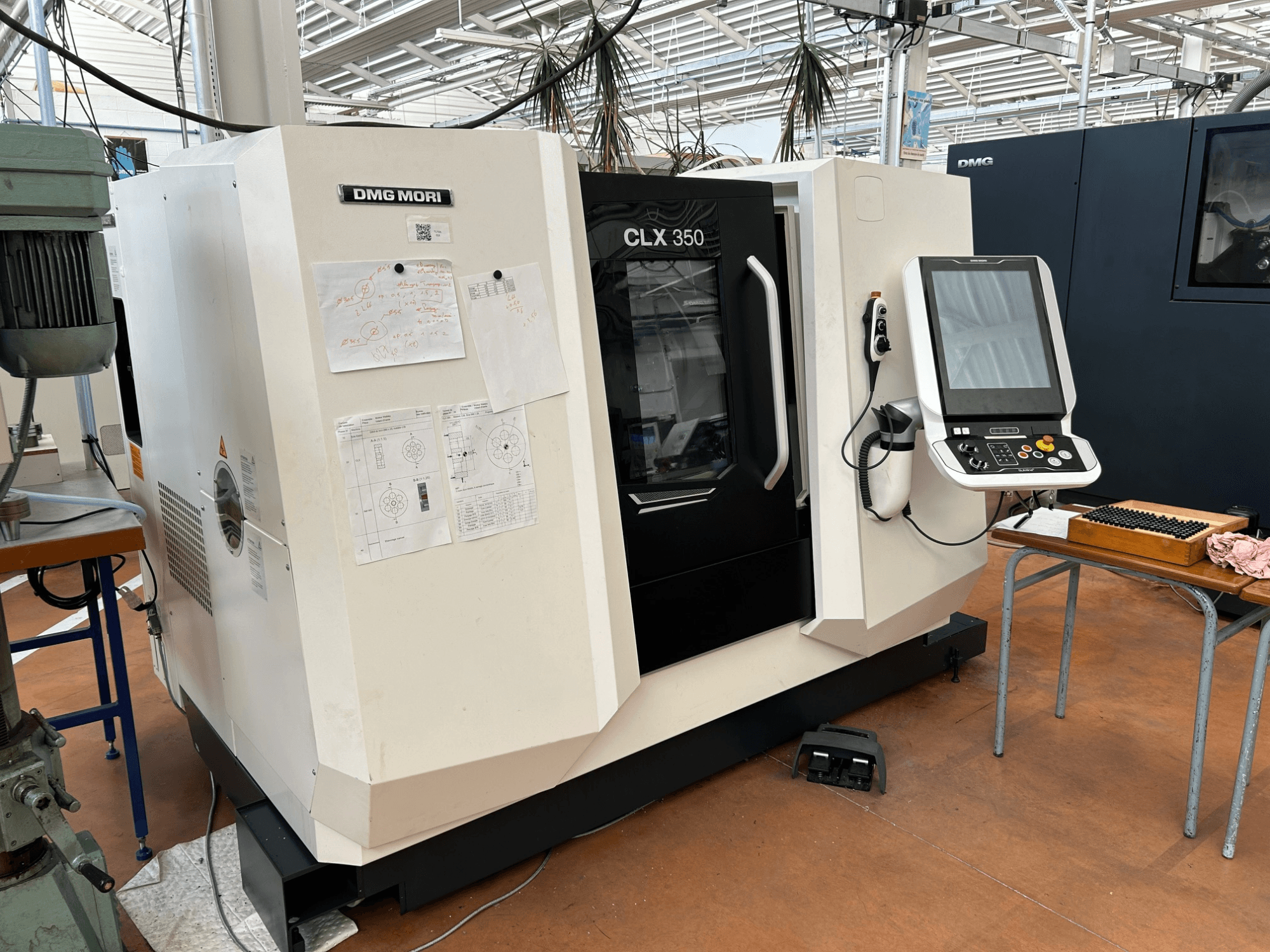

This 4-axis DMG MORI CLX 350 lathe was manufactured in 2018. It features a maximum workpiece diameter of 320 mm and a maximum machining length of 530 mm. The machine is equipped with a Siemens SLIM Line CNC and offers an X-axis travel of 242 mm, Y-axis travel of +/- 40 mm, and Z-axis travel of 540 mm. If you are looking to get high-quality turning capabilities, consider the DMG MORI CLX 350 lathe we have for sale. Contact us for further details.

Overview

brand: DMG MORI
year: 2018
MODEL: CLX 350 V4
production hours: 1821
application type: Turning
Location: France
machine type: Horizontal Turning Machine
control unit brand: SIEMENS

Technical Information - DMG MORI CLX 350 V4

Control Unit

Control Brand: SIEMENS
Control Model: SLIM Line

Movement

Number of Axes: 4
X-axis Travel: 242 mm
Y-axis Travel: 40 mm
Z-axis Travel: 540 mm

Technical Specification

Counter Spindle: No
Driven Tools: Yes
Spindle Speed: 5000 RPM

Additional Information

Maximum workpiece diameter: 320 mm
Maximum machining length: 530 mm
Bar capacity: 65 mm
Spindle hours: 236 h
Maximum spindle speed: 5,000 rpm
Spindle power: 16.5 kW
Spindle torque: 168 Nm
Y-axis: ±40 mm
C-axis: Yes
Driven tools: Yes
Counter spindle: No
Hydraulic tailstock
12-station VDI40 turret with driven tools
15" SlimLine operator panel
Siemens SINUMERIK 840D SL CNC with ShopTurn
USB and Ethernet connectivity
SMW Autoblok BH-D 250/1220 hydraulic 3-jaw chuck
Chuck diameter: 250 mm
Chuck bore: 66 mm
Hard and soft jaw sets included
12 VDI40 tool holders
6 Block Tool boring bar holders with internal coolant
PROGRESSline & Planonlight functions, including cycle time display, remaining time display and parts counter
Chip conveyor: No

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
