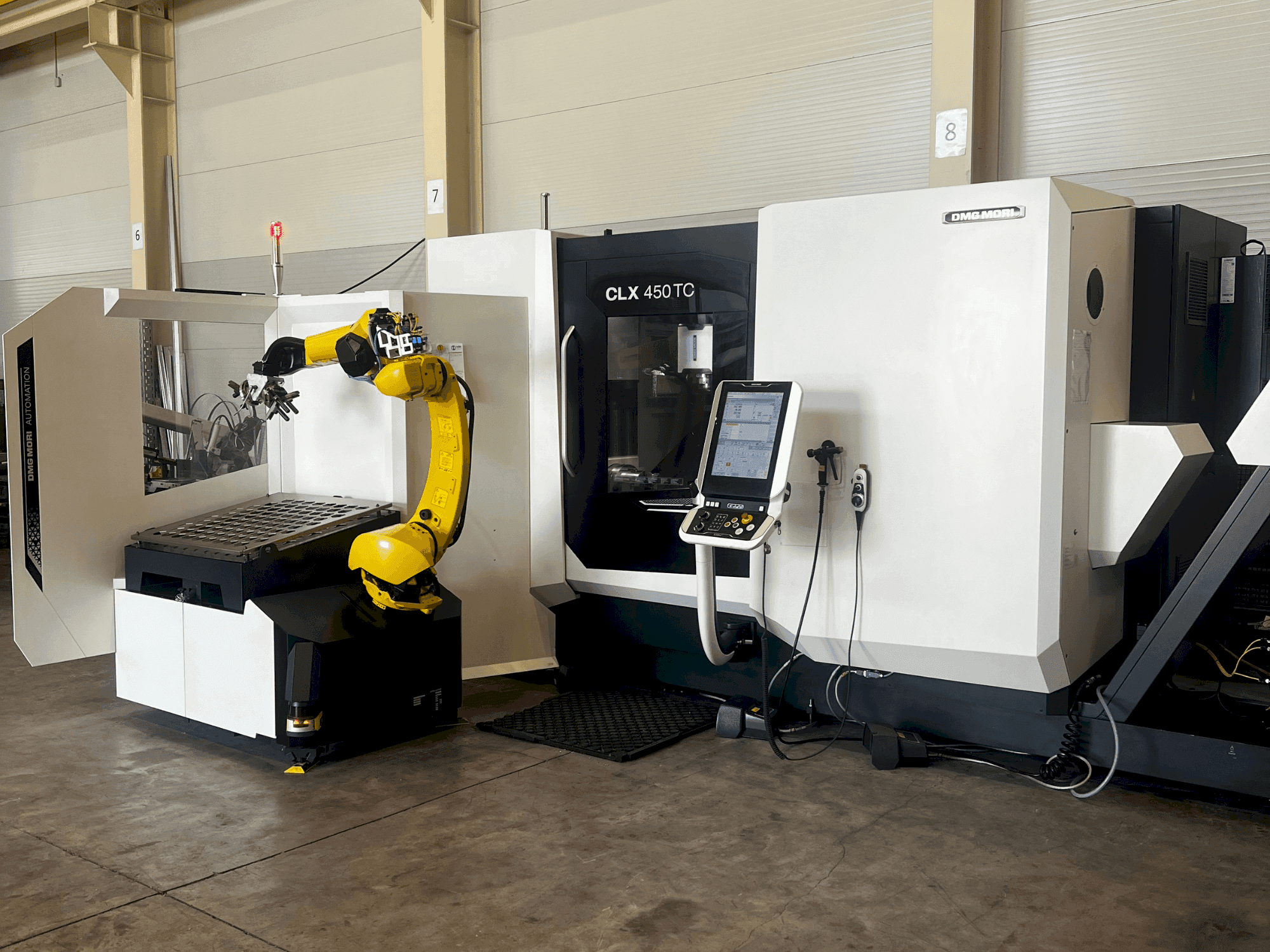

This 5-axis DMG MORI CLX 450 TC with Robo2GO was manufactured in 2024. It features a universal turning/milling center with a main spindle speed of up to 5000 rpm and a milling spindle speed of up to 12000 rpm. The machine includes a B-axis of ±120°, Y-axis travel of ±100 mm, and a 30-fold chain magazine. It's equipped with Siemens 840D sl control for precision. Consider the opportunity to buy this DMG MORI CLX 450 TC with Robo2GO turn-mill centre. Contact us for more information.
Overview
- brand: DMG MORI
- year: 2024
- MODEL: CLX 450 TC + Robo2GO
- application type: Turning
- Location: Hungary
- machine type: Turn-Mill Centre
Technical Information - DMG MORI CLX 450 TC + Robo2GO
Dimensions
- Machine Depth: 3900 mm
- Machine Height: 2470 mm
- Machine Weight: 10000 kg
Movement
- Number of Axes: 5
Technical Specification
- Spindle Power: 14 kW
- Spindle Speed: 5000 RPM
Additional Information
Additional equipment
Dynamic two-pressure clamping for the main and counter spindle
Tailstock function for the counter spindle with foot switch
Robo2GO Flexible workpiece loading and
unloading system
Machine Benefits
Technical Machine Benefits DMG MORI CLX 450 TC
Main spindle as integrated
spindle motor, ISM 65, drive power 14/17 kW
Torque: 275/345 nm
speed range 0-5.000 rpm
Counter spindle a s integrated spindle motor, ISM 65, A2-8
Drive power 14/17 KW(
Torque 275/345 Nm
Speed range 0-5.000 rpm
Partial hollow clamping device Ø67 mm(2.6 in)
C-axis and spindle brake (hydr.)
Slide (Z3), A C servo motor with ball screw, absolute encoder
Turning-/ milling spindle
compactMASTER,drive power 8,8/10,5 kW
speed range 0-12.000 rpm, reception HSK-A 63 DIN 69893
Hollow clamping device: Ø67 mm
Dynamic two-pressure clamping at the control for the main spindle
Absolute, direct measuring systems in X- and Y-axis
B-axis: ±120°
Y-axis: ±100 mm
Chain magazine 60fold, instead o f chain magazine 30fold
Tailstock: hydraulically operated with foot control pedal
Coolant supply through the counter spindle
Siemens 840D sl
Technical documentation
The machine is highly equipped, and the list of options is available upon request.
Technical Benefits Robo2GO:
Flexible workpiece loading and unloading system with a six-axis-industrial-robot
Replaceable workpiece storage incl. workpiece trays:
Max. 8 8 pieces u p t o dia. 60 m m
Max. 2 9 pieces u p t o dia. 125 mm
Max. load o f the tray: 700 kg
Technical documentation
There are each a honeycomb sheet as basic tray and a honeycomb sheet as height-adjustable support up to 130 mm contained
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
