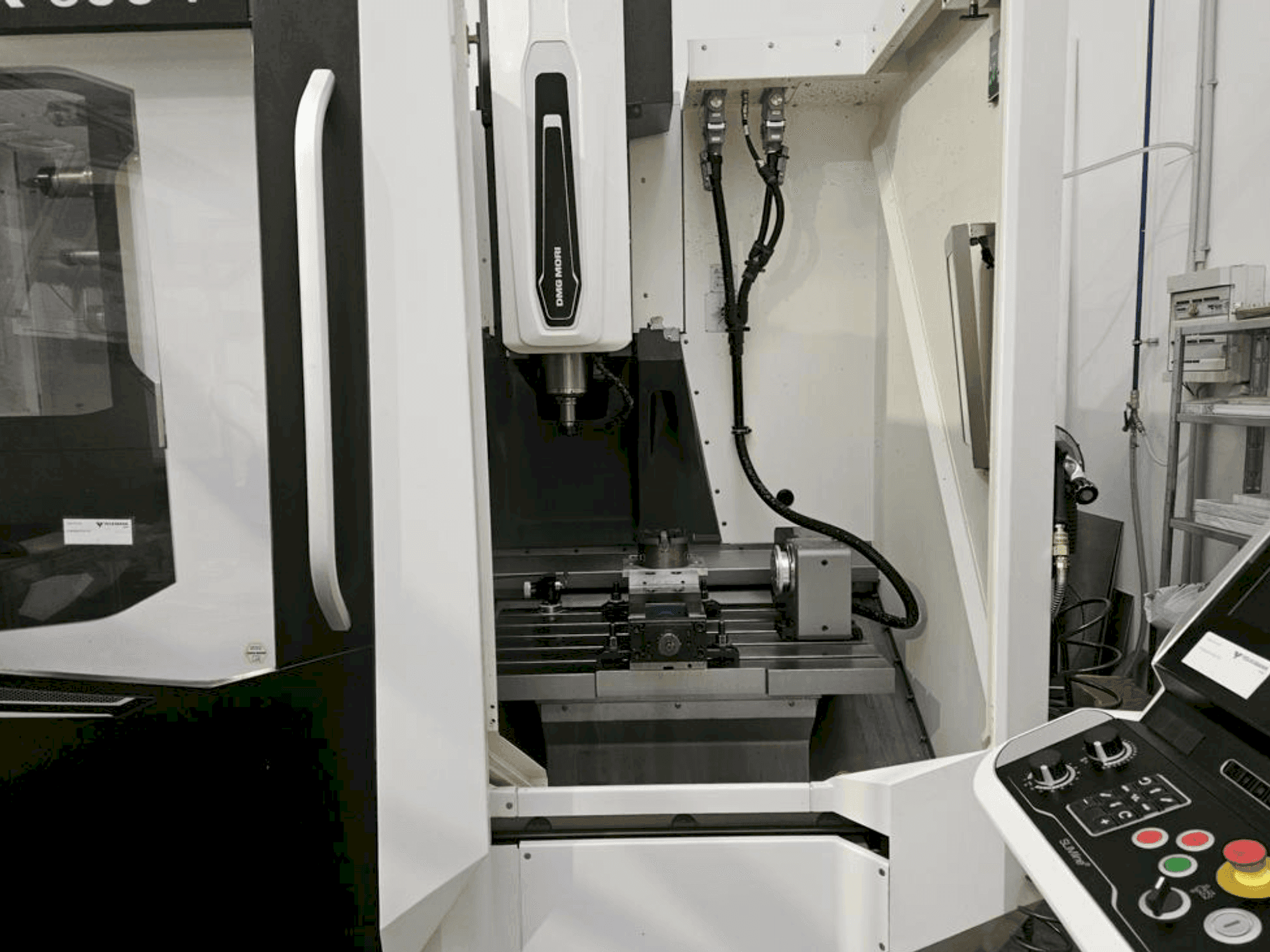

Front view of DMG MORI CMX 600 V  machine

DMG MORI CMX 600 V

DMG MORI - CMX 600 V

2022

99,000 €

gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This DMG MORI CMX 600 V Vertical Machining Centre was manufactured in 2022. It has 4 axes with a NC rotary table (4th axis) from Lehmann with indirect measuring system. The table size is 900 x 560 mm. The machining centre is equipped with a DMG MORI SLIMline® Control based on Siemens and a direct measurement system in X/Y/Z. As extras it comes with chip conveyor (scraper belt, tank capacity: 200l) and a Renishaw touch probe kit for Siemens. See tech specs overview as PDF (DE) attached.

Overview

  • brand: DMG MORI
  • year: 2022
  • MODEL: CMX 600 V
  • production hours: 3071
  • application type: Milling
  • Location: Austria
  • machine type: Machining centers (vertical)
  • availability: Immediately
  • control unit brand: DMG MORI
  • GINDUMAC ID: AT-MIL-DMG-2022-00001

Technical Information

General Data

  • Measurements width: 2859 MM
  • Measurements depth: 3490 MM
  • Measurements height: 2985 MM
  • Machine weight: approx. 5000 kg

Control Unit

  • Brand: DMG MORI
  • Model: SLIMline (SIEMENS)
  • Interface: Multi-Touch Control 19"

Main drive

  • Spindle speed range: 20 - 12000 1/MIN
  • Spindle motor power: 13/9 kW
  • Tool taper: SK 40

Movement

  • X-AXIS Movement: 600 MM
  • Y-AXIS Movement: 560 MM
  • Z-AXIS Movement: 510 MM

Table

  • Outer length: 900 mm
  • Outer width: 560 mm

Tools

  • Number of stations: 30
  • Type of tool holder: SK 40

Media

  • Chip conveyor: Yes

    Additional Equipment

    • - Chip conveyor (scraper belt) // Tank capacity: 200l (left) // Chip Tray
    • - Coolant spray gun
    • - Signal lamp 4-color
    • - Renishaw touch probe kit for SIEMENS control (PP40 touch probe with optical signal transmission)
    • - Tool magazine with 30 tools with double gripper

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Nc rotary table (4th axis) lehmann with indirect measuring system
        • - Rotary table type: ea-510. L
        • - Software preparation for rotary table machining
        • - Tracyl software for machining
        • - Swivel cycle (cycle 800) // clamping torque: 800 nm // max. Speed: 80 rpm // spindle height 150 mm
        • - Rotary table for positioning along the x-axis on the right-hand side of the worktable (for siemens control system)
        • - Rapid traverse linear axis 30 m/min
        • - External coolant blowing belt switchover via m function
        • - Spindle hours: 1231h
      • Qualitative Machine Benefits:
        • - Direct measurement system in x/y/z
        • - Dmg mori cad/cam system siemens nx
        • - Dmg mori connectivity pack
        • - Dmg mori planning & control - sme - pack
        • - Renishaw pp40 3d touch probe
        • - Ots measuring probe for tool measurement
        • - Calibration mandrel with tool holder
        • - Calibration ring
        • - Nc rotary table (4th axis) lehmann ea-510. L
        • - Service camera

      Extra information

      • - Machine will be sold WITHOUT clamping devices and tools // These systems and accessories were supplied by the factory and are fully integrated into the machine.

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
