➤ Used DMG MORI DMC 100U For Sale | gindumac.com

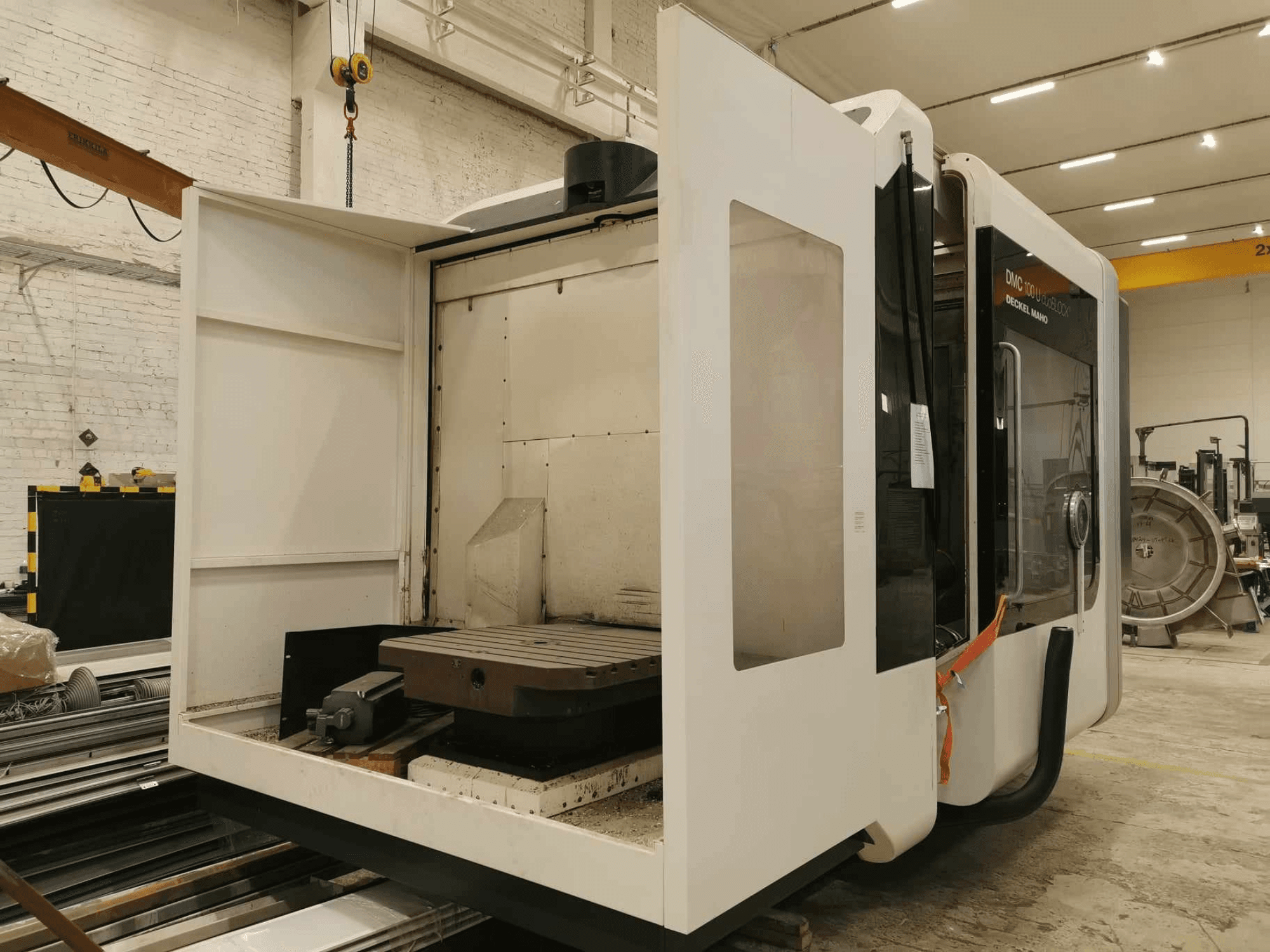

This 5-axis DMG MORI DMC 100U was manufactured in 2012. It features a pallet clamping surface of 1000 × 800 mm, rapid traverse rates up to 60 m/min, and a high-speed spindle at 18,000 rpm. The machine includes a 60-position tool changer and a 980-litre coolant system. Accessories like a chip conveyor, oil mist collector, and BLUM laser tool measurement enhance its functionality. If you are looking to get high-quality milling capabilities consider the DMG MORI DMC 100U machine we have for sale. Contact us for more information.

Overview

brand: DMG MORI
year: 2012
MODEL: DMC 100U
application type: Milling
Location: Estonia
machine type: CNC Milling Machine

Technical Information - DMG MORI DMC 100U

General Data

Machine weight: 21000 kg

Main drive

Spindle speed range: 18000 1/MIN
Number of axis: 5

Movement

X-AXIS Movement: 1000 mm
X-AXIS Rapid traverse: 60 m/min
Y-AXIS Movement: 1250 mm
Y-AXIS Rapid traverse: 60 m/min
Z-AXIS Movement: 1000 mm
Z-AXIS Rapid traverse: 60 m/min

Workpiece

Workpiece weight: 2000 kg

Tools

Type of tool holder: HSK-A63

Additional Information

Working table:
- Number of pallets: 2 (working/preparation area)
- Pallet clamping surface: 1000 × 800 mm
- Pallet weight: 630 kg
Axis travels:
- B: 210°
- C: 360°
Movements:
- Acceleration (X/Y/Z): 7.0 / 6.5 / 6.5 m/s²
- Resolution (X/Y/Z): 0.001 mm
- Position tolerance (X/Y/Z): 0.006 mm
- Position tolerance (A/B/C): 8 / 6 / 5 arcsec
Workpiece capacity:
- Max diameter: 1000 mm
- Max height: 1600 mm
- Max weight: 2000 kg
Spindle:
- Torque: 119 Nm (40% ED)
Tool changer: 60 positions
Coolant system: 980-litre high-pressure through-spindle with paper band filter
Availability: In excellent condition, available for demo (video available)

Additional equipment

7 extra pallets
Chip conveyor
Oil mist collector
Infrared measuring sensor
BLUM laser tool measurement
3D Quick Set preparation
Cooling unit
Air blast through spindle
Maintenance kit (filters, wipers, installation tools)
Full manuals (English, Estonian, and digital copy)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
