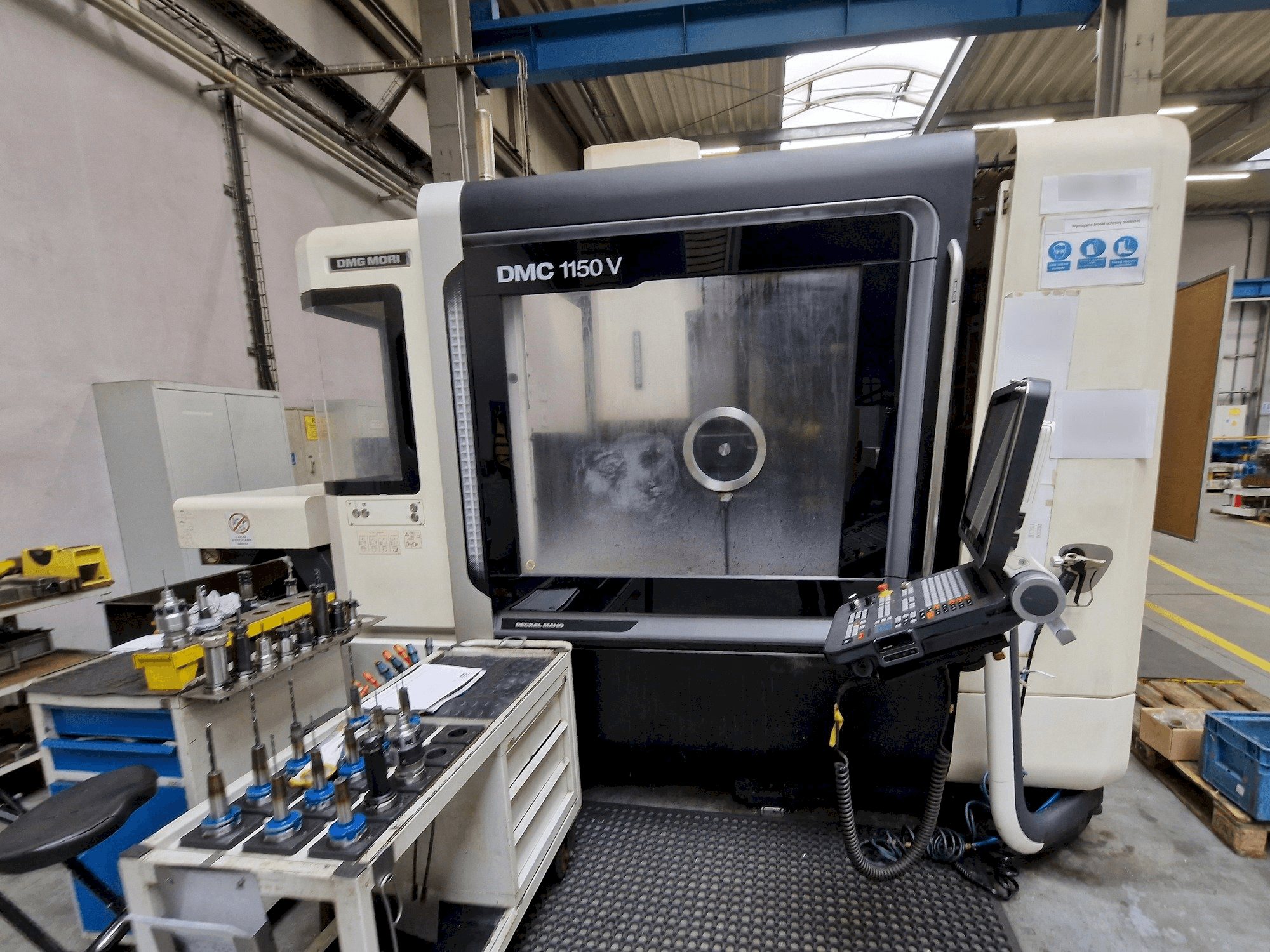

Front view of DMG MORI DMC 1150 V  machine

DMG MORI DMC 1150 V

DMG MORI - DMC 1150 V

2015

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This DMG MORI DMC 1150 V vertical machine center was made in Germany in the year 2015 and has 33753 power hours, of which 15144 are spindle hours. It is equipped with a Heidenhain iTNC 640 control unit and has 3 axis. The machine has a spindle speed of 20 - 18000 rpm, is in very good working condition, is ready for tests, and includes a measuring probe TS649.

Overview

  • brand: DMG MORI
  • year: 2015
  • MODEL: DMC 1150 V
  • production hours: 33753
  • application type: Milling
  • Location: Poland
  • machine type: Machining centers (vertical)
  • availability: Sold
  • control unit brand: Heidenhain
  • GINDUMAC ID: PL-MIL-DMG-2015-00001

Technical Information

Control Unit

  • Brand: Heidenhain
  • Model: iTNC 640

Main drive

  • Spindle speed range: 20 - 18000 1/MIN
  • Spindle motor power: Drive power max 40% on time: 35 kW, Rated power 100%: 25 kW
  • Tool taper: HSK-A63
  • Number of axis: 3

Movement

  • X-AXIS Movement: 1150 mm (longitudinal)
  • Y-AXIS Movement: 700 mm (transverse)
  • Z-AXIS Movement: 550 mm (vertical)

Table

  • Outer length: 1400 mm
  • Outer width: 750 mm
  • TSlots size: 100 mm
  • Table load: 800 kg

    Additional Equipment

    • - Measuring probe TS649

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Loading height (ground - top edge of table): 1000 mm
        • - Feed drives: x,y,z axis ac servomotors: maximum rapid traverse x,y: up to 42 m/min, maximum rapid traverse z: up to 42 m/min
        • - Tool tightening force: 25kn
        • - Tool storage: 30 positions
        • - Maximum tool diameter without free spaces: 80 mm
        • - Maximum tool diameter with free spaces: 130 mm
        • - Maximum tool length from spindle nose: 300 mm
        • - Max. Tool weight with automatic tool changing: 6 kg
        • - Max. Tool weight in storage: 120 kg
      • Qualitative Machine Benefits:
        • - Machine in very good condition, ready for tests
        • - Full documentation available

      Extra information

      • - Tools are not included in the offer

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
