Thank you for your visit
This machine was recently sold. Take a look at similar options or get in touch with us directly.
DMG MORI - DMU 50 3rd GenDE-MIL-DMG-2018-00005
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used DMG MORI DMU 50 3rd Gen For Sale | gindumac.com

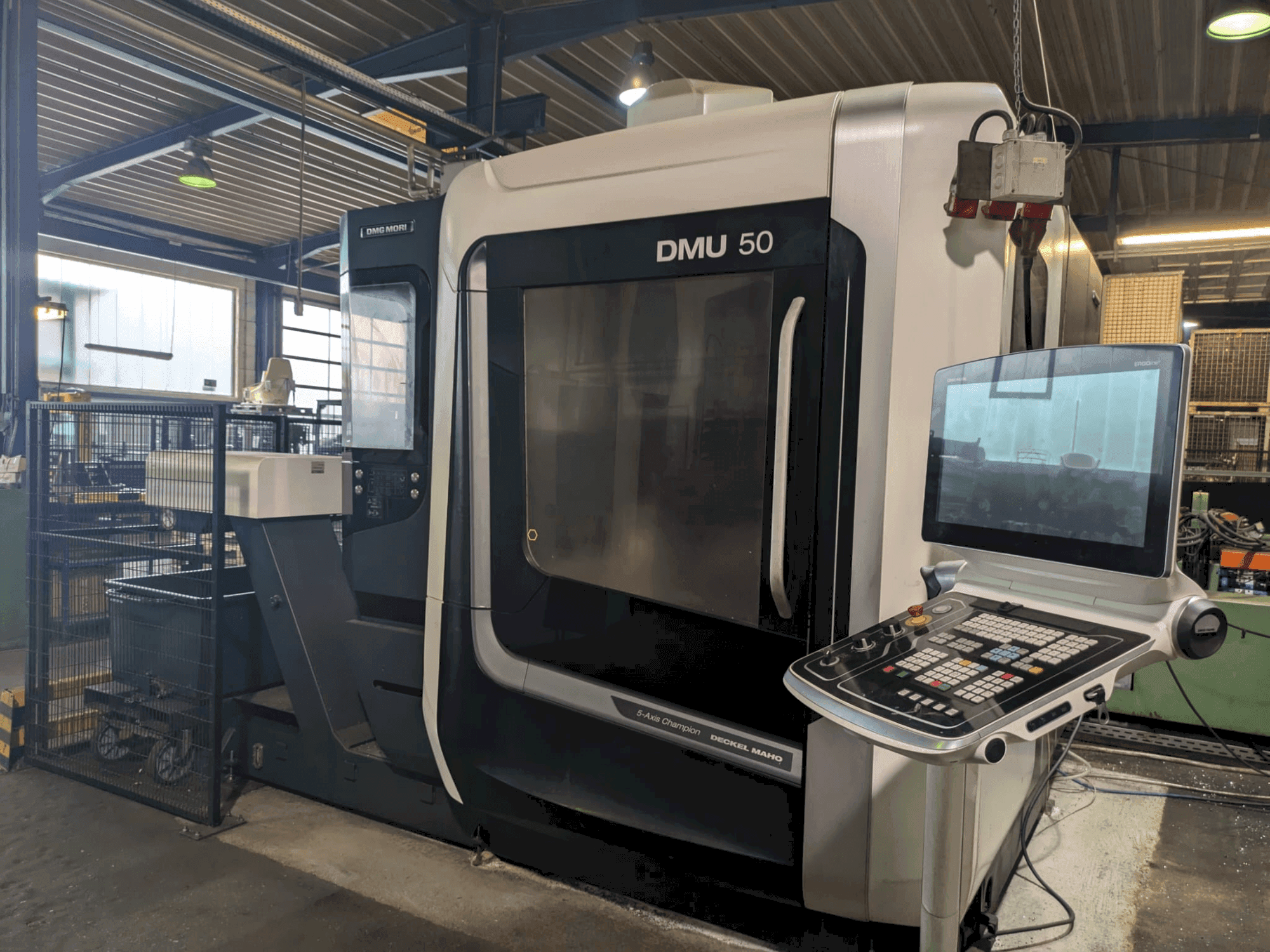

This 5-axis DMG MORI DMU 50 3rd Gen was manufactured in 2018. It features a spindle speed up to 15,000 min−1, a 30-place SK40 tool changer, and a CELOS control system with Siemens 840D sl Operate. The machine includes a swivel rotary table with a clamping surface of D630 x 500 mm and a 360° rotary axis. Consider the opportunity to buy this DMG MORI DMU 50 3rd Gen vertical machining centre. Contact us for more information.
Overview
- brand: DMG MORI
- year: 2018
- MODEL: DMU 50 3rd Gen
- production hours: 1843
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- control unit brand: SIEMENS
Technical Information - DMG MORI DMU 50 3rd Gen
Control Unit
- Control Brand: SIEMENS
Dimensions
- Machine Weight: 2600 kg
Movement
- Number of Axes: 5
- X-axis Travel: 650 mm
- Y-axis Travel: 520 mm
- Z-axis Travel: 475 mm
Technical Specification
- Spindle Speed: 15000 RPM
Additional Information
Tool changer: 30 stations SK40 with setup assistance
Control: CELOS with Siemens 840D sl Operate, 21.5" ERGOline multi-touch
Measuring system: Direct path measuring on X, Y, Z, B, C axes
Swivel rotary table (NC), simultaneous capability
Clamping surface: Ø630 x 500 mm
B-axis swivel range: −35° to +110°
C-axis rotation: 360°
Cooling/working area features:
Active spindle cooler
Coolant/blow-air switchover via M-function
Working area flushing
Safety/options on machine:
Half cabin
MPC Machine Protection Control (quick shutdown)
Preparation for 3D quickSET toolkit (software option included)
Additional equipment (accessories)
Scraper-type chip conveyor (not suitable for unmanned operation)
Internal coolant supply (IKZ): paper band filter, 40 bar / 23 l/min, 600 l tank
Oil and emulsion mist separator (mechanical)
Infrared measuring probe: Heidenhain TS 649 DMG
Tool preset device (available as an option)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
