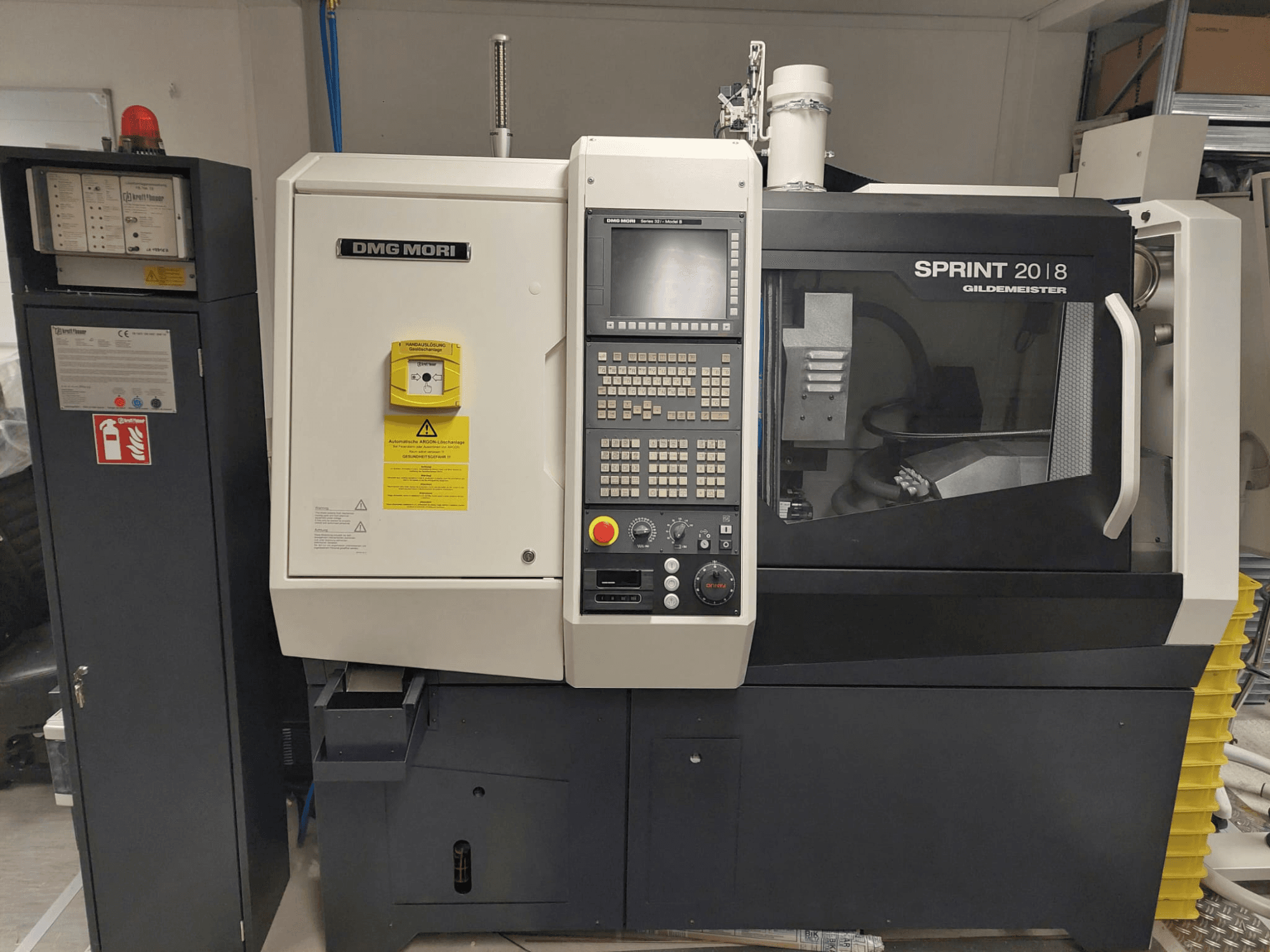

This 6-axis DMG MORI Gildemeister Sprint 20/8 was manufactured in 2019. It features a main spindle with a maximum diameter of 20 mm and a speed of 10,000 rpm, along with a sub-spindle for enhanced machining capabilities. With a rapid traverse of 32 m/min and a robust tool capacity of 25 positions, this machine is ideal for magnesium machining. If you are looking to get high-quality turning capabilities, consider the DMG MORI Gildemeister Sprint 20/8 swiss type turning machine. Contact us for further details.
Overview
- brand: DMG MORI
- year: 2019
- MODEL: Gildemeister Sprint 20/8
- production hours: 414
- application type: Turning
- Location: Germany
- machine type: Swiss Type Turning Machine
- control unit brand: FANUC
Technical Information - DMG MORI Gildemeister Sprint 20/8
Control Unit
- Control Brand: FANUC
- Control Model: 32i
Dimensions
- Machine Weight: 2400 kg
Movement
- Number of Axes: 6
Technical Specification
- Counter Spindle: Yes
- Max. Bar Diameter: 20 mm
- Spindle Power: 2.2 kW
- Spindle Speed: 10000 RPM
Additional Information
Footprint: 1900 x 1000 mm
Dismantling / removal: By buyer
Forklift: By buyer
Software: Fanuc 32i-B
Application: Magnesium machining
Power-on time: 414 h
Operating hours (program run): 110 h
Control
Programming channels: 2
NC memory: 0.5 MB
Max. programs: 1000
Monitor: 10.4 inch TFT
Interfaces: USB, Ethernet, PCMCIA
Axes
Stroke X1: 50 mm
Stroke Y1: 325 mm
Stroke Y2: 85 mm
Sub spindle stroke X2: 220 mm
Main spindle stroke Z1: 60 mm
Sub spindle stroke Z2: 170 mm
Rapid traverse: 32 m/min
Acceleration: 5 m/s²
Feed force Z1 / Z2 / X1 / X2: 150 daN
Feed force Y1: 370 daN
Feed force Y2: 220 daN
Sub spindle
Max. diameter: 20 mm
Max. speed: 10000 rpm
Power: 1.5 kW
Tooling
Tool positions: 25
Tool holder: 12 x 12 mm
Coolant
Coolant: Mineral oil, max. 32 cSt at 40 °C
Optional coolant: Emulsion
Coolant tank: 165 l
Coolant pump flow: 90 l/min
Coolant pump pressure: 0.7 bar
Electrical data
Total power: 12 kVA
Operating voltage: 400 V ±10%
Frequency: 50 Hz
Fuse: 63 A
Control voltage: 24 V
Protection / operating conditions
Machine protection: IP67
Cabinet protection: IP54
Noise level: < 75 dBA
Air consumption: 175 NL/min
Air consumption with emulsion: 360 NL/min
Ambient temperature: +15 to +35 °C
Humidity: max. 75%
Installation altitude: max. 1000 m
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
