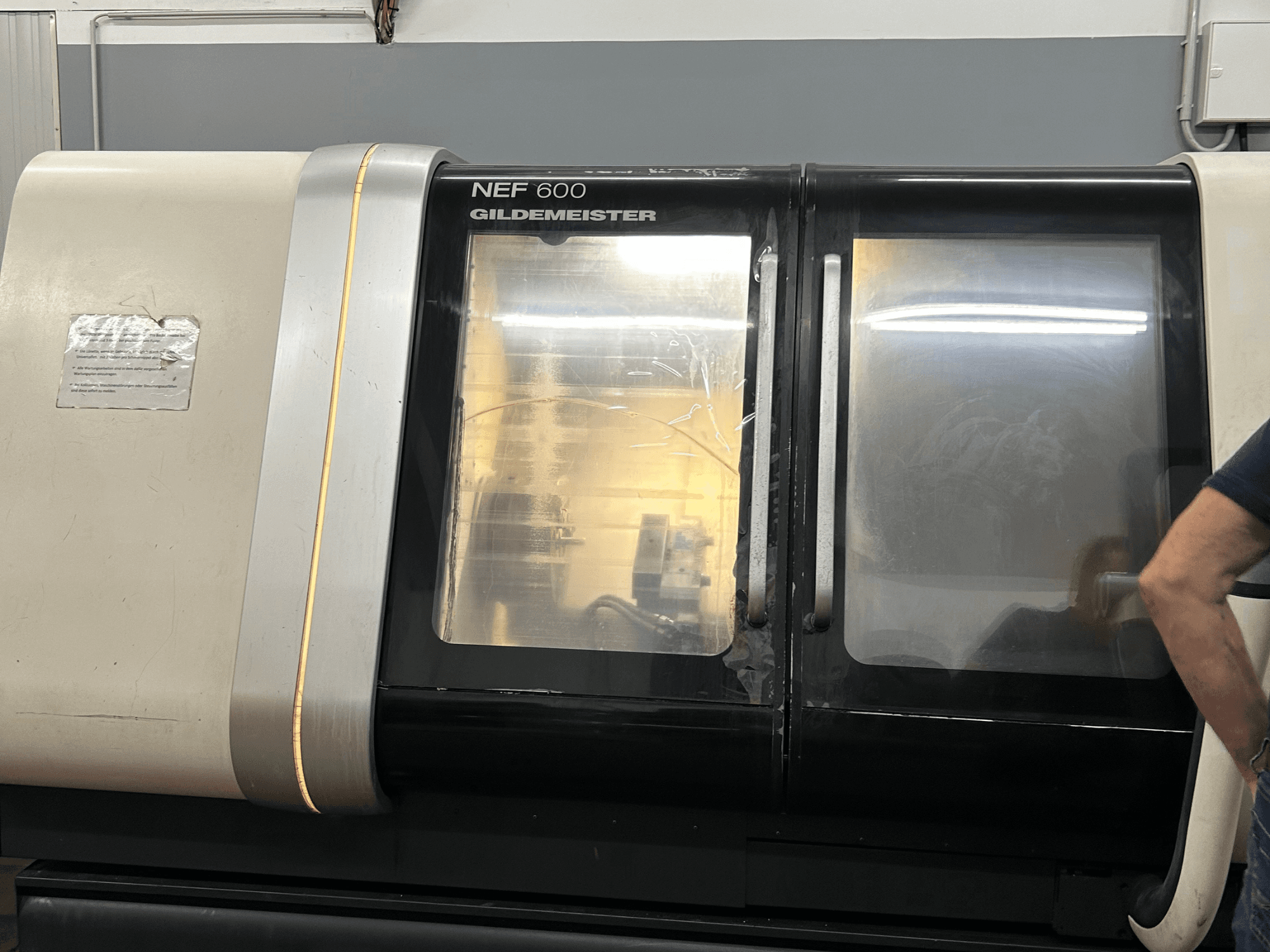

This 3-axis DMG NEF 600 was manufactured in 2012. It features a turning length of 1200 mm and a powerful integrated spindle motor with a maximum spindle speed of 3500 rpm. The machine includes a 12-station disc turret and live tooling capabilities for enhanced versatility. If you are looking to get high-quality turning capabilities, consider the DMG NEF 600 horizontal turning machine we have for sale. Contact us for further details.
Overview
- brand: DMG
- year: 2012
- MODEL: NEF 600
- production hours: 10779
- application type: Turning
- Location: Germany
- machine type: Horizontal Turning Machine
- control unit brand: SIEMENS
Technical Information - DMG NEF 600
Control Unit
- Control Brand: SIEMENS
- Control Model: 840D SL
Dimensions
- Machine Weight: 6000 kg
Movement
- Number of Axes: 3
- X-axis Travel: 362 mm
- Z-axis Travel: 1250 mm
Technical Specification
- Counter Spindle: No
- Driven Tools: Yes
- Number of Tools: 12
- Spindle Power: 28 kW
- Spindle Speed: 3500 RPM
Additional Information
Turning length: 1200 mm
Main spindle: Integrated spindle motor
Turret: 12-station disc turret
Tool holder standard: VDI 40
C-axis brake: Hydraulic
Tailstock: Automatic
Coolant system: Coolant equipment with chip pan
Operating software: ShopTurn
Control panel: ERGOline operating panel
CAD reader: External PC compatible
Hydraulic unit: Included for clamping device and steady rest
Hollow clamping device: Hydraulic
Max draw tube diameter: 95 mm
Coolant spray gun: Included
Chip conveyor: Right side discharge
Chip conveyor discharge height: 1250 mm
Steady rest type: Self-centering steady rest
Steady rest range: Ø 50–200 mm
Chuck type: 3-jaw power chuck
Chuck model: ROTA-NCK plus
Tool spindle 1: Angled 90° live tool holder
Tool spindle 2: Straight 0° live tool holder
Tool spindle application: Drilling, milling and tapping
Tool holder shaft standard: DIN 69880-40
Electrical cabinet cooling unit: Up to 40°C
DMG Netservice onboard: Installed
OPTIONAL
approximately 100 different tool holders (VDI holders)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
