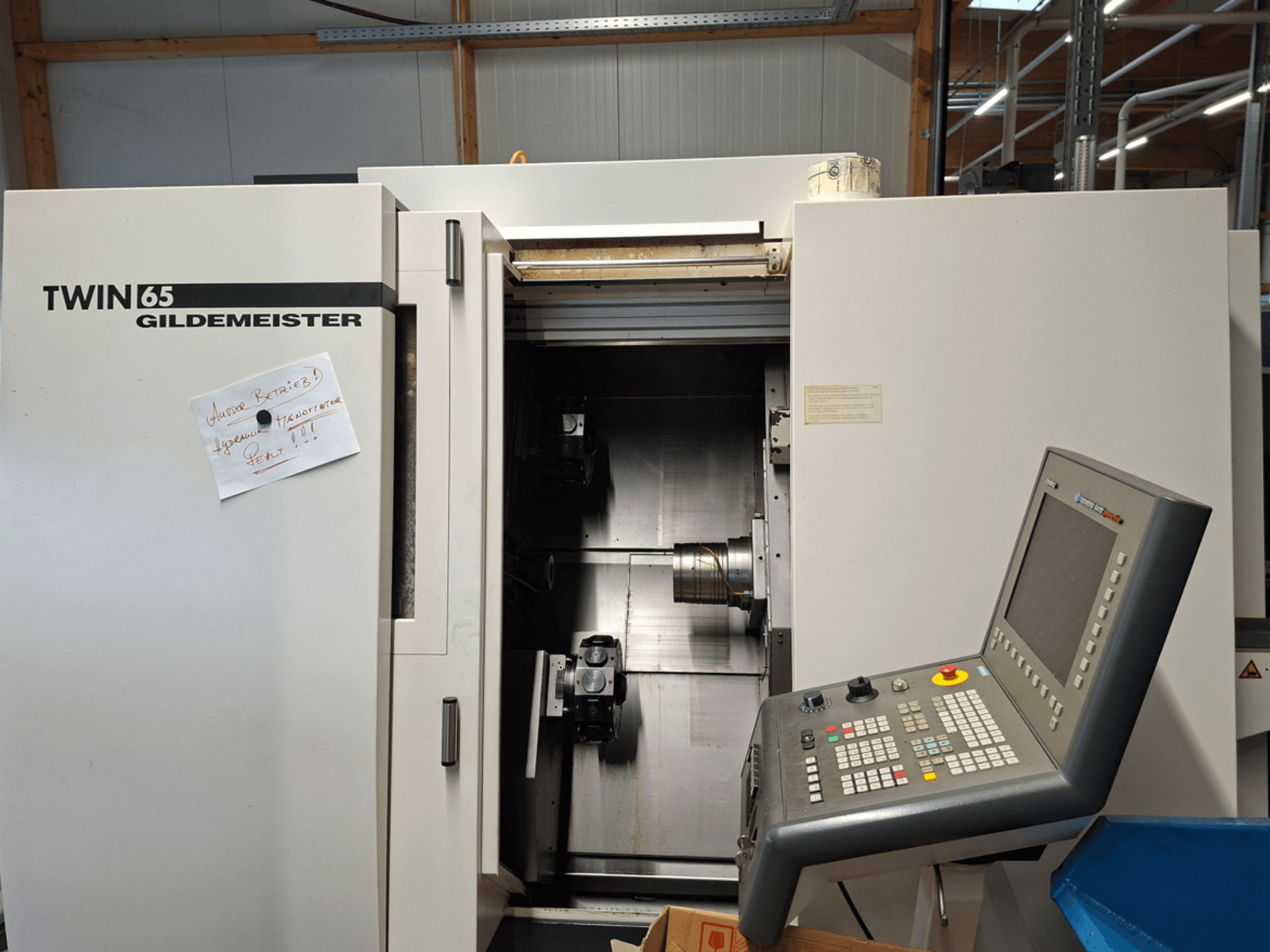

Gildemeister TWIN 65 CNC lathe, front view showing control panel and partially open chamber with visible machinery.

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DMG TWIN 65 Rg1

Photo Gallery

DMG - TWIN 65 Rg1AT-TUR-DMG-2013-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DMG TWIN 65 Rg1 For Sale | gindumac.com

This 6-axis DMG TWIN 65 Rg1 was manufactured in 2013, featuring twin-spindle turning capabilities with CNC control 840D powerline. It includes two 12-station star turrets, main and counter spindles, Y-axis, and a chip conveyor. The machine offers a spindle speed range up to 5600 rpm and a chuck diameter of 150 mm. Consider the opportunity to buy this DMG TWIN 65 Rg1 horizontal turning machine. Contact us for more information about this machine.

Overview

brand: DMG
year: 2013
MODEL: TWIN 65 Rg1
production hours: 37217
application type: Turning
Location: Austria
machine type: Horizontal Turning Machine
control unit brand: SIEMENS

Technical Information - DMG TWIN 65 Rg1

Control Unit

Control Brand: SIEMENS
Control Model: Sinumerik 840D

Dimensions

Machine Depth: 2810 mm
Machine Height: 2050 mm
Machine Weight: 5300 kg

Movement

Number of Axes: 6

Technical Specification

Spindle Power: 20 kW
Spindle Speed: 5000 RPM

Additional Information

Configuration/features:
- 2 cross slides
- 2 star turrets, 12 stations each, with live tooling
- Main and counter spindles
- 2 tool drives
- 2 C-axes and 1 Y-axis
Left spindle (main):
- Chuck diameter: 150 mm
- Spindle flange: 140 h5 mm
- Spindle bore: 79 mm
- Front bearing diameter: 165 mm
- Power: 15 kW (100% ED) / 20 kW (40% ED)
- Torque: 120 Nm (100% ED) / 160 Nm (40% ED)
- Speed range: 25–5600 rpm
Right spindle (counter/sub):
- Chuck diameter: 150 mm
- Spindle flange: 140 h5 mm
- Spindle bore: 79 mm
- Front bearing diameter: 165 mm
- Torque: 120 Nm (100% ED) / 160 Nm (40% ED)
Axes/travels:
- Slide 1: X 220 mm, Z 320 mm, Y ±30 mm
- Slide 2: X 120 mm, Z 345 mm
- Slide 3: Travel 145 mm
Turrets/tooling:
- Turret 1: 12 stations, VDI 25 (DIN 69880), live tooling up to 6000 rpm, 3.8 kW (40% ED)
- Turret 2: 12 stations, VDI 25 (DIN 69880), live tooling up to 6000 rpm, 3.8 kW (40% ED)
Equipment/options on machine:
- Differential clamping for main spindle
- Differential clamping for counter spindle
Paint/enclosure (Gildemeister standard):
- Machine enclosure and work area door: Calcite white (RAL 9010)
- Chip conveyor: Titanium gray (RAL 7016)
- Chip conveyor hood: Calcite white (RAL 9010)
- Machine base and control cabinet: Titanium gray (RAL 7016)

Additional equipment

Chip conveyor (with hood)
Bar processing package RG 1:
- Workpiece pick-up device with NC-controlled carriage
- Hydraulically operated gripper arm, pneumatically operated gripper
- 1 set of gripper jaws (blanks)
- Conveyor belt
- Capacity: Ø 6–65 mm, length approx. 300 mm; max. 3.5 kg (4.5 kg for TWIN 65)
Preparation/connection for bar feeder or bar feeder magazine
Coolant spray gun
DMG indicator light, 4-way (stack light)
Electrical/mechanical connection for oil mist separator
Automatic sliding hood operation
EDS pressure switch for clamping device
DMG Netservice (on-board)
“Green light for your machine” pre-installed on the control unit (status/indicator)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
